Description

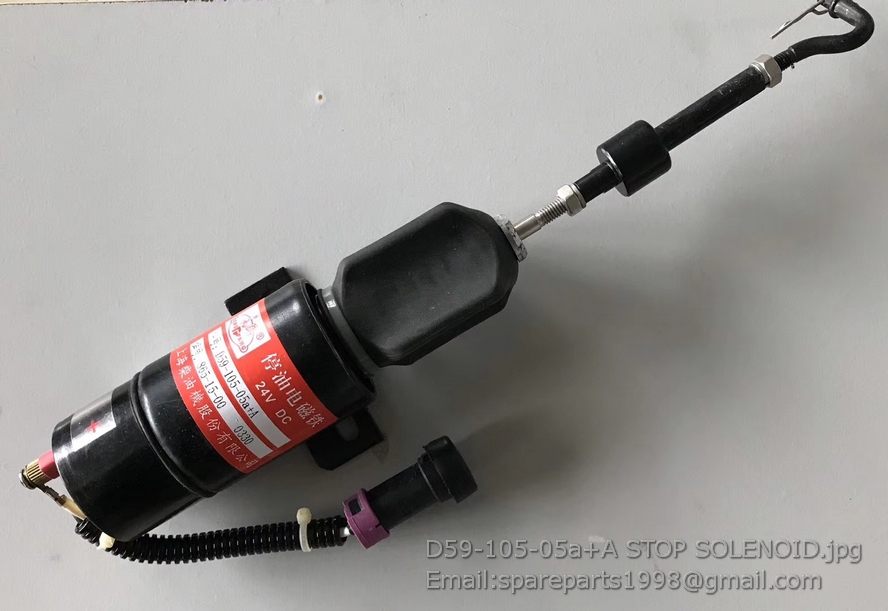

D59-105-05a+A STOP SOLENOID

19 Y480G-01103 碗形塞片(Ф25) Bowl-shaped plug piece(Ф25) 3
20 Y480G-03106 碗形塞片(Ф20) Bowl-shaped plug piece(Ф20) 3
21 YND485Q-03105 喷油器镶套 Injector part 4
22 GB/T93-1987 垫圈 8 Washer 8 26
23 YD480-03300 前吊环焊接件 Front hoisting ring weldment 1
24 GB/T5783-2000 螺栓 M8×20 Bolt M8×20 6
25 Y480G-03107 堵塞(Ф6) Stopper(Ф6) 1
26 Y480G-01109 碗形塞片(Ф44) Bowl-shaped plug piece(Ф44) 1
27 YD480-03022 螺母 Nut 8
28 GB898-88 螺柱 A M8×30 Stud A M8×30 8
29 YND485Q-03013 进气管垫片 Intake pipe gasket 4
30 YD480-03012 后吊环 Rear hoisting ring 1
31 YD480-03103 进气门座 Intake valve seat 4
32 YD480-03014 进气门 Intake valve 4
33 GB894.1-86 挡圈 19 Check ring 19 2
34 Y480G-03208 摇臂衬套 Rocker arm bush 8
35 Y485-03201 气门间隙调整螺钉 Valve clearance adjusting screw 8
36 Y480G-03203 气门摇臂 Valve rocker arm 8

37 YD480-03202 摇臂轴支座 Rockshaft carrier 3
38 Y480G-03204 摇臂轴弹簧 Rockshaft spring 3
39 YD480-03208 摇臂轴螺塞 Rockshaft plug 2
40 Y480G-03205 摇臂轴 Rockshaft 1
41 YD480-03207 摇臂轴后支座 Rockshaft rear carrier 1
42 GB/T848-2002 垫圈 6-140HV Washer 6-140HV 1
43 Y480G-03206 摇臂轴定位螺钉 Rockshaft locating screw 1
44 GB/T6171-2000 螺母 M8×1 Nut M8×1 8
45 GB/T5782-2000 螺栓 M8×55 Bolt M8×55 4
46 YND485Q-03005 气缸盖罩垫片 Cylinder head bonnet gasket 1
47 YND485Q-03004 气缸盖罩壳 Cylinder head bonnet 1
48 Y480G-03003a 加油口盖垫片 Filler cap gasket 1
49 Y480G-03002 加油口盖 Filler cap 1
50 GB923-88 盖型螺母 M8 Cap nut M8 4
51 YD480-03021 双头螺柱 Double
52 GB/T5783-2000 螺栓 M8×25 Bolt M8×25 8
53 YD480-03023 标牌 Name plate 1
54 GB827-86 铆钉 2×5 Rivet 2×5 4

1 YD480-04001 第一道气环 Top compression ring 4
2 Y480G-04002 第二、三道气环 2nd、3rd compression 4
3 YD480-04100 油环部件 Oil ring unit 4
4 GB893.1-86 孔用弹性挡圈 28 Circoip for hole 28 8
5 YD480-04005 活塞 Piston 4
6 Y485-04202 连杆 Connecting rod 4
7 Y480G-04003a 连杆轴瓦 Connecting rod bearing shell 4
8 Y480G-04203a 连杆盖 Connecting rod cap 4
9 Y485-04201 连杆衬套 Connecting rod bush 4
10 Y480G-04204 连杆螺栓 Connecting rod bolt 8
11 YD480-04004 活塞销 Piston pin 4
