Description

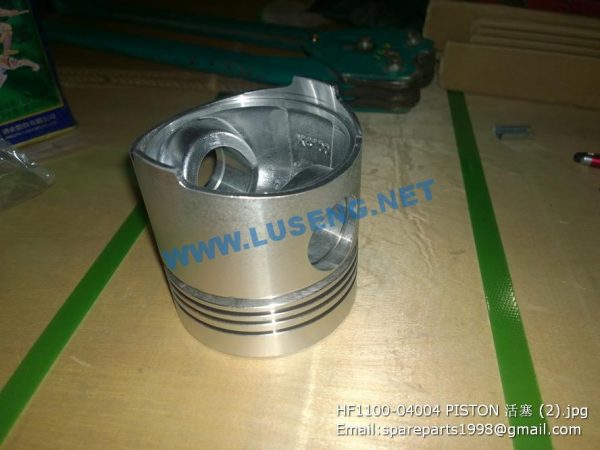

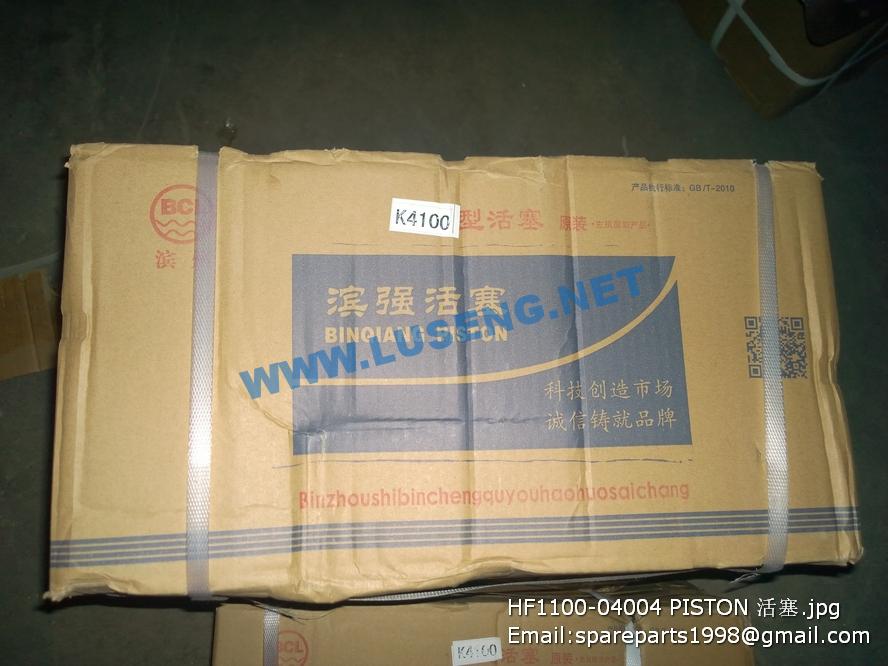

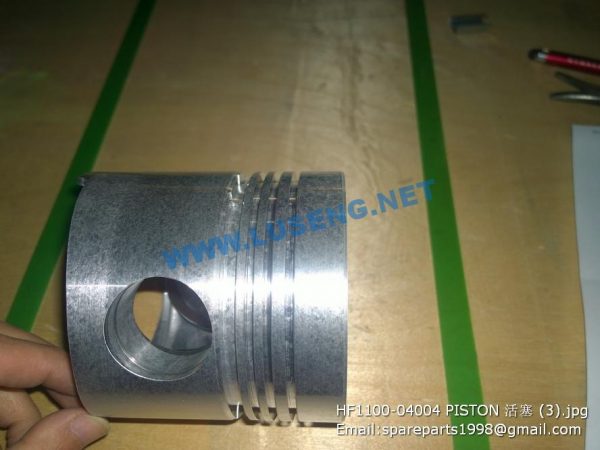

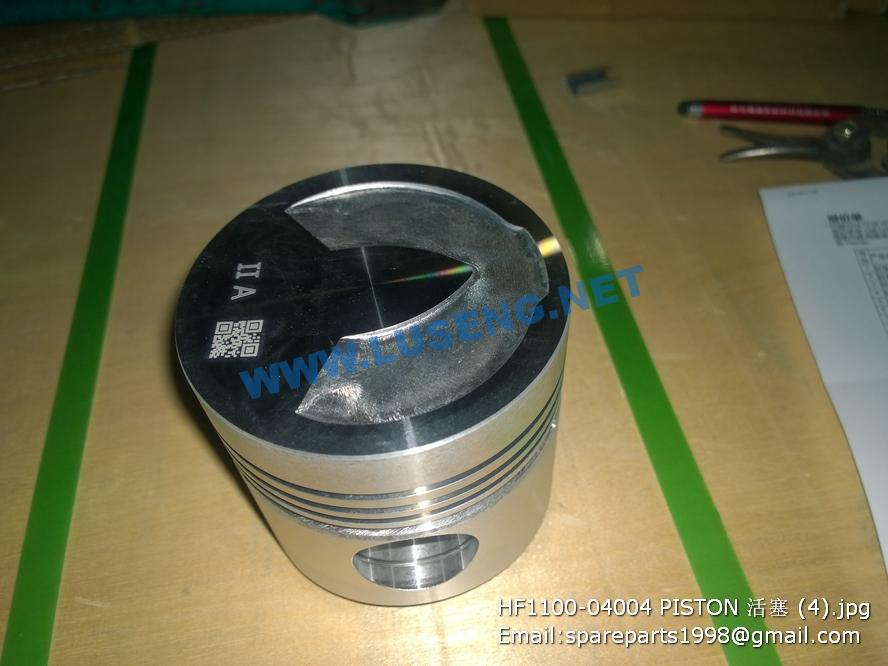

HF1100-04004 PISTON HUAFENG 4100 SPARE PARTS
| NT855 ENGINE PARTS | ||||||
| NO. | PRODUCT | PART NO. | UNIT | QTY | ORGIN | ORGIN |
| 1 | BEARING,MAIN | 3801260 | PC | 1 | US | US |
| 2 | BEARING,CON ROD | 214950 | PC | 1 | US | US |
| 3 | LINER,CYLINDER | 3055099 | PC | 6 | US | US |
| 4 | SEAL,LINER CYLINDER | AR51477 | PC | 6 | US | US |
| 5 | PISTON | 3017348 | PC | 6 | US | US |
| 6 | PISTON/MAIRINE | 3017349 | PC | 6 | US | US |
| 7 | PISTON/G4 | 3048808 | PC | 6 | US | US |
| 8 | RING,PISTON | 3803471 | PC | 6 | US | US |
| 9 | PIN,PISTON | 191970 | PC | 6 | US | US |
| 10 | PING,RETAINING | 175755 | PC | 12 | CCEC | CCEC |
| 11 | ROD,ENGINE CONNECTING | 3418500 | PC | 6 | CCEC | CCEC |
| 12 | BUSHING | 187420 | PC | 6 | US | US |
| 13 | BOLT,CONNECTING ROD | 219153 | PC | 12 | CCEC | CCEC |
| 14 | NOZZLE,PISTON COOLING | 3013591 | PC | 6 | US | US |
| 15 | SUPPORT,CAMSHAFT THRUST | 3067568 | PC | 4 | US | US |
| 16 | CAMSHAFT | 3042568 | PC | 1 | US | US |
| 17 | CAMSHAFT | 3025517 | PC | 1 | US | US |
| 18 | CAMSHAFT | 3025518 | PC | 1 | US | US |
| 19 | SUPPORT | 215233 | PC | 1 | CCEC | CCEC |
| 20 | SEAL,OIL | 211253 | PC | 1 | US | US |
| 21 | SEAL,OIL | 3020186 | PC | 1 | US | US |
| 22 | SEAL,OIL | 3020185 | PC | 1 | US | US |
| 23 | Cylinder HEAD | 3418529 | PC | 3 | US | US |
| 24 | SCREW,CYLINDER HEAD CAP | 3013623 | PC | 3 | CCEC | CCEC |
| 25 | Cylinder head/circle | 3418678 | PC | 3 | US | US |
| 26 | HEAD,CYLINDER | 3007716 | PC | 3 | US | US |
| 27 | COLLET,VALVE | 127554 | PC | 48 | CCEC | CCEC |
| 28 | VALVE,INTAKE | 135957 | PC | 12 | CCEC | CCEC |
| 29 | VALVE,EXHAUST | 145701 | PC | 12 | CCEC | CCEC |
| 30 | VALVE,EXHAUST | 3040830 | PC | 12 | US | US |
| 31 | GUIDE,VALVE SPRING | 170296 | PC | 24 | CCEC | CCEC |
| 32 | GUIDE,VALVE SPRING | 3042745 | PC | 24 | CCEC | CCEC |
| 33 | GUIDE,VALVE CROSSHEAD | 123558 | PC | 12 | CCEC | CCEC |
| 34 | EXHAUST,VALVE | 127930 | PC | 12 | US | US |
| 35 | INSERT,VALVE | 200354 | PC | 12 | US | US |
| 36 | GUIDE,VALVE STEM | 3006456 | PC | 24 | US | US |
| 37 | SLEEVE,INJECTOR | 3011934 | PC | 3 | US | US |
| 38 | CROSSHEAD,VALVE | 3028293 | PC | 12 | CCEC | CCEC |
| 39 | CROSSHEAD,VALVE | 3028293 | PC | 12 | CCEC | CCEC |
| 40 | CONNECTION,FUEL CROSSOVER | 147100 | PC | 2 | CCEC | CCEC |
| 41 | ROD,PUSH | 3046420 | PC | 12 | CCEC | CCEC |
| 42 | ROD,PUSH | 3046430 | PC | 6 | CCEC | CCEC |
| 43 | SCREW,SLOTTED SET | 168306 | PC | 18 | CCEC | CCEC |
| 44 | NUT,REGULAR HEXAGON | S212 | PC | 18 | CCEC | CCEC |
| 45 | GASKET,ROCKER LEVER COVER | 3067459 | PC | 3 | US | US |
| 46 | GASKET,RKR LEVER HOUSING | 3017750 | PC | 3 | US | US |
| 47 | CORE,COOLER | 3412285 | PC | 1 | CCEC | CCEC |
| 48 | KIT,OIL COOLER SEAL | 3801199 | PC | 1 | US | US |
| 49 | VALVE,BYPASS | 3023512 | PC | 1 | US | US |
| 50 | GASKET PAN,OIL | 3032861 | PC | 1 | US | US |
| 51 | LUB OIL PUMP | AR10172 | PC | 1 | US | US |
| 52 | LUB OIL PUMP | 3821579 | PC | 1 | US | US |
| 53 | LUB OIL PUMP | AR9835 | PC | 1 | US | US |
| 54 | HOSE,FLEXIBLE | 3655112 | PC | 1 | CCEC | CCEC |
| 55 | HOSE,FLEXIBLE | AS20031 | PC | 1 | CCEC | CCEC |
| 56 | WATER PUMP | 3022474 | PC | 1 | US | US |
| 57 | WATER PUMP | 3801708 | PC | 1 | US | US |
| 58 | KIT,WATER PUMP REPAIR (MAJOR) | 3801712 | PC | 1 | US | US |
| 59 | TENSIONER,BELT | AR45189 | PC | 1 | CCEC | CCEC |
| 60 | BELT,V RIBBED | 217638 | PC | 1 | US | US |
| 61 | THERMOSTAL | 3076489 | PC | 1 | CCEC | CCEC |
| 62 | SEAL,THERMOSTAT | 186780 | PC | 1 | CCEC | CCEC |
| 63 | CORE,AFTERCOOLER | 3028997 | PC | 1 | CCEC | CCEC |
| 64 | CORE,AFTERCOOLER | 3028997 | PC | 1 | CCEC | CCEC |
| 65 | HOSE,INTAKE | 202994 | PC | 1 | CCEC | CCEC |
| 66 | CLAMP,T BOLT | 208326 | PC | 2 | CCEC | CCEC |
| 67 | GASKET,INTAKE MANIFOLD | 3008591 | PC | 3 | CCEC | CCEC |
| 68 | COVER,TURBO CASING | 3002138 | PC | 1 | CCEC | CCEC |
| 69 | EXHAUST,MANIFOLD | 3419130 | PC | 1 | CCEC | CCEC |
| 70 | GASKET,EXH COLLECTOR | 142234 | PC | 6 | CCEC | CCEC |
| 71 | SCREW,EXH COLLECTOR | 137890 | PC | 12 | CCEC | CCEC |
| 72 | TURBOCHARGER | 3529032 | PC | 1 | HOLSET | HOLSET |
| 73 | TURBOCHARGER | 3529040 | PC | 1 | HOLSET | HOLSET |
| 74 | INJECTOR | 3054218 | PC | 6 | US | US |
| 75 | INJECTOR | 3054220 | PC | 6 | US | US |
| 76 | INJECTOR | 3054216 | PC | 6 | US | US |
| 77 | INJECTOR | 3054233 | PC | 6 | US | US |
| 78 | INJECTOR | 3047976 | PC | 6 | US | US |
| 79 | INJECTOR | 3047973 | PC | 6 | US | US |
| 80 | INJECTOR | 3054228 | PC | 6 | US | US |
| 81 | BARREL&PLUNGER | 3047963 | PC | 6 | US | US |
| 82 | BARREL&PLUNGER | 3047964 | PC | 6 | US | US |
| 83 | STC INJECTOR | 3071497 | PC | 6 | US | US |
| 84 | SEA WATER PUMP | 3655857 | PC | 1 | CCEC | CCEC |
| 85 | BELT,V | 178691 | PC | 1 | US | US |
| 86 | STARTING MOTOR | 3021036 | PC | 1 | CCEC | CCEC |
| 87 | ALTERNATOR | 3000347 | PC | 1 | CCEC | CCEC |
| 88 | ALTERNATOR | 4078701 | PC | 1 | CCEC | CCEC |
| 89 | SET,UPPER ENGINE GASKET | 3801330 | PC | 1 | US | US |
| 90 | SET,LOWER ENGINE GASKET | 3801468 | PC | 1 | US | US |
| 91 | STC SET,UPPER ENGINE GASKET | 3801754 | PC | 1 | US | US |
| 92 | TURBOCHARGER C290 | 3801968 | PC | 1 | HOLSET | HOLSET |
| 92 | TURBOCHARGER NTA855M | 3529040 | PC | 1 | HOLSET | HOLSET |
| 93 | TURBOCHARGER NTA855M | 3529032 | PC | 1 | HOLSET | HOLSET |
