Description

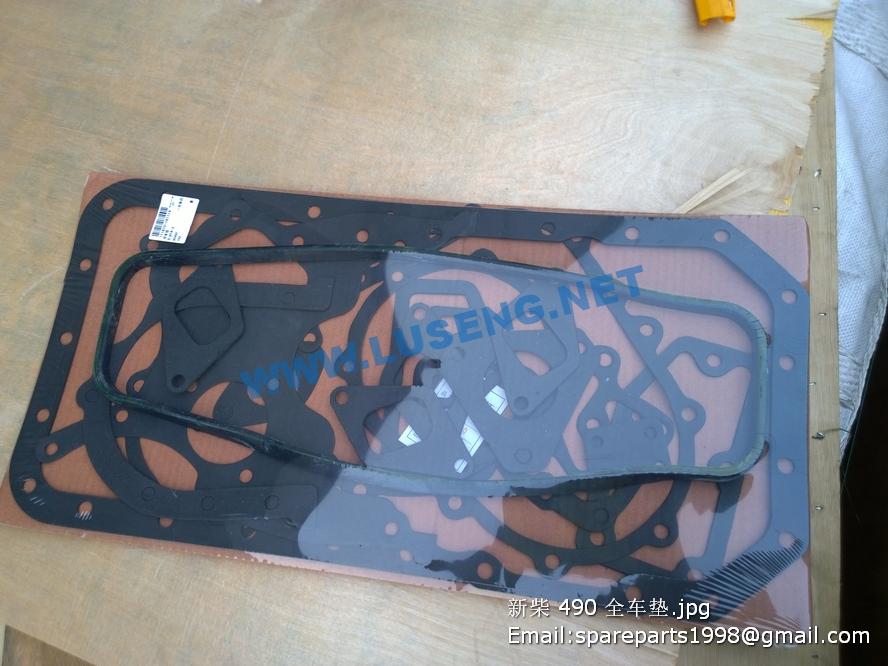

XINCHAI 490 OVERHAUL GASKET

1 CAM 49A001 内环凸轮
2 RING 55A0148 隔离环
3 COLUMN 39B0002 滚柱 GB4661-89 Φ13×26
4 SEAL 11B0001 旋转油封 70*78*5
5 SEAL 11B0002 旋转油封45*53*5
6 COVER 52A0126 滚柱左挡圈 403205A
7 SPRING 52C0050 弹簧
8 SHAFT 62A0001 中间输人轴 403203
9 O RING 10B0125 O型密封圈
10 PUMP 11C0002 变速泵
11 PLANET GEAR 44A0018 行星齿轮 PR60.21-6
12 NEEDLE 30B0013 厦工932行星轮架 滚针 GB309-84
13 SLEEVE 54A0223 滚针隔套 PR50.21-3
14 RIM BOLT 02B0088 轮辋螺栓 ZL30.06-19
15 AXLE 60A0176 行星轮轴 PR60.21-9
16 CABLE 61C0104 操纵软轴 L=1730 30机系列
17 WATER PUMP J8000-1307100A 水泵
18 CYLINDER HEAD GASKET B3000-1003001A 气缸盖垫片
19 AIR COMPRESSOR 630-3509100A 空气压缩机
20 VALVE STEAM SEALS 430-1007016A 气门杆油封430-1007016A
21 CRANKSHAFT BEARING SHELL SUB ASSY RED 6105Q-1005054C-H 主轴瓦0.25
22 CRANKSHAFT BEARING SHELL SUB ASSY BLUE 6105Q-1005054C-L 曲轴轴瓦组件(蓝)
23 UPPER BEARING SHELL 6105Q-1005056A 上轴瓦（宽）
24 CRANKSHAFT THRUST PIECE 6105Q-1005058A 曲轴止推片
25 LOWER BEARING SHELL 6105Q-1005057C 下轴瓦（宽）
26 UPPER BEARING SHELL 6105Q-1005054A 上轴瓦（窄）6105Q-1005054A
27 LOWER BEARING SHELL 6105Q-1005055C 下轴瓦（窄）
28 FIRST AIR RING J3200-1004016 柴活塞环组件
29 SECOND AIR RING J3200-1004017 配件未对应系统配件
30 O RING PART J3200-1004017 配件未对应系统配件
31 PISTON RING SUB ASSY J3200-1004030 活塞环组件1 Kit
32 PISTON J3200-1004015 活塞
33 PISTON PIN A30-1004019 活塞销
34 CONNECTING BEARING SHELL 430-1004022C-H 连杆轴瓦430-1004022C
35 CONNECTING ROD BEARING SHELL 430-1004022C-L 连杆轴瓦430-1004022C
