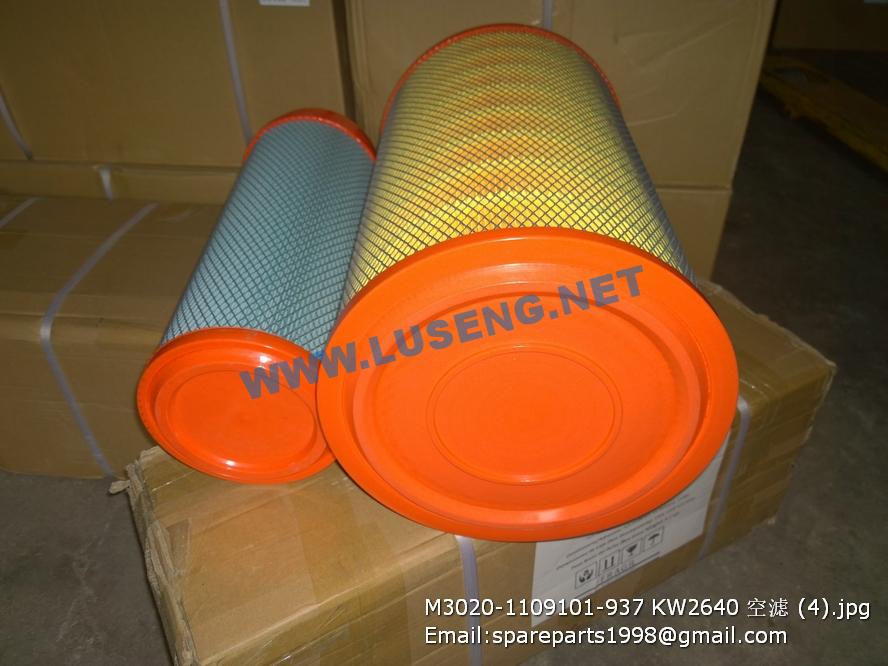

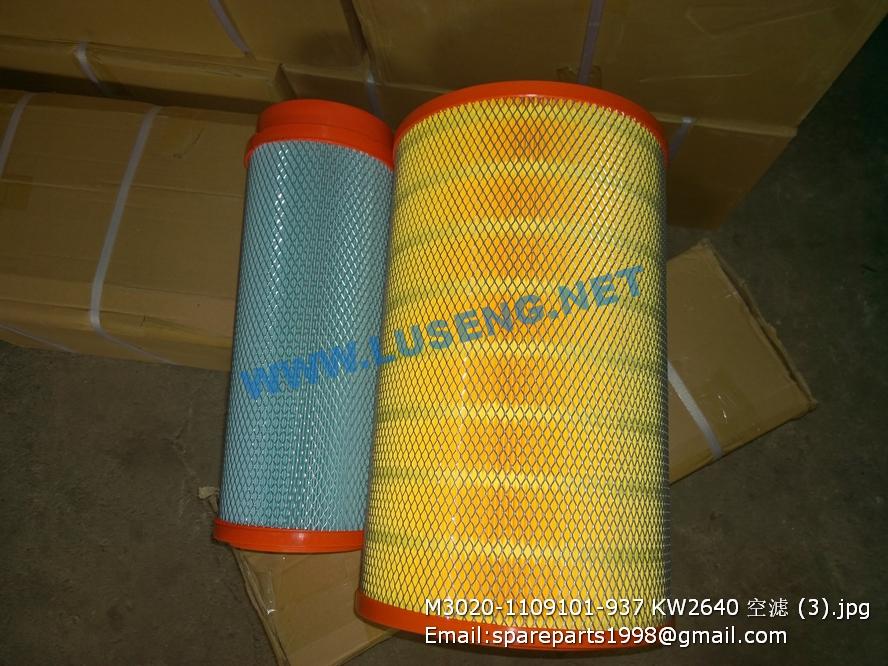

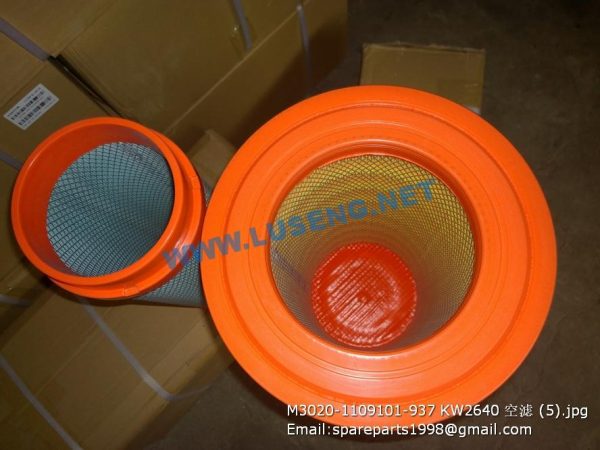

,M3020-1109101-937 YUCHAI AIR FILTER

M3020-1109101-937 YUCHAI AIR FILTER

,M3020-1109101-937 YUCHAI AIR FILTER

Categories: , Tag:

Description

M3020-1109101-937 YUCHAI AIR FILTER

Filter System (2000hrs/1 Year)
1 53C0859 Oil Filter (13055724) 8
2 SP102065 Fuel Filter (13020488) 8
3 53C0860 Fuel Water Seprator (13050733) 8
4 SP102069 Air filter (13023273) 4
5 SP103424 Transmission Oil Filter(Secondary) 2
6 53C0027 Transmission Oil Filter(Primary) 1
7 53C0015 Hydraulic Return oil filter 2
8 53C0016 Hydraulic Suction oil filter 1
Engine System
1 00Y0243 THROTTLE CONTROL System 1
2 30A2242 HOSE 1
3 38A5919 HOSE 1
4 30A3295 HOSE 1
5 40C3529 FAN 1
6 03B0006 Nut 1
7 51H0054 Nut 2
8 13061608 Seal washer 4
9 SP132570 (612600180175) Engine-stop electromagnet 1
10 13063528 Fuel pipe assembly 1
11 13023363 Unit washer 1
12 13032640 Magnetic screw plug assembly 1
13 13032792 Narrow v-belt 1
14 30A3294 HOSE 1
15 00C3664 FUEL LINE 1
AXLE
1 13B0213 SEAL RING 4
2 76A0019 SNAP RING 4
3 12B0093 O-RING 4
4 76A0020 GASKET 24
5 20B0022 ROLLING Needle 372
6 41A0020 SUN GEAR 4
7 07B0028 SNAP RING 4
8 13B0169 OIL SEAL 2
9 81A0037 SHIM 2
10 28C0196 GASKET 2
11 22B0001 ROLLER BEARING 2
12 07B0027 SNAP RING 2
13 56A0075 WEARWASHER 8
14 43A0006 BEVEL GEAR 8
15 43A0007 HALF SHAFT GEAR 4
16 56A0042 WEAR WASHER 4
17 06B0270 HARD WASHER 8
18 06B0214 HARD WASHER 40
19 00B0017 BOLT 12
20 06B0008 washer 12
21 23B0010 TAP.ROLLER BRG 2
22 12B0105 O-RING 2
23 81A0073 SHIM 2
BRAKE SYSTEM
1 12B0481 O RING 16
2 35C0025 FRICTION LINING AS 8
3 13B0108 SEAL 16
4 13B0008 DUST RING 16
5 12B0245 O RING 8
6 56A0045 WASHER 4
7 00A0041 DEFLATING VALVE SEAT 2
8 00A0044 DEFLATING VALVE 2
9 12B0292 O RING 4
10 13C0339 BOOSTER 1
11 00A0050 CONNECTOR 1
12 03A0067 CONNECTOR 1
13 00A1965 CONNECTOR 1
14 01B0244 BOLT 1
15 13C0004 BRAKE VALVE 1
16 SFM-360A6 O RING 3
TRANSMISSION
1 12B0144 O RING 2
2 65A0001 SPOOL 1
3 10B0002 SPRING 1
4 10B0001 SPRING 1
5 12B0291 O RING 1
6 57A0074 SHIM 1
7 12B0379 O RING 1
8 12B0339 O RING 1
9 12A0004 SHIM 2
10 57A0008 SHIM 1
11 80A0013 GASKET 1
12 21B0005 BALL BEARING 1
13 21B0006 BALL BEARING 1
14 SFM-360A6 O-RING 1
15 80A0014 SEAL RING 1
16 00B0002 BOLT 28
17 21B0023 BEARING 2
18 26B0002 BALL BEARING 1
19 21B0007 BALL BEARING 1
20 13B0922 SEAL RING 1
21 80A0015 SEAL RING 1
22 80A0016 SEAL RING 1
23 12B0379 O-RING 1
24 82A0025 GASKET 1
25 07B0012 SNAP RING 1
26 56A0032 SHIM 2
27 21B0013 BALL BEARING 1
28 80A0098 GASKET 1
29 12B0144 O-RING 2
30 12B0035 O-RING 1
31 12B0040 O-RING 1
32 12B0351 O-RING 1
33 55A0060 SPACER SLEEVE 1
34 56A0310 SPACER RING 1
35 60A0712 ROLLER 18
36 07B0023 SNAP RING 1
37 55A0058 SPACER SLEEVE 1
38 21B0011 BALL BEARING 1
39 55A0059 SPACER SLEEVE 1
40 57A0021 SHIM 8
41 76A0009 SNAP RING 1
42 80A0020 SEAL RING 1
43 80A0019 SEAL RING 1
44 07B0010 SNAP RING 1
45 80A0022 SEAL RING 1
46 07B0009 SNAP RING 2
47 13B0169 OIL SEAL 2
48 12B0105 O RING 2
49 71A0117 OIL SEAL SIT 2
50 12B0034 O RING 4
51 12B0379 O-RING 1
52 80A0010 GASKET 1
53 12B0379 O RING 2
54 12B0353 O RING 2
55 12B0040 O RING 1
56 13B0130 SEAL RING 1
57 07B0016 SNAP RING 1
58 12B0406 O-RING 2
59 12B0381 O-RING 2
60 75A0016 SPRING 1
61 75A0015 SPRING 2
62 56A0039 SHIM 1
63 12B0095 O RING 1
64 12B0036 O RING 1
HYDRAULIC SYSTEM
1 12B0291 O RING 5
2 12B0370 O RING 10
3 12B0351 O-RING 1
4 12B0285 O RING 4
5 12B0380 O-RING 4
6 12B0284 O-RING 4
7 12B0379 O-RING 3
8 12B0021 O-RING 4
9 12B0287 O RING 4
10 12B0114 O Ring 4
11 05C6233 Tube 1
12 12B0021 O RING 10
13 12B0076 O RING 2
14 12B0251 O RING 1
15 12B0302 O RING 1
16 12J0002 O RING 2
17 34C0033 SEAL RING 2
18 13J0007 SUPPORT RING 2
19 12B0032 O RING 1
20 13J0008 SUPPORT RING 1
21 12B0156 O RING 1
22 34C0030 SEAL 1
23 13B0124 Y SEAL 1
24 13J0009 DUST RING 1
25 13J0003 DUST RING 2
26 13J0004 Y-SEAL 2
27 34C0030 SEAL 2
28 13J0005 SUPPORT RING 2
29 12B0107 O RING 2
30 12B0032 O RING 2
31 13J0006 SUPPORT RING 4
32 34C0032 SEAL RING 4
33 35C0013 SEAL RING 4
34 82A0028 SHIM 1
35 12B0258 O RING 2
36 10B0014 GREASE FITTING 1
37 57A0053 SHIM 2
38 11L0004 PIN 2
39 11L0003 PIN 1
40 00B0011 BOLT 3
41 06B0349 WASHER 3
42 06B0127 WASHER 3
43 00B0183 BOLT 2
44 84A0596 V BELT 1
45 72A0151 TOOTH 6
46 14A0215 PIN 6
47 72A0059 TIP 3
48 72A0058 TIP 3
49 10B0014 GREASE FITTING 3
ELECTRICAL
1 34B0087 DISCONNECT SWITCH 1
2 30B0033 TEMP SENSOR 1
3 30B0750 TEMP SENSOR 1
4 30J0003 FUEL SENSOR 1
5 30B0121 PRESSURE SWITCH 1
6 30B0869 REV SENSOR 1
7 95C0009 COOLANT TEMP GAUGE 1
8 34B0118 START SWITCH 1
9 46C1835 RELAY AS 1
10 30B0261 AIR PRESSURE SENSOR 1
11 31J0007 RELAY AS 3
12 35B0095 FUEL LEVEL GAUGE 1
13 38B0059 BACKUP ALARM 1
14 38B0183 Horn 1
