Description

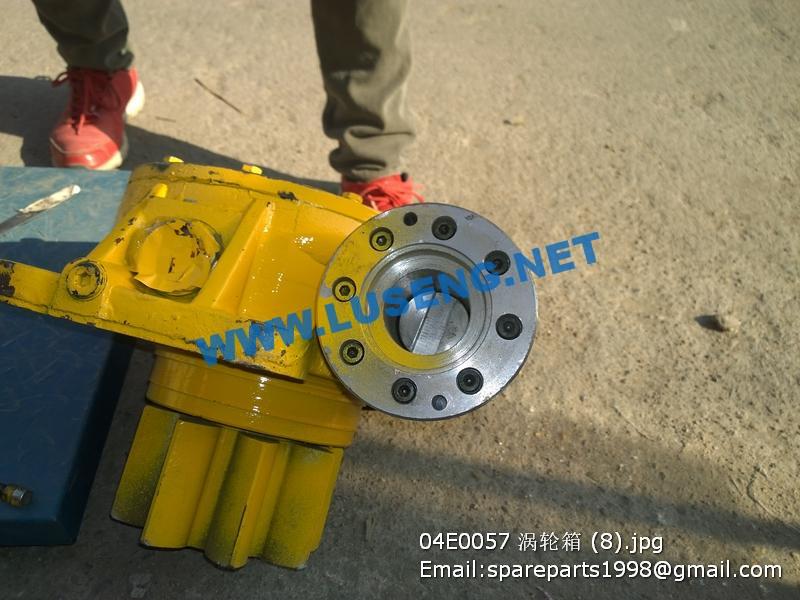

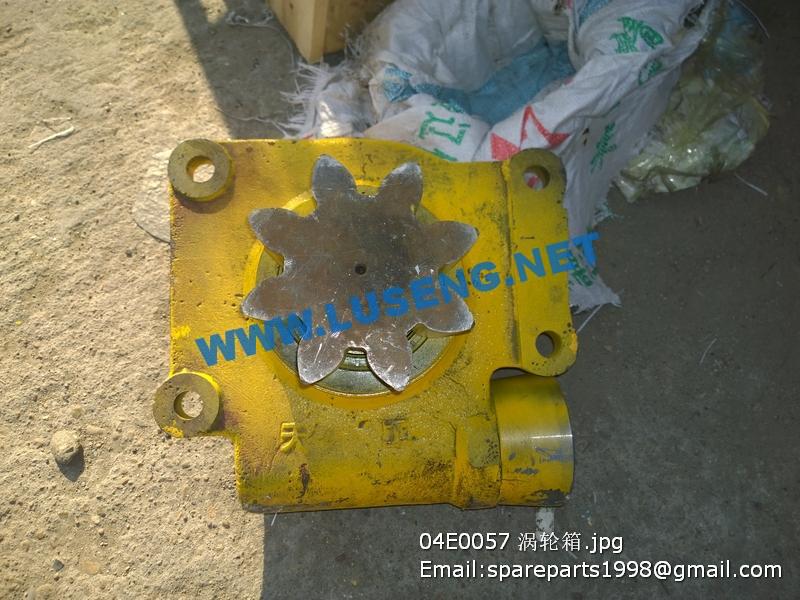

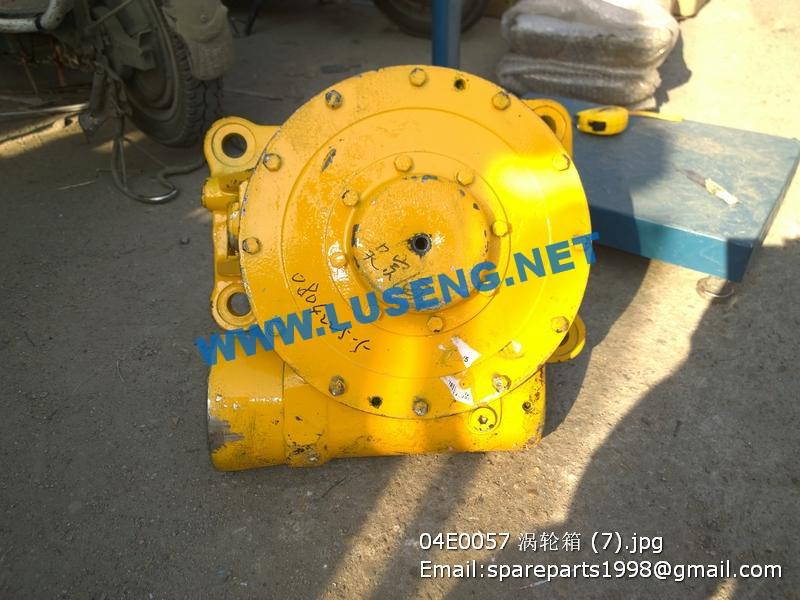

04E0057 LIUGONG CLG418 GRADER WORM BOX

01 00B0005 螺栓 BOLT 2 15
02 06B0002 垫圈 SPRING WASHER 2 14
03 10A3435 盖 COVER 1 13
04 37A0497 连接套 SLEEVE 1 8
05 71A0511 连接座 CONNECTING SUPPORT 1 9
06 12B0032 O形圈 “O” RING 1 10
07 28C0060 调整垫 ADJUSTING GASKET 1 11
08 23B0131 圆锥滚子轴承 TAP. ROLLER BRG 2 6
09 45A0017 蜗杆 WORM 1 7
10 04B0119 螺钉 SCREW 8 12
11 43B0027 油标 OIL DIPSTICK 1 17
12 06B0116 垫圈 WASHER 1 16
13 03B0097 螺塞 PLUG 1 28
14 12B0370 O形圈 “O” RING 1 27
15 70A0330 壳体 HOUSING 1 1
16 06B0065 垫圈 WASHER 1 2
17 03B0703 螺塞 PLUG 1 3
18 03B1124 螺塞 PLUG 2 5
19 34C0090 垫圈 WASHER 2 4

01 28C0100 调整垫片 ADJUSTING SHIM 1 22
02 23B0060 圆锥滚子轴承 TAP.ROLLER BRG 1 21
03 56A0733 垫片 GASKET 1 20
04 13B0636 密封圈 SEAL RING 1 19
05 41A0197 齿轮轴 GEAR SHAFT 1 18

01 12B0370 O形圈 “O” RING 1 27
02 03B0097 螺塞 PLUG 1 28
03 52C0122 蜗轮 WORM WHEEL 1 23
04 55A2128 钢套 STELL SLEEVE 1 24
05 28C0101 调整垫片 ADJUSTING SHIM 1 25
06 56A0781 密封垫 GASKET 1 29
07 70A0326 壳盖 HOUSING COVER 1 30
08 06B0002 垫圈 WASHER 12 14
09 00B0019 螺栓 BOLT 12 37
10 23B0061 圆锥滚子轴承 TAP.ROLLER BUG 1 26
11 06B0412 垫圈 WASHER 1 32
12 03B0923 螺母 NUT 1 33
13 56A0782 密封垫 GASKET 1 31
14 53A0800 盖 COVER 1 34
15 06B0006 垫圈 WASHER 8 35
16 04B0263 螺钉 SCREW 8 36

01 72A0938 支座 BRACKET 1 1
02 45A0018 蜗轮 WORM WHEEL 1 3
03 00B0048 螺栓 BOLT 6 2
