Description

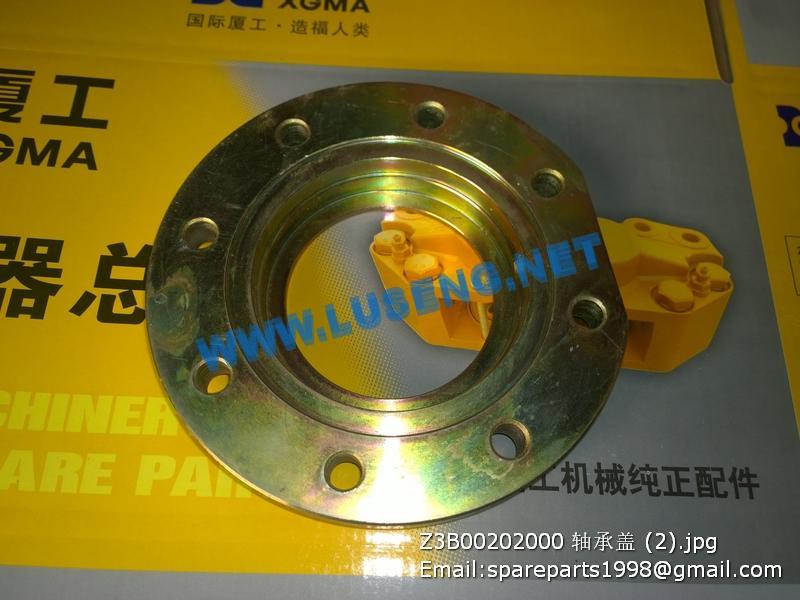

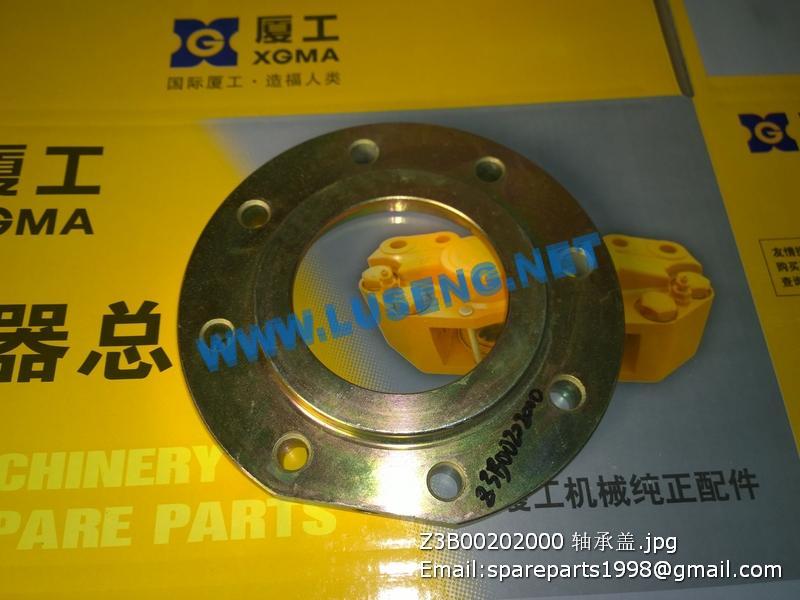

Z3B00202000 BEARING COVER,SEM SEM636B SEM639 WHEEL LOADER PARTS
1 小盖板 The small cover Z310020481 1
2 螺栓 M8×16 Bolt M8×16 B040910816 GB/T5783-2000 4
3 垫圈 8 Washer 8 B060410802 GB/T97.1-2002 4
4 螺栓 M24×220 Bolt M24×220 B040810023 GB/T5782-2000 8
5 尼龙锁紧螺母 M24 Nylon lock nut M24 B050212419 GB/T889.1-2000 8
6 垫圈 24 Washer 24 B060412404 GB/T97.1-2002 8
7 润滑油管 Lubricating pipe Z320020730 2
8 螺栓 M10×1×25 Bolt M10×1×25 B041200002 JB999-77 4
9 垫圈 16-200HV Washer 16-200HV B060331602 GB96.1-2002 4
10 转向销轴总成 Steering shanft Z3B00202900 2
11 组合密封垫圈 A10 Gaskets B060811002 JB982-77 8
12 开口销 8×90 Cotter pin 8×90 B080210890 GB/T91-2000 1
13 锁止杆 Locking rod Z3B002033 1
14 开口销 6.3×30 Cotter pin 6.3×30 B080210016 GB/T91-2000 1
15 插销 Bolt Z310020020 1
16 轴承盖 Bearing cover Z310390090 1
17 调整垫片δ0.3 Adjusting shim δ0.3 Z310390110 2
18 调整垫片δ0.1 Adjusting shim δ0.1 Z310390100 2
19 关节轴承 GE60ES Joint bearing B120526044 GB304.5-81 1
20 调整垫片δ0.05 Adjusting shim Z310390020 2
21 调整垫片δ0.5 Adjusting shim Z310390120 2
22 轴承盒 Bearing box Z310390130 1
23 垫圈 12 Washer 12 B060411203 GB/T97.1-2002 12
24 螺栓 M12×25 Bolt M12×25 B040911225 GB/T5783-2000 12
25 垫圈 16-300HV Washer 16-300HV B060461603 GB/T97.1-2002 2
26 举升缸销轴 Lift cylinder pin Z320020691 2
27 圆锥滚子轴承 Roller bearing B120406028 GB/T297-1994 2
28 调整垫 t0.5 Adjusting shim Z3B00202200 2
29 调整垫 t0.1 Adjusting shim Z3B00202100 4
30 油封 B95×75×10 Right letter B160410010 GB9877.1-1988 2
31 轴承盖 Bearing cover Z3B00202000 1
32 垫圈 10 Washer 10 B060411002 GB/T97.1-2002 8
33 螺栓 M10×40 Bolt M10×40 B040911040 GB/T5783-2000 8
34 螺栓 M16×25 Bolt M16×25 B040911625 GB/T5783-2000 6
35 垫圈 16-200HV Washer 16-200HV B060331602 GB96.1-2002 2
36 油杯 M10×1 Grease cup M10×1 B150101000 JB/T7940.1-1995 3
37 动臂后销轴 Boom pin shaft Z320020660 2
38 调整垫片Ⅰδ1 Adjusting shim Ⅰδ1 Z310010070 4
39 调整垫片Ⅰδ1.5 Adjusting shim Ⅰ Z310010110 4
40 调整垫片Ⅰδ2 Adjusting shim Ⅰδ2 Z310010120 2
41 前车架 Front frame Z3B00200100 1
42 垫圈 20-200HV Washer 20-200HV B060332004 GB96.1-2002 1
43 螺栓 M20×35 Bolt M20×35 B040912035 GB/T5783-2000 1
44 翻斗缸后销轴 Cyinder pin shaft Z310020640 1
