Description

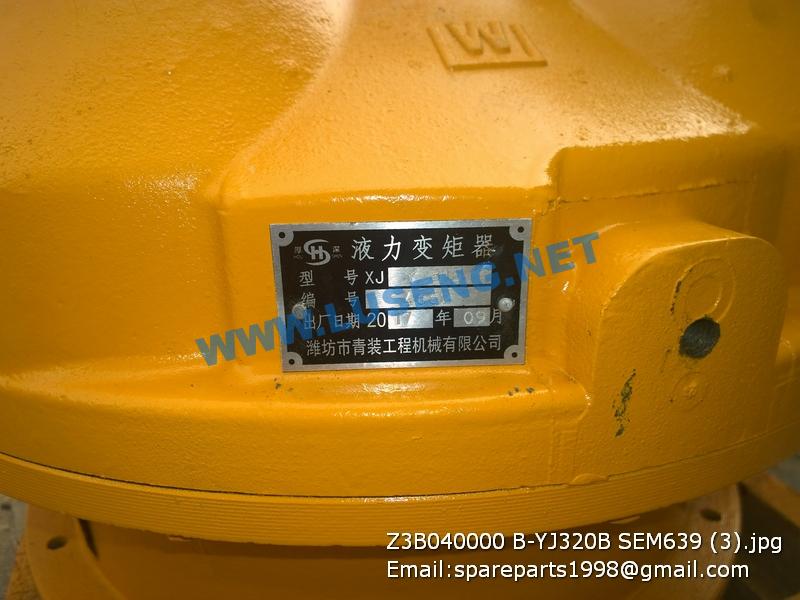

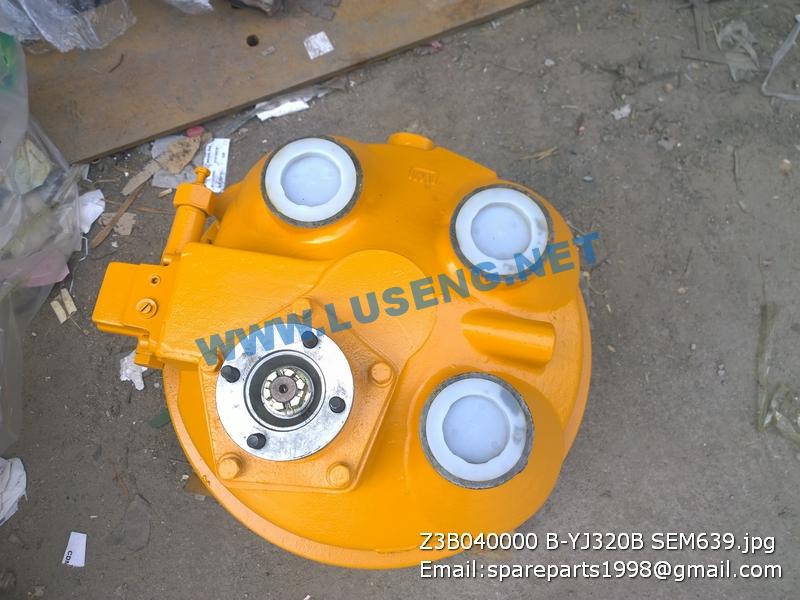

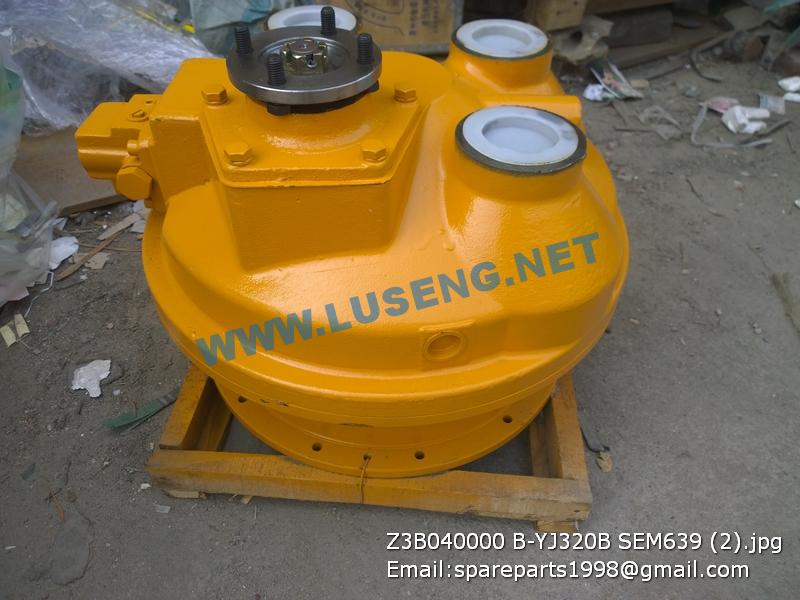

Z3B040000 B-YJ320B SEM639 TORQUE CONVERTER

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 ▲252300148-01 阀体 Valve Body 1 60F003
2 ▲252300148-02 螺堵 Plug 11 Q/ZB285-77
3 ▲252300148-03 放大阀芯 Spool 1 60F004
4 ▲252300148-04 调整垫片1 Washer 1 ZLF25-04
5 ▲252300148-05 转向阀弹簧 Spring 1 ZLF25-07
6 ▲252300148-06 导套 Cover 1 ZLF25-08
7 ▲252300148-07 座圈 Seat 1 ZLF25-06
8 ▲252300148-08 导座 Seat 1 ZLF25-10
9 805300014 垫圈 10 Washer 1 GB/T93-1987
10 ▲252300148-09 螺钉M10X60 Bolt 1 GB70-85
11 ▲252300148-10 分流阀芯 Spool 1 60F007
12 ▲252300148-11 调整垫片 Washer 1 ZLF25-24
13 ▲252300148-12 分流阀弹簧 Spring 1 60F006
14 ▲252300148-13 后盖 Port End Cover 1 60F005
15 ▲252300148-14 0形圈8.5X1.8 O—Ring 8 GB/T3452.1-1992
16 801100179 0形圈45X2.65 O—Ring 3 GB/T3452.1-1992
17 ▲252300148-15 先导阀座 Pilot Valve Seat 1 ZLF25-21
18 ▲252300148-16 0形圈35X3.55 O—Ring 1 GB/T3452.1-1992
19 805300104 垫圈36 Washer 1 JB/T982-1977
20 ▲252300148-17 螺塞 Plug 1 60F008
21 ▲252300148-18 前盖 Shaft End Cover 1 60F002
22 ▲252300148-19 弹垫12 Washer 6 GB/T93-1987
23 805000681 螺栓M12X65 Bolt 2 GB/T5782-2000
24 805000489 螺栓M12X75 Bolt 2 GB/T5782-2000
25 ▲252300148-20 导阀 Transmit Valve 1 ZLF25-20
26 ▲252300148-21 导阀弹簧 Spring 1 ZLF25-19
27 ▲252300148-22 弹簧座 Spring Seat 1 ZLF25-18
28 ▲252300148-23 密封锁紧螺帽M10X1 Screw Cap 1 SXH25-02
29 ▲252300148-24 螺母 Nut 1 ZLF25-17
30 ▲252300148-25 调压丝杆 Mix Press Staff 1 ZLF25-11
31 ▲252300148-26 梭阀组件 Shuttle Valve 1 SF06
32 805000404 螺栓M12X45 Bolt 2 GB/T5782-2000
33 803107807 螺塞M14X1.5 Plug 1 JB/T1000-1977
34 805300024 垫圈14 Washer 1
35 ▲252300148-27 弹垫10 Washer 1 GB98-87
36 ▲252300148-28 O形圈22X2.4 O-Ring 1 GB/T3452.1-1992
