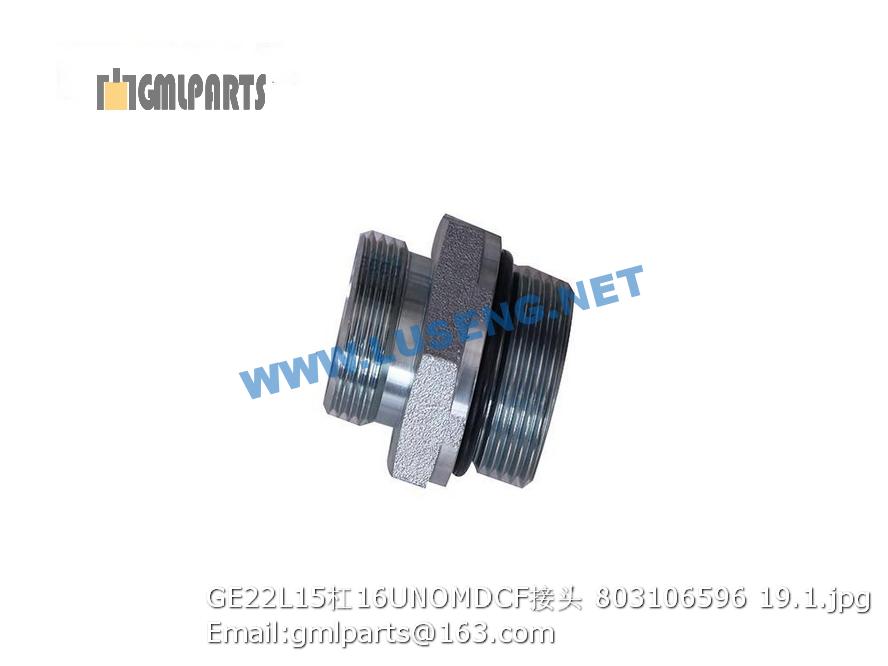

803106596 GE22L15/16UNOMDCF JOINT
序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 225600448 熄火支架 Braket 1
2 225600447 油门支架 Braket 1
3 805100064 螺钉 M8×20 Bolt 4 GB/T70.1-2008
4 805300010 垫圈 8 Washer 20
5 805200048 螺母 M10 Nut 4 GB/T6170-2000
6 805300017 垫圈10 Washer 13 GB/T97.1-2002
7 805000043 螺栓 M10×30 Bolt 9 GB/T 5783-2000
8 225600446 仪表箱总成 Instrument panel 1
9 805000714 螺栓 M10×20 Blot 4 GB/T5783-2000
10 800302351 操纵软轴 Soft shaft 1
11 805000018 螺栓 M8×20) Elbow 16
12 225600453 操纵箱体 Control box 1
13 800302337 手刹车软轴 Soft shaft 1
14 227000246 工具箱 Toolbox 1
15 801902823 座椅 Seat 1
16 805200045 螺母 8 Nut 4 GB/T 6170-2000
17 225600449 软轴支座 Braket 1
18 227000103 叉接头 Fork 1
19 805601659 销轴 10X25 Pin 1 GB/T882-1986
20 805600344 销 3X20 Pin 1 GB/T91-2000
21 805300102 垫圈 10 Washer 1 GB/T96.1-2002
1 ▲225600323-080301 下面板 Below panel 1
2 ▲225600323-080302 上面板 Top panel 1
3 ▲225600323-080303 油门软轴芯子 Core of throttle flexible axle 1
4 ▲225600323-080304 油门软轴直丝管 Straight wire tube of throttle flexible axle 1
5 ▲225600323-080305 后挂钩 Back Hook 1
6 ▲225600323-080306 后接头 Back connector 1
7 ▲225600323-080307 连接帽 Connection cap 1
8 ▲225600323-080308 WJ106控制器 Controller 1
9 ▲225600323-080309 手柄 Handle 1
10 ▲225600323-080310 密封帽6X7.5 Seal cap 2
11 ▲225600323-080311 螺母M8 Nut 2
12 ▲225600323-080312 平垫8 Flat washer 4
13 ▲225600323-080313 螺纹接头M8X1X132 Screw thread connector 1
14 ▲225600323-080314 熄火软轴直丝管 Straight wire tube of flameout flexible axle 1
15 ▲225600323-080315 熄火软轴芯子 Core of flameout flexible axle 1
16 ▲225600323-080316 操作操作面板支架 Supportof operation panel 1
17 225601057 仪表箱电气 Electric of cable instrument box 1
18 860118964 方向盘 Steering wheel 1
19 ▲225600323-080317 安装板 Mounting plate 1
20 ▲225600323-080318 平垫6 Flat washer 12
21 ▲225600323-080319 弹垫6 Spring washer 12
22 ▲225600323-080320 螺栓M6 Bolt 12
23 225600457 仪表箱液压 Hydraulic of meter box 1
24 ▲225600323-080321 球角M5XM5XM30 Ball point 1
25 ▲225600323-080322 螺母M5 Nut 3
26 ▲225600323-080323 拉杆M5X35 Link 1
27 ▲225600323-080324 密封帽1.8X5 Seal cap 1
28 ▲225600323-080325 螺母M8 Nut 2
29 ▲225600323-080326 螺纹接头M8X70 Screw thread joint 1
30 ▲225600323-080327 球角 Ball point 1
31 ▲225600323-080328 螺母M6 Nut 14
32 ▲225600323-080329 拉杆M6X135 Trolley pole 1
33 ▲225600323-080330 导向管 Guide tube 1
34 ▲225600323-080331 密封帽8X10 Seal cap 1
35 ▲225600323-080332 螺母M12 Nut 2
36 ▲225600323-080333 平垫12 Flat washer 2
37 ▲225600323-080334 螺纹接头 Screw thread connector 1
38 ▲225600323-080335 直杆M5X120 Straight pole 1
39 ▲225600323-080336 框架 frame 1
40 ▲225600323-080337 螺钉 Screw 12
41 ▲225600323-080338 弹垫5 Spring washer 12
42 ▲225600323-080339 平垫5 Flat washer 12
