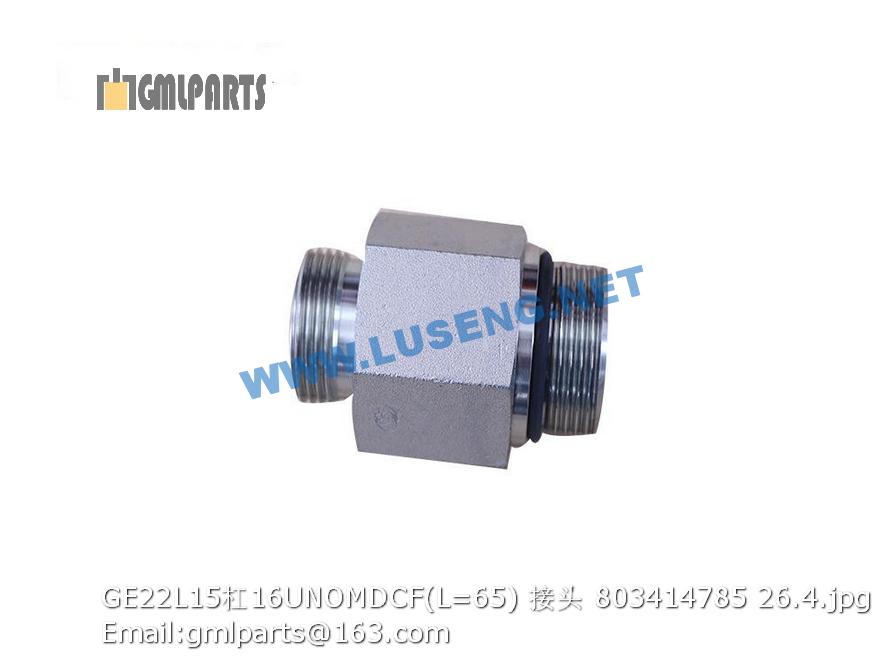

803414785 GE22L15/16UNOMDCF(L=65) JOINT

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 226800227 制动踏板 Brake pedal 1
2 226800226 橡胶踏板套 Rubber foot pedal 1
3 805000238 螺栓M12×130 Bolt 1 GB/T5782-2000
4 805300020 垫圈12 Washer 1 GB/T97.1-2002
5 226801786 衬套 Bushing 2
6 805600006 销4×30 Pin 2
7 226800225 弹簧 Spring 1
8 805300017 垫圈10 Washer 2 GB/T97.1-2002
9 805200098 螺母 M12 Nut 1 GB/T889.1-2000
10 800901174 离合器主缸 Clutch cylinder 1
11 805600068 销 10×30 Pin 2 GB/T882-2008
12 805000017 螺栓 M8×25 bolt 2 GB/T5783-2000
13 805300010 垫圈 8 Washer 2
14 805300025 垫圈 12 Washer 2
15 800901182 接头 Connector 2
16 805300024 垫圈14 Washer 1
17 800901169 接头体 Joint body 1
18 800901168 离合器助力缸 Clutch cylinder 1
19 805000680 螺栓 M10×25-10.9 Bolt 4 GB/T5783-2000
20 805300014 垫圈 10 Washer 4 GB/T93-1987
21 226800224 连接座 Adaptor 1
22 239901860 软管总成 Soft pipe 1
23 800513323 含油轴承 Bearing 1
24 803071682 固定节流单向阀 Non-return valve 1
25 226801637 接头 Joint 1
1 ▲226800286-060201 泵体 Pump body 1
2 ▲226800286-060202 回位弹簧 Spring 6
3 ▲226800286-060203 后密封圈 Back seal ring 6
4 ▲226800286-060204 进油阀回位弹簧座 Spring seat 1
5 ▲226800286-060205 进油阀回位弹簧 Spring 1
6 ▲226800286-060206 活塞进油阀 Valve 1
7 ▲226800286-060207 进油阀油封 Oil seal 1
8 ▲226800286-060208 后密封圈 Ring 1
9 ▲226800286-060209 活塞 Piston 1
10 ▲226800286-060210 垫片 Washer 1
11 ▲226800286-060211 挡圈 Collar 1
12 ▲226800286-060212 防尘套 Dustproof set 1
13 ▲226800286-060213 推杆 Lever 1
14 ▲226800286-060214 螺母 Nut 1
15 ▲226800286-060215 推杆叉 Hand spike 1
16 ▲226800286-060216 限向螺钉密封圈 Seal 1
17 ▲226800286-060217 限向螺钉 Limit screw 1

18 860104969 离合器总泵修理包 Tools kit 1
1 ▲226800286-060301 阀座 Valve seat 1
2 ▲226800286-060302 铜铆钉 Cuprum rivet 6
3 ▲226800286-060303 防尘帽 Dustproof cap 6
4 ▲226800286-060304 防尘片 Dustproof patch 1
5 ▲226800286-060305 O型密封圈 O-ring 1
6 ▲226800286-060306 孔用弹性挡圈 Hole using sping ring 1
7 ▲226800286-060307 密封闷头 Seal 1
8 ▲226800286-060308 O型密封圈 O-ring 1
9 ▲226800286-060309 Y形密封圈 Y-ring 1
10 ▲226800286-060310 Y形密封圈 Y-ring 1
11 ▲226800286-060311 控制阀杆 Control valve lever 1
12 ▲226800286-060312 O形密封圈 O-ring 1
13 ▲226800286-060313 回位弹簧 Spring 1
14 ▲226800286-060314 进气阀座 Valve seat 1
15 ▲226800286-060315 O形密封圈 O-ring 1
16 ▲226800286-060316 阀门 Valve 1
17 ▲226800286-060317 进气阀弹簧 Spring 1
18 ▲226800286-060318 导流环 Ring 1
19 ▲226800286-060319 O形密封圈 O-ring 1
20 ▲226800286-060320 油杯帽 Cap 1
21 ▲226800286-060321 气缸体 Cylinder 1
22 ▲226800286-060322 垫片 Washer 1
23 ▲226800286-060323 螺栓 bolt 1
24 ▲226800286-060324 防尘套座 Dustproof 1
25 ▲226800286-060325 盖板 Cover boart 1
26 ▲226800286-060326 滑环 ring 1
27 ▲226800286-060327 Y形密封圈 Y-Ring 1
28 ▲226800286-060328 推杆叉 Handspike fork 1
29 ▲226800286-060329 O形密封圈 O-ring 1
30 ▲226800286-060330 O形密封圈 O-ring 1
31 ▲226800286-060331 螺母 Nut 1
32 ▲226800286-060332 定位套 Orinating sleeve 1
33 ▲226800286-060333 活塞 Piston 1
34 ▲226800286-060334 O形密封圈 O-ring 1
35 ▲226800286-060335 活塞杆 Piston pole 1
36 ▲226800286-060336 O形密封圈 O-ring 1
37 ▲226800286-060337 滑环 Ring 1
38 ▲226800286-060338 推杆 Handspike 1
39 ▲226800286-060339 回位弹簧 spring 1
40 ▲226800286-060340 Y形轴用密封圈 Y-ring 1
41 ▲226800286-060341 防尘套 Dustproof 1
42 ▲226800286-060342 放气螺钉 Exhausting screw 1
43 860104970 离合器助缸修理包 Tools kit 1
