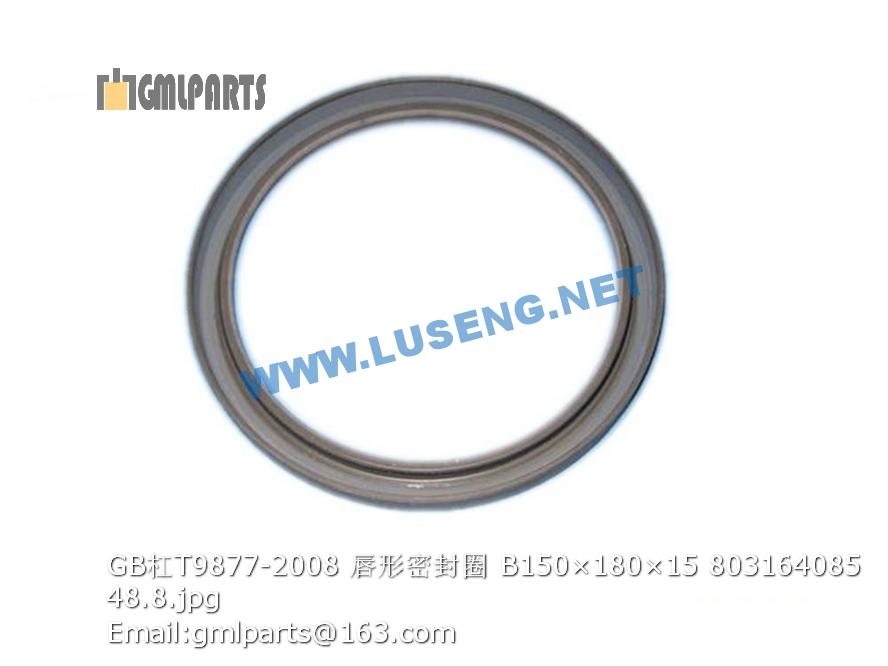

803164085 GB/T9877-2008 Oil Seal B150×180×15
序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 231401892 支板 Supporting Board 2
2 231401893 法兰 Flange 2
3 805000045 螺栓M12X40 Bolt 12 GB/T 5783-2000
4 805300018 垫圈12 washer 12 12 GB/T93-1987
5 805701061 键14×50 Key 1 GB/T1096-2003
6 231401836 套 Sheath 2
7 231401837 毡圈 Felt Ring 2
8 800511444 轴承 Bearing 2 GB/T276-1994
9 231401839 轮体 Drum 1
10 231401838 轴 Axletree 1
11 805300169 垫圈 42 Washer 2 GB858-88
12 805200204 螺母 M42×1.5 Nut 2 GB812-88
13 801100336 黄油嘴M10X1 Grease Nipple 2 JB/T7940.1-1995
14 231400293 盖板 Cover 2
15 231400292 调整垫 Shim 4
16 805001930 螺栓M16X50 Bolt 16 GB/T5782-2000
17 805300011 垫圈 16 Washer 16 GB/T 93-1987
1 231401705 轮子焊接 Drum 1
2 805000014 螺栓 Bolt 28
3 805200098 螺母 M12 Nut 48 GB/T889.1-2000
4 805301374 垫圈 12(达克罗) Bolt 87
5 801902919 减振块 Shock absorber 7
6 231401709 驱动板 Drive plate 1
7 805000074 螺栓 M12×20 Bolt 16 GB/T5783-2000
8 805000048 螺栓M12X35 Bolt 16 GB/T5783-2000
9 231402038 盖板 Plate 1
10 805048147 螺栓M16x40 Bolt 5
11 805301377 垫圈 16(达克罗) Wahser 21
12 805000580 螺栓M16X55-109 Bolt 7 GB/T5783-2000
13 231402040 驱动侧支撑板 supporting board 1
14 803164067 O型圈200×3.55 o-ring 1 GB3452.1-82
15 227300178 螺塞M30X1.5 Plug 1
16 805300055 垫圈 30 WASHER 1 JB982-77
17 803164092 油封B130X160X12 Oil Seal 1 GB/T9877.1-1988
18 231401710 框架轴承座 Frame bearing set 1
19 231401711 减振器安装板 reducer fixing plate 1
20 231402043 振动侧支撑板 supporting board 1
21 805000090 螺栓 M12×55 805000090 8 GB/T5782-2000
22 805000059 螺栓M10X60 Bolt 6 GB/T5782-2000
23 805300014 垫圈 10 Washer 6 GB/T93-1987
24 801100044 O形圈140×3.55G O-ring 1
25 231401712 马达连接盘 Motor bracket 1
26 800511357 轴承352216E Bearing 1 GB/T299-1995
27 805100037 螺钉 M8×25 Screw 8 GB/T70.1-2000
28 805300010 垫圈 8 Washer 8
29 231401714 轴承压板 Cover plate 1
30 231402039 封板 Plate 0
31 805801009 油封B-90X120X12 Oil sealing 1 GB9877.1-1988
32 231401715 外轴承座 Bearing housing right 1
33 805000023 垫圈20 Washer 805000023 12
34 231400292 调整垫 Shim 7
35 230502674 加油管 Oil hose 1
36 805000017 螺栓 M8×25 bolt 1 GB/T5783-2000
37 230100206 油位螺栓 Oil lever glass 1
38 805300025 垫圈 12 Washer 1
39 805001930 螺栓M16X50 Bolt 16 GB/T5782-2000
