Description

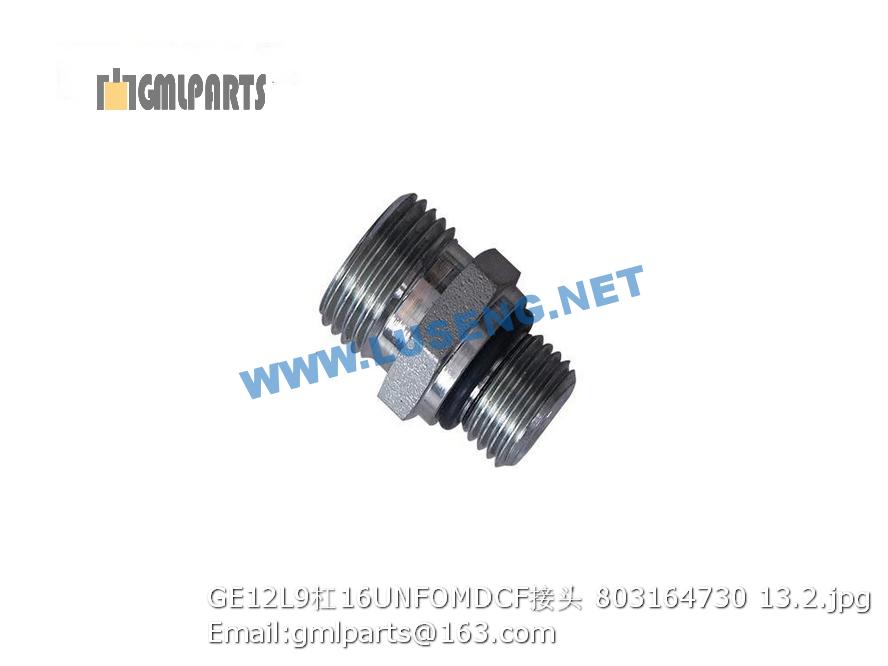

803164730 GE12L9/16UNFOMDCF JOINT

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 ▲226800286-060501 O形密封圈 o-ring 1
2 ▲226800286-060502 弹簧 Spring 1
3 ▲226800286-060503 下阀门总成 Valve assembly 1
4 ▲226800286-060504 回位弹簧 Spring 1
5 ▲226800286-060505 下阀门杆密封圈 O-ring 1
6 ▲226800286-060506 O形密封圈 O-ring 1
1 ▲226800286-060601 加力缸体总成 Booster Cylinder 1
2 ▲226800286-060602 螺栓M8×20 Bolt M8x20 6
3 ▲226800286-060603 垫圈8 Washer 6
4 ▲226800286-060604 推杆活塞总成 Piston 1
5 ▲226800286-060605 回位弹簧 Spring 1
6 ▲226800286-060606 O形密封圈 O-Ring 1
7 ▲226800286-060607 O形密封圈 O-Ring 1
8 ▲226800286-060608 连接盖 Connector 1
9 ▲226800286-060609 呼吸器总成 Haustellum 1
10 ▲226800286-060610 O形密封圈 O-Ring 1
11 ▲226800286-060611 中心密封圈 Seal 1
12 ▲226800286-060612 垫圈 Washer 1
13 ▲226800286-060613 螺栓M10×25 Bolt M12X25 1
14 ▲226800286-060614 垫圈10 Washer 1
15 ▲226800286-060615 挡圈32 Collar 1
16 ▲226800286-060616 安装支架 Bracket 1
17 ▲226800286-060617 挡圈25 Collar 1
18 ▲226800286-060618 推杆座总成 Handspike base 1
19 ▲226800286-060619 液压活塞总成 Piston 1
20 ▲226800286-060620 油杯盖 Lid 1
21 ▲226800286-060621 膜片 Film 3
22 ▲226800286-060622 螺栓M10×35 Bolt M10x35 6
23 ▲226800286-060623 螺栓M6×20 Bolt M6X20 6
24 ▲226800286-060624 垫圈6 Washer 1
25 ▲226800286-060625 油杯缸体 Oil cup 1
26 ▲226800286-060626 挡圈32 Washer 32 1
27 ▲226800286-060627 垫圈 Washer 1
28 ▲226800286-060628 弹簧 Spring 1
29 ▲226800286-060629 回油阀总成 Assembly 1
30 ▲226800286-060630 O形密封圈 O-ring 1
31 ▲226800286-060631 堵塞 Plug 1
32 860108747 加力泵修理包 Tools kit 1
