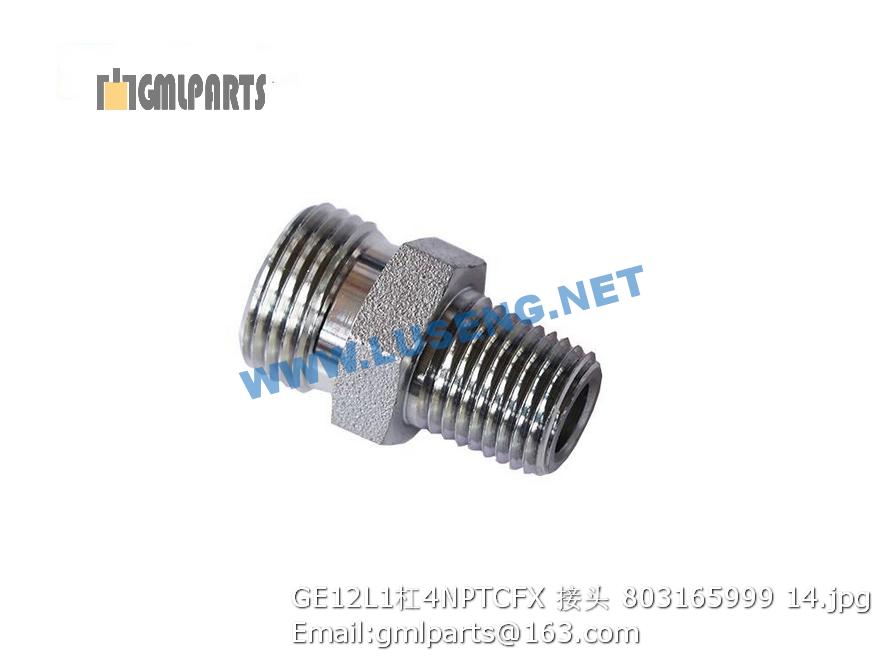

803165999 GE12L1/4NPTCFX JOINT

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 ▲800302283-01 制动鼓 Brake drum 1
2 ▲800302283-02 左蹄 Left shoe 1
3 ▲800302283-03 承板 bearing plate 1
4 ▲800302283-04 铆接座板 Rivet base 1
5 ▲800302283-05 垫圈16 Washer 1
6 ▲800302283-06 垫圈16 Washer 1
7 ▲800302283-07 螺母M16 Nut 1
8 ▲800302283-08 拉杆 Link 1
9 ▲800302283-09 右蹄 Right shoe 1
10 ▲800302283-10 拉力弹簧 Spring 4
11 ▲800302283-11 拉杆轴 Link shaft 1
1 ▲800302334-0001 连接盘 Plate 1
2 ▲800302334-0002 万向节总成 T160 Gimbal 2
3 ▲800302334-0003 花键轴叉 Fork 1
4 ▲800302334-0004 防尘罩 Dustproof sheath 1
5 ▲800302334-0005 油杯 M6X1 Oil cup 1
6 ▲800302334-0006 花键套叉 Fork 1
7 ▲800302334-0007 螺栓 Bolt 16 GB/T5785-2000
8 ▲800302334-0008 垫圈 12 Washer 16 GB/T93-1987
9 ▲800302334-0009 连接盘 Plate 1 XGC-02C-01
1 ▲225600256-0200 轮边减速器总成 Planetary assembly 1
2 ▲225600256-0001 桥壳总成 Axle Housing 1 3Y252J.2
3 ▲225600256-0002 螺栓M14X1.5X45 Bolt 2 50012019
4 ▲225600256-0003 螺栓M14X1.5X35 Bolt 10 50012017
5 ▲225600256-0004 螺栓M14X1.5X60 Bolt 2 50011012
6 ▲225600256-0005 定位销 Pin 2 51270005
7 ▲225600256-0006 弹垫14 Washer 14 52020005
8 ▲225600256-0100 主减速器总成 Decelerator assembly 1
9 ▲225600256-0300 制动器总成 Brake assembly 4
10 ▲225600256-0007 轮辋螺栓M22X1.5X85 Rim Bolt 32 80649002A-25
11 ▲225600256-0008 轮辋螺母M22X1.5 Rim Nut 32 3Y252J-03
12 ▲225600256-0009 通气塞Z1/8 Plug Z1/8 1 56010001
13 ▲225600256-0010 组合密封垫24 Compound sesl washer 2 53200005
14 ▲225600256-0011 螺塞M24×1.5 Plug 2 75500197
15 ▲225600256-0012 半轴 Axle shaft 2 XK216-400
16 ▲225600256-0013 标牌 Mark card 1 3Y252J-02
17 ▲225600256-0014 铆钉Φ3X6 Rivet 4 GB/T827-86
