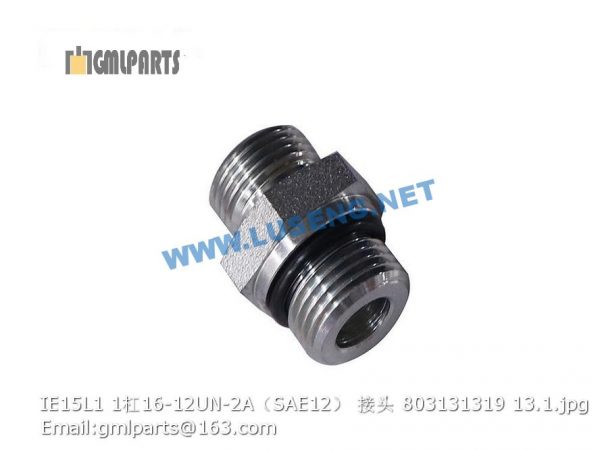

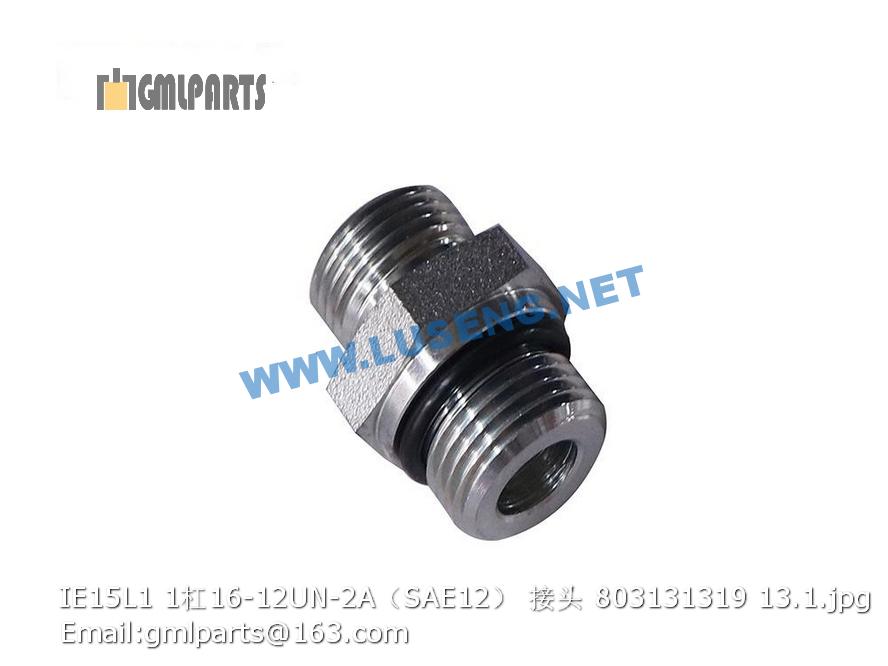

803131319 IE15L1 1/16-12UN-2A SAE12 JOINT

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 801100336 黄油嘴M10X1 Grease Nipple 4 JB/T7940.1-1995
3 226801732 胶管总成5-A11-600 Pipe 2
4 225600894 接头 Joint 2
5 225601045 后车架 1
6 805300014 垫圈 10 Washer 6 GB/T93-1987
7 805000727 螺栓M10X25 Bolt 6 GB/T5783-2000
8 225600904 储气筒箱 Air tank 1
9 805300112 垫圈 20 Washer 20 20 GB/T97.1-2002
10 805000415 螺栓 M20×80 Bolt M20×80 6 GB/T5782-2000
11 226800433 磁芯 magnetic core 1
12 225600566 侧门焊接 Side-door jointing 1
13 225600520 电瓶箱焊接 Battery tank jointing 1
14 225600342 底板 Bottom plate 1
15 805000113 螺栓M20X80 Bolt 8 GB/T5783-2000
16 228700266 磁性螺栓 MAGNETISM BOLT 2
17 225600525 油箱焊接 Oil tank jointing 1
18 226800436 垫 Washer 1
19 225600674 油箱盖 Oil tank cover 1
20 805300010 垫圈 8 Washer 26
21 805000018 螺栓 M8×20) Elbow 20
22 803176572 燃油加油滤清器 Filter 1 每1000小时或半年更换，以先到为准change every 1000 hours or half a year(whichever comes first)
23 805000616 螺栓 M8×12 Bolt 6 GB/T5783-2000
24 225600320 密封垫 Pressurize 1
25 805000377 螺栓 M20X35 Bolt 6 GB/T5783-2000
26 225600318 油箱焊接 Oil tank jointing 1
27 225600319 盖板 Cover plate 1
28 800101519 空气滤清器 Air filter 1
29 803164536 液位计 OIL LEVEL AND TEMPERATURE METER 1
1 225600652 前轮焊接 Front drum 1
2 225600468 支撑轴 Support axes 2
3 805000040 螺栓M16×60 Bolt 24 GB/T5783-2000
4 805300011 垫圈 16 Washer 24 GB/T 93-1987
5 225600469 轴承座 Bearing seat 2
6 805300014 垫圈 10 Washer 16 GB/T93-1987
7 805000043 螺栓 M10×30 Bolt 16 GB/T 5783-2000
8 803164186 O型密封圈φ224×5.3 O-ring 2 GB/T3452.1-2005
9 225600470 轴承端盖 Bearing end cover 2
10 805300010 垫圈 8 Washer 20
11 805000017 螺栓 M8×25 bolt 20 GB/T5783-2000
12 225600471 压盖 Lid 2
13 800511356 轴承352128 Bearing 2 GB/T299-1995
14 803164195 油封B150×180 Oil seal 2 GB/T13871-1992
15 801100336 黄油嘴M10X1 Grease Nipple 2 JB/T7940.1-1995
16 225600472 盖板 Cover 2
17 805001954 螺栓M20×130-10.9 Bolt 805001954 16
18 805201518 螺母M20 NUT 16 GB/T6182-2000
19 805300112 垫圈 20 Washer 20 16 GB/T97.1-2002
20 225600473 调整垫 Adjust shim 2
21 225600474 调整垫 Adjust shim 4
22 225600475 调整垫 Adjust shim 8
