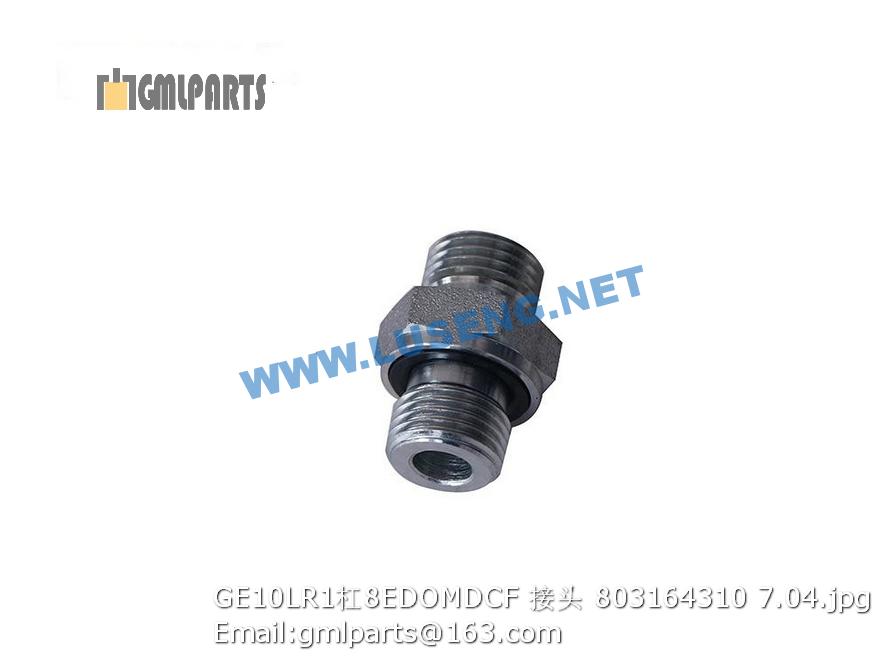

803164310 GE10LR1/8EDOMDCF joint
序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 ▲225600309-012201 第二轴 Second shaft 1
2 ▲225600309-012202 卡环-三四速齿轮 Clamp ring 1
3 ▲225600309-012203 弹簧 Spring 9
4 ▲225600309-012204 支座-同步器 pedestal- synchroshifter 9
5 ▲225600309-012205 滚柱-同步器 roller- synchroshifter 9
6 ▲225600309-012206 第三四速同步器总成 Third-and-fourth synchroshifter assembly 1
7 ▲225600309-012207 第三速齿轮 third speed gear 1
8 ▲225600309-012208 半圆挡圈 semicircular shielding ring 1
9 ▲225600309-012209 外环-半圆挡圈 outer ring- semicircular shielding ring 1
10 ▲225600309-012210 止推垫-第二速齿轮 thrust plate-second speed gear 1
11 ▲225600309-012211 衬套-第二速齿轮 bushing-second speed gear 1
12 ▲225600309-012212 第二速齿轮 second speed gear 1
13 ▲225600309-012213 防转销-第三速齿轮衬套 anti-rotating pin- third speed gear bushing 1
14 ▲225600309-012214 第一二速同步器总成 first-and-second speed synchroshifter assembly 1
15 ▲225600309-012215 锥体-第一二速同步器 cone-first and second speed synchroshifter 2
16 ▲225600309-012216 第一速齿轮 first speed gear 1
17 ▲225600309-012217 倒一速齿轮 first speed reversing gear 1
18 ▲225600309-012218 倒一二速同步器总成 first-and-second speed reversing synchroshifter assembly 1
19 ▲225600309-012219 锥体-倒一二速齿轮 Cone-first and second speed gear 2
20 ▲225600309-012220 倒二速齿轮 second speed reversing gear 1
21 ▲225600309-012221 止推垫-倒二速齿轮 thrust plate-second speed reversing gear 1
22 ▲225600309-012222 卡环-二轴后轴承 Snap-rear bearing gear of the main shaft 1
23 ▲225600309-012223 滚动轴承192315K rolling bearing 1
24 ▲225600309-012224 衬套-倒二速齿轮 bushing-second speed reversing gear 1
25 ▲225600309-012225 隔套-第二速齿轮滚针轴承 spacer tube-second speed gear needle bearings 1
26 ▲225600309-012226 滚针轴承-倒二速齿轮 needle bearing- second speed reversing gear 2
27 ▲225600309-012227 同步环 synchronizer ring 3
28 ▲225600309-012228 齿座-倒一二速同步器 tooth holder-first and second speed reversing synchroshifter 1
29 ▲225600309-012229 隔套-倒一速齿轮滚针轴承 spacer tube-first speed reversing gear needle bearings 1
30 ▲225600309-012230 滚针轴承-倒一速齿轮 needle bearing-first speed reversing gear 2
31 ▲225600309-012231 隔套-第一速齿轮滚针轴承 spacer tube-first speed gear needle bearings 1
32 ▲225600309-012232 滚针轴承-第一速齿轮 needle bearing-first speed gear 2
33 ▲225600309-012233 齿套-第一二速同步器 sliding coupling- first and second speed synchroshifter 1
34 ▲225600309-012234 齿座-第一二速同步器 tooth holder-first and second speed synchroshifter 1
35 ▲225600309-012235 同步环-第一二速同步器 synchronizer ring- first and second speed synchroshifter 2
36 ▲225600309-012236 滚针轴承-第二速齿轮 Needle bearing-second speed gear 2
37 ▲225600309-012237 隔套-第二速齿轮滚针轴承 spacer tube-second speed gear needle bearing 1
38 ▲225600309-012238 滚针轴承-第三速齿轮 needle bearing-third speed gear 2
39 ▲225600309-012239 齿套-第三四速同步器 sliding coupling -third and fourth synchroshifter 2
40 ▲225600309-012240 锥体-第三速齿轮 Cone- third speed gear 1
41 ▲225600309-012241 齿座-第三四速同步器 tooth holder- third and fourth speed synchroshifter 1
42 ▲225600309-012242 铆钉 rivet 3
43 ▲225600309-012243 挡环-第三四速齿套 stopper ring-third and fourth speedsliding coupling 1
44 ▲225600309-012244 隔套-第三速齿轮滚针轴承 spacer tube- third speed gearneedle bearing 1
1 ▲225600309-012501 惰轮 Idler 1
2 ▲225600309-012502 轴承 Bearing 1
3 ▲225600309-012503 隔套-惰轮 spacer-idler 1
4 ▲225600309-012504 O形圈GB1235-76 O-ring 1
