Description

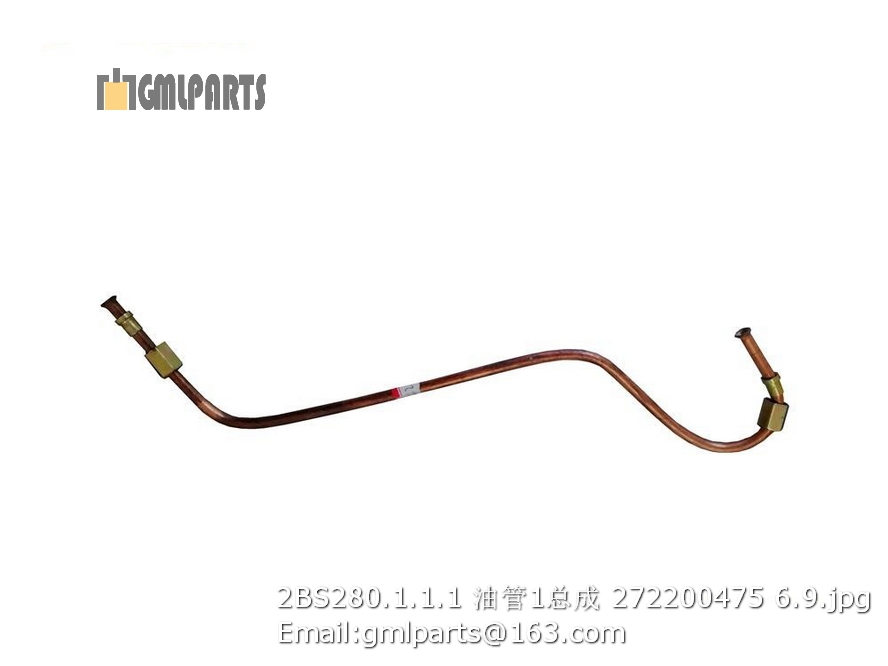

2BS280.1.1.1 272200475 XCMG LW180K TUBE
| 1 | 400402979 | 前车架 | Front Chassis | 1 | ||
| 2 | 400402944 | 定位块 | Distance Plate | 2 | ||
| 3 | 400402945 | 销轴 | Pin | 1 | ||
| 4 | 805300017 | 垫圈 10 | Washer | 10 | GB/T97.1-2002 | |
| 5 | 805000062 | 螺栓 M10×35 | Bolt | 4 | GB/T 5783-2000 | |
| 6 | 805300014 | 垫圈 10 | Washer | 10 | GB/T93-1987 | |
| 7 | 803130029 | O形密封圈60×5.7 | Seal Ring | 1 | GB1235-1976 | |
| 8 | 400402946 | 动臂上销轴 | Pin | 2 | ||
| 9 | 400402947 | 翻斗缸后销 | Pin | 1 | ||
| 10 | 400402948 | 动臂缸后销 | Pin | 2 | ||
| 11 | 805000048 | 螺栓M12X35 | Bolt | 3 | GB/T5783-2000 | |
| 12 | 805000074 | 螺栓 M12×20 | Bolt | 8 | GB/T5783-2000 | |
| 13 | 805300113 | 垫圈12 | WASHER | 9 | GB/T96.1-2002 | |
| 15 | 805000047 | 螺栓 M10×50 | Bolt | 6 | GB/T 5783-2000 | |
| 16 | 400402949 | 上卡板 | Upper Flange | 1 | ||
| 17 | 801134086 | 油杯 M10×1（不锈钢） | Oil Cup | 9 | JB/T7940.1-1995 | |
| 18 | 400402950 | 下卡板 | Lower Flange | 1 | ||
| 19 | 400402951 | 铰接下销轴 | Lower Articulation Pin | 1 | ||
| 20 | 400402952 | 前车架注油管 | Tube | 2 | ||
| 21 | 400402953 | 转向缸销 | Steering Pin | 2 | ||
| 22 | 400402954 | 锁紧销轴 | Pin | 2 | ||
| 23 | 400402955 | 锁紧连杆 | Lock Link | 1 | ||
| 24 | 251500108 | 弹性挡簧 | ELASTIC SPRING | 2 | ||
| 25 | 803163960 | 接头体6 | Pipe Connection | 4 | GB/T5625.2-2008 | |
| 26 | 805300010 | 垫圈 10 | Washer | 8 | ||
| 27 | 803164978 | 管夹 | Pipe Clamp | 2 | ||
| 28 | 805000033 | 螺栓M8×16 | Bolt | 2 | GB/T5783-2000 | |
| 29 | 800511367 | 关节轴承 GE50ES | Joint Bearing | 1 | GB/T9163-2001 | |
| 30 | 400402956 | 隔套 | Bushing | 1 | ||
| 31 | 801134085 | 油杯 45°M10×1 | Grease Cup | 1 | JB/T7940.2-1995 | |
| 32 | 805000018 | 螺栓 M8×20) | Elbow | 6 | ||
| 33 | 400403023 | 盖板 | Front Cover | 1 | ||
| 34 | 400403233 | 下盖板 | Front Cover | 1 |
