Description

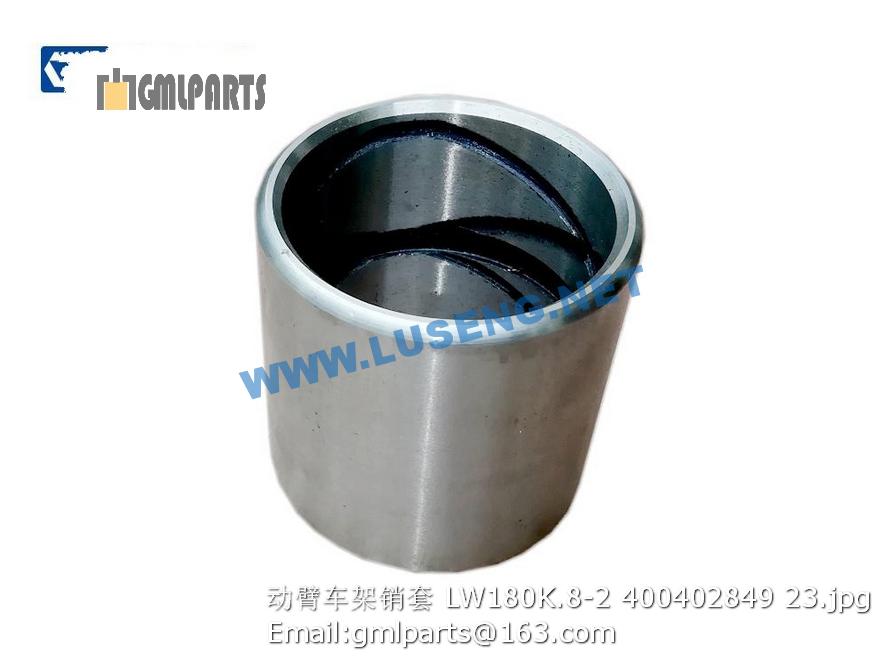

400402849 BUSHING XCMG WHEEL LOADER LW180K.8-2

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 272200177 锁紧螺母M33X1.5 Nut 2
2 272200176 垫圈 Cover 2
3 252101239 法兰 Flange 1
4 272200179 法兰 Flange 1 II
5 272200140 防尘环 Dustproof Ring 1
6 250200689 轴套 spacer 1
7 803164062 O形圈130×5.7 O-Ring 4 GB1235-76
8 272200138 油封座 Oil Seal Seat 2
9 801101745 油封CR HMS5 70X95X10 Oil Seal 2 外购SKF
10 801101722 油封B70x95x10B Oil Seal 2 GB9877.1-88
11 805400024 挡圈 130 WASHER 2
12 800500196 轴承6312 Ball Bearing 2 GB/T276-1994
13 272200265 输出轴齿轮 Output Shaft Gear 1
14 272200354 输出轴 Output Shaft 1
15 800511302 轴承6410 Ball Bearing 1 GB/T276-1994
16 250200687 O形圈 O-Ring 1
17 805000322 螺栓 M6×16 Bolt 4 GB/T5783-2000
18 272200169 挡罩 Cover 1 II
19 252101238 联结螺栓 Link Bolt 8 II
20 272200353 隔套 Spacer 1
1 805200058 螺母M20X1.5 Nut 2 GB/T6172.1-2000 805200058
2 250200227 胶垫 Rubber Pad 2 250200227
3 805002871 螺栓M18×40 Bolt 8 GB/T5782-2000 805002871
4 805300039 垫圈 18 WASHER 8 805300039
5 250200226 连接座 Bracket 2 250200226
6 805000605 螺栓 M20*150 Bolt 2 GB/T5782-2000 805000605
7 805000076 螺栓M10X70 Bolt 15 GB/T5782-2000 805000076
8 805300014 垫圈 10 Washer 49 GB/T93-1987 805300014
9 801902677 螺栓M10X55 Bolt 12 GB21-76 801902677
10 250200147 变速操纵阀 Gearshift Control Valve 1
11 250200292 密封垫 Seal Gasket 1 250200292
12 250200678 接头 Joint 2
12 803165983 接头 Joint 2 803165983
13 805300055 垫圈 30 WASHER 3 JB982-77
14 272200153 箱体 Transmission Housing 1 272200153
15 250200357 圆柱塞 Taper Plug 1 250200357
16 250200540 螺塞Z3／4” Plug 1 250200540
17 250200334 透气管 Breather Tube 1 250200334
18 805100447 螺钉M20 Bolt 2 GB/T825-1988 805100447
19 800511443 轴承6211 Bearing 1 GB/T276-1982 800511443
20 272200152 轴承套 Bearing Gasket 1 272200152
21 272200150 密封垫 Seal Gasket 2 272200150
22 805300018 垫圈12 washer 12 8 GB/T93-1987 805300018
23 801902679 螺柱 M12×36 Bolt 8 GB/T899-1988 801902679
24 805200049 螺母 M12 Nut 8 GB/T6170-2000 805200049
25 250200442 密封垫 Seal Gasket 1 250200442
26 250200441 端盖 End Cover 1 250200441
27 805000043 螺栓 M10×30 Bolt 28 GB/T 5783-2000 805000043
28 805000170 螺栓M14 x 40 Bolt 4 GB/T5783-2000 805000170
29 805300033 垫圈 14 WASHER 12 GB/T93-1987 805300033
30 250200359 圆柱销 Seal Gasket 1 250200359
31 803605397 FSKGA1放水阀 Water Drain Valve 1 803605397
32 250200437 角接管 Elbow 1 250200437
33 250200482 胶管 Hose 1 250200482
34 250200639 角接管 Elbow 1 250200639
35 250200114 加油盖 Filter Tube Cover 1 250200114
36 801100042 O形圈 45×3.5 O-ring 1 GB 1235-76 801100042
37 250200776 减震块 Block 2 250200776
38 801900068 喉箍d70 Clamp 2 JB/T8870-1999 801900068
39 805002174 螺栓 M10×30 Bolt 4 GB/T21-1976 805002174
40 250200198 压板 Plate 2 250200198
