Description

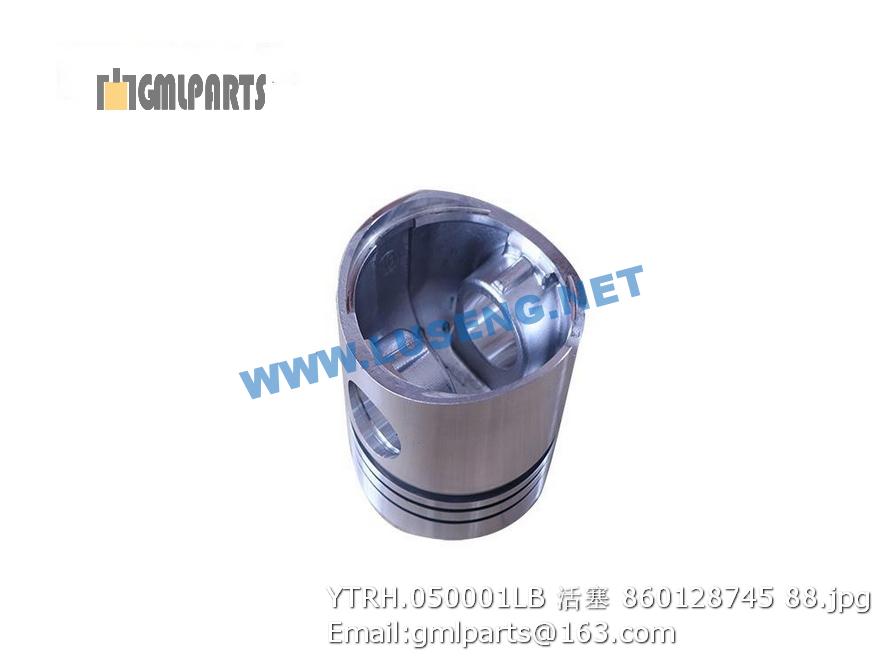

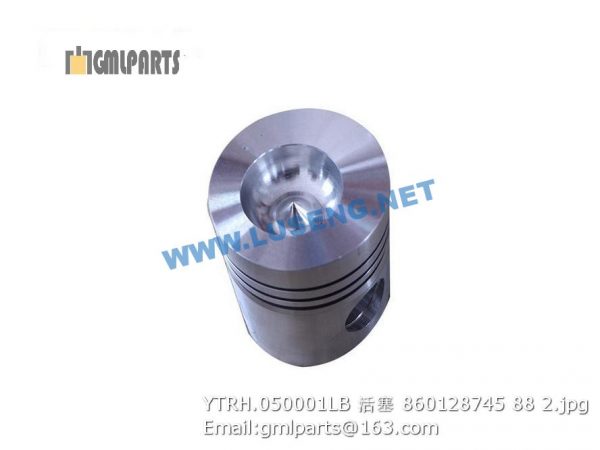

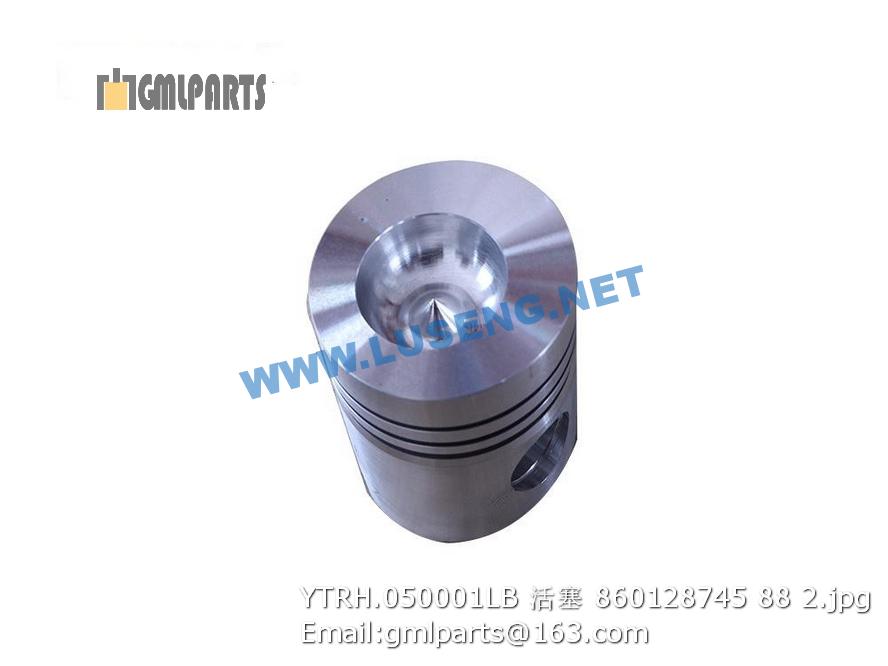

860128745 YTRH.050001LB PISTON
序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 ▲228900473-000101 机油滤芯 Oil filter core 1 DEUTZ BF6M1013ECP
2 ▲228700219-000104 燃油粗滤滤芯 Pre-fuel filter core 1
3 ▲228900473-000102 燃油精滤滤芯 Fine fuel filter core 1 DEUTZ BF6M1013ECP
5 803164592 液压油滤清器 Hydraulic oil filter elememt 2
6 860112734-01 主滤芯 Air cleaner core, main 1 AH19227
7 860112734-02 安全滤芯 Air cleaner core,safety 1 AH19227
8 860112734 空滤器滤芯 Air cleaner core 1 AH19227
1 ▲228900473-02 车架装配 Frame assembly 1
2 228900474 振动轮 Drum 1
3 228900489 传动系统 Transition system 1
4 228900492 动力系统 Engine System 1
5 ▲228900473-06 仪表箱及操纵系统 Instrument Panel And Control System 1
6 228700533 驾驶室装配 Cab assembling 1
7 228702234 电气系统 Electric system 1 Ⅶ
8 ▲228900473-09 液压系统 Hydraulic System 1
9 ▲228900473-10 发动机罩 Engine hood 1
10 ▲228900473-11 标记安装 Plate And Decals 1
11 ▲228900473-12 空调系统 Air-conditioner System 1
1 805000546 螺栓 M4×12 Bolt 12
2 805300027 垫圈 4 Washer 12 GB/T 93-1987
3 803164217 回油滤清器 Filter Assy 2
4 805000017 螺栓 M8×25 bolt 20 GB/T5783-2000
5 805300010 垫圈 8 Washer 20
6 805300069 垫圈 8 Washer 8 20
7 228702368 油箱盖 CAP 2
8 228700210 垫 Washer 2
9 805000045 螺栓M12X40 Bolt 6 GB/T 5783-2000
10 805300018 垫圈12 washer 12 6 GB/T93-1987
11 805300020 垫圈12 Washer 6 GB/T97.1-2002
12 228700561 左支架 LEFT BRACKET 1
13 805000713 螺栓 M10×45 Bolt 6 GB/T5783-2000
14 805300014 垫圈 10 Washer 20 GB/T93-1987
15 805200048 螺母 M10 Nut 6 GB/T6170-2000
16 228700269 梯子 LADDER 1
17 228700697 板 PLATE 1
18 805300017 垫圈10 Washer 20 GB/T97.1-2002
19 805000068 螺栓 M10×16 Bolt 8 GB/T5783-2000
20 801101755 加油管 GREASE CUP 1
21 228700560 右支架 RIGHT BRACKET 1
22 805000727 螺栓M10X25 Bolt 8 GB/T5783-2000
23 228700501 电瓶箱 BATTERY BOX 1
24 228900454 后车架 Back bodywork 1
25 228700266 磁性螺栓 MAGNETISM BOLT 2
26 228700275 连接板 Plank 1
27 228700273 销 Pin 2
28 228700374 调整垫 Shim 2
29 801100336 黄油嘴M10X1 Grease Nipple 3 JB/T7940.1-1995
30 228900458 压轮框架 Frame 1
31 228700370 盖 Cover 2
32 228700371 垫 Washer 6
33 800511347 轴承 GAC85S/K Bearing 4 GB/T304-2002
34 228700375 V型圈 V-ring 1
35 228700372 盖 Cover 1
36 805101805 螺钉M12×16 Bolt 3 GB/T77-2000
37 805000560 螺栓M24×70 Bolt 12 GB/T5782-2000
38 228700373 V型圈 V-ring 2
39 228700367 防尘盖 Prevent dust cover 1
40 805000616 螺栓 M8×12 Bolt 1 GB/T5783-2000
41 805000048 螺栓M12X35 Bolt 12 GB/T5783-2000
42 228700391 转向铰接 Steering hitch 1
43 805000051 螺栓 M16×40 Bolt 16 GB/T5783-2000
44 805301377 垫圈 16(达克罗) Wahser 16
45 228700703 刮泥板Ⅰ Scraper 1
46 228700704 刮泥板Ⅱ Scraper 1
47 228900550 前梁 Front girder 1
48 228900149 调整垫 Shim 2
49 228900150 调整垫 Shim 2
50 805300021 垫圈24 Washer 12 GB/T97.1-2002
51 805002127 螺栓M24×2×120 Bolt 12 GB/T5785-2000
52 228700382 板 BOARD 2
53 805300030 垫圈 6 Washer 6 8 GB/T93-1987
54 805000008 螺栓 M6×12 Bolt 8 GB/T5783-2000
