Description

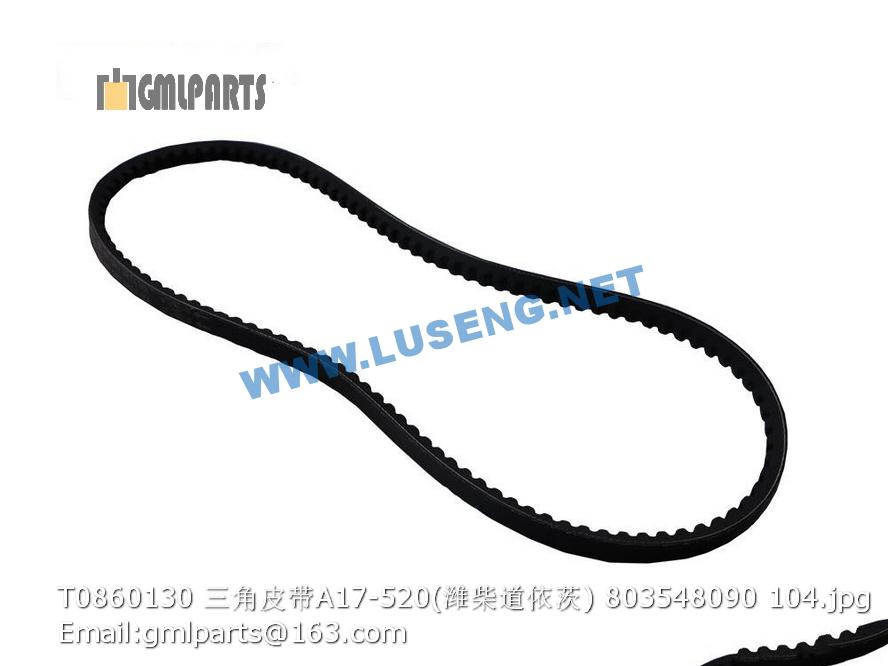

803548090 T0860130 BELT A17-520

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 8003005101 轮胎 Tyre 0
2 860117298 内胎 Inner tyre 0
3 ▲227100526-040101 球面螺母及螺栓 Spherical Nut 0 驱动桥附件
4 227000101 轮辋 Rim 0
5 805001981 螺栓 M20X265 Bolt 0 GB/T5783-2000
6 800351677 驱动桥CY1450A Drive Bridge 0
7 800345971 传动轴 Transmission Shaft Assembly 0 配动力箱
8 805003938 螺栓 M14×1.5×45 Bolt 0
9 805200056 螺母 M14*1.5 Nut 0 GB/T889.2-2000
10 805338329 垫圈 20 Lock Washer 0
11 805338451 宽边垫圈14 Lock Washer with wide edge 0
12 805238433 垫圈 20 Lock Washer 0 GB/T97.1-2002
13 805201501 螺母 M20 NUT 0 GB/T889.1-2000
1 ▲227000157-0406 轮边减速器总成 Planetary assembly 2 CY1450.2
2 860115206 制动器总成 Brake Assembly. 2
3 ▲227000157-0403 桥壳总成 Housing assembly 1 CY1450.1
4 ▲227000157-0404 主减速器总成 Carrier assembly 1 ZL30E-A.1
5 ▲227000157-040201 螺栓M12×35 Bolt 9 75500138
6 ▲227000157-040202 螺栓M12×55 Bolt 2 75500033
7 ▲227000157-040203 垫圈12 Washer 14 GB/T93-87
8 ▲227000157-040204 双头螺栓M12*1.5*60 Bolt 3 75201033
9 ▲227000157-040205 平垫12 Washer 3 GB/T848-85
10 ▲227000157-040206 小锥套 Taper Sleeve 3 75201033
11 ▲227000157-040207 螺母M12 Nut 3 GB/T6170-2000
12 ▲227000157-040208 轮辋螺栓M20×1.5×122 Bolt 24 75600118
13 ▲227000157-040209 轮辋螺栓弹簧垫圈M22 Washer 24 GB/T93-76
14 ▲227000157-040210 轮辋螺母M22×1.5 Nut 24 75600119
15 ▲227000157-040211 螺母M20*1.5 Nut 24 GB/T6171-2000
16 ▲227000157-040212 标牌 scutcheon 1 CY1450-1
17 ▲227000157-040213 螺塞M24*1.5 Plug 4 75500197
18 ▲227000157-040214 组合垫圈24 Compound Seal washer 4 53200005
19 ▲227000157-040215 油管固定块 Oil condensate 1 80494001
20 ▲227000157-040216 通气塞M10*1 Plug 1 QC/T410-1999
21 ▲227000157-040217 半轴 Axle Shaft 2 CZ01A1-00.00-4D
1 ▲227000157-040601 钢珠3/8″ Screw 3 GB/T308-2000
2 ▲227000157-040602 行星轮轴 Planetary Pin 3 79001545BD
3 ▲227000157-040603 行星轮 Planet Gear 3 79001547ADY
4 ▲227000157-040604 太阳轮 Sun Gear 1 79001524ADY
5 ▲227000157-040605 隔套 Sleeve 1 77000021
6 ▲227000157-040606 垫圈85 Washer 1 GB858-88
7 ▲227000157-040607 行星轮垫片 Washer 6 75600456B
8 ▲227000157-040608 螺母M85*2 Nut 2 75501646
9 ▲227000157-040609 锥套 Sleeve 1 76101041
10 ▲227000157-040610 滚针6×30 Roll 63 75600330F
11 ▲227000157-040611 油封座 Oil Seal Cage 1 79500813A
12 ▲227000157-040612 挡油板 Ring 1 79500823
13 ▲227000157-040613 油封BA150*180*15 Oil Seal 1 GB/T9877.1-88
14 ▲227000157-040614 油封BA150*180*15 Oil Seal 1 GB/T9877.1-88
15 ▲227000157-040615 轮毂 Hub 1 83020502
16 ▲227000157-040616 轴承32024 Bearing 1 GB/T297-94
17 ▲227000157-040617 轴承32026 Bearing 1 GB/T297-94
18 ▲227000157-040618 垫圈18 Washer 16 GB93-87
19 ▲227000157-040619 制动盘螺栓 Bolt 16 75502011
20 ▲227000157-040620 齿圈 Ring Gear 1 77500938BD
21 ▲227000157-040621 组合密封垫24 Compound Seal 1 JB982-77
22 ▲227000157-040622 螺塞M24*1.5 Plug 1 75500 195A
23 ▲227000157-040623 组合密封垫12 Compound Seal 1 JB982-77
24 ▲227000157-040624 螺塞M24*1.25*9 Plug 1 75500842
25 ▲227000157-040625 行星轮架 Spider 1 CY1450.2.1-1
26 ▲227000157-040626 调整支柱 Adjust Pin 1 77000133
27 ▲227000157-040627 端盖 Cover 1 79001544B
28 ▲227000157-040628 隔套 Sleeve 1 77000021
29 ▲227000157-040629 限位块 Block 1 73520042
