Description

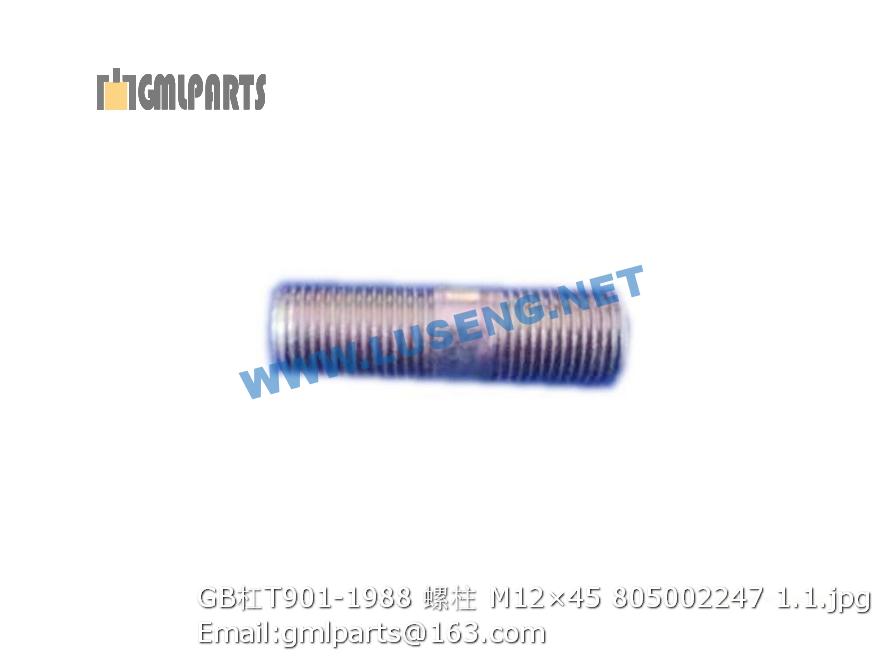

805002247 GB/T901-1988 BOLT M12×45
序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 231400509 支座 Bracket 1
2 805200117 螺母M24 Nut 1 GB/T6170-2000
3 805300034 垫圈24 Washer 1 GB/T93-1987
4 805300021 垫圈24 Washer 1 GB/T97.1-2002
5 805400044 挡圈62 Washer 2 GB/T893.1-1986
6 231400473 轴套 sleeve 1
7 231400474 油封盖 Cover 2
8 800511326 轴承6305 Bearing 2 GB/T276-1994
9 231400600 隔套 Sleeve 1
10 231400599 滚筒 Roller 1
11 231400508 轴 Shaft 1
12 801100339 油杯 M10×1 801100339 1 JB/T7940.2-1995
1 231400237 轴 Shaft 1
2 805300054 垫圈 20 Washer 1 JB/T982-1977
3 231400236 挡圈 Ring 1
4 800511301 轴承6204 Ball Bearing 2 GB／T276-94
5 805400037 挡圈 47 Baffle Ring 47 2 GB/T893.1-1986
6 231400234 惰齿轮 Gear 1
7 231400235 挡圈 Ring 1
8 231400233 挡圈 Ring 1
9 805300011 垫圈 16 Washer 1 GB/T 93-1987
10 805200210 螺母M16 Nut 1 GB/T6184-2000
11 231400246 下箱体 Box 1
12 231400552 变速箱垫 Washer 1
13 805000525 螺栓M6×20 Bolt 22 GB/T5783-2000
14 805300030 垫圈 6 Washer 6 32 GB/T93-1987
15 231400245 端盖 Cover 1
16 231400232 垫 Cushion 5
17 231401654 I轴装配 I shaft assembly 1
18 231400231 端盖 Cover 4
19 805601702 销8×35 Pin 1 GB/T118-1986
20 805100118 螺钉M8×40 Bolt 6 GB/T70.1-2008
21 805300010 垫圈 8 Washer 14
22 231400247 上箱体 Gearbox 1
23 805100223 螺钉M8×50 Bolt 6 GB/T70.1-2008
24 231400248 垫 Washer 1
25 231400227 箱盖 Cover 1
26 805000008 螺栓 M6×12 Bolt 10 GB/T5783-2000
27 231400249 螺塞 Plug 1
28 805601697 销10X40 Pin 1 GB/T117-1986
29 231400251 定位板 Orinating board 1
30 805200116 螺母 M16 Nut 1 GB/T6172.1-2000
31 231400252 角座 Seat 1
32 805100037 螺钉 M8×25 Screw 2 GB/T70.1-2000
33 227300221 球头螺钉 Bolt 1
34 231400228 油尺 Oil dipstick 1
35 801100166 O型圈15×2.65 O-ring 1 GB/T3452.1-1992
36 805602817 销8×50 Pin 1 GB/T118-1986
37 231400180 IV轴装配 Shaft assembly 1
38 231400547 拨叉 York 2
39 231400253 拨块 York 2
40 805601583 销6×40 Pin 2 GB/T119-1986
41 231400467 拨叉轴 Shaft 1
42 803166650 螺塞M12X1.5 Bolt 1 JB/T1000-1977
43 805300025 垫圈 12 Washer 1
44 231400225 III轴装配 III Shaft assembly 1
45 231400169 II轴装配 II Shaft assembly 1
46 805300032 垫圈 22 Washer 1 JB/T982-1977
47 803100382 螺塞M22×1.5 Plug 1 JB1000-1977
48 805300055 垫圈 30 WASHER 1 JB982-77
