Description

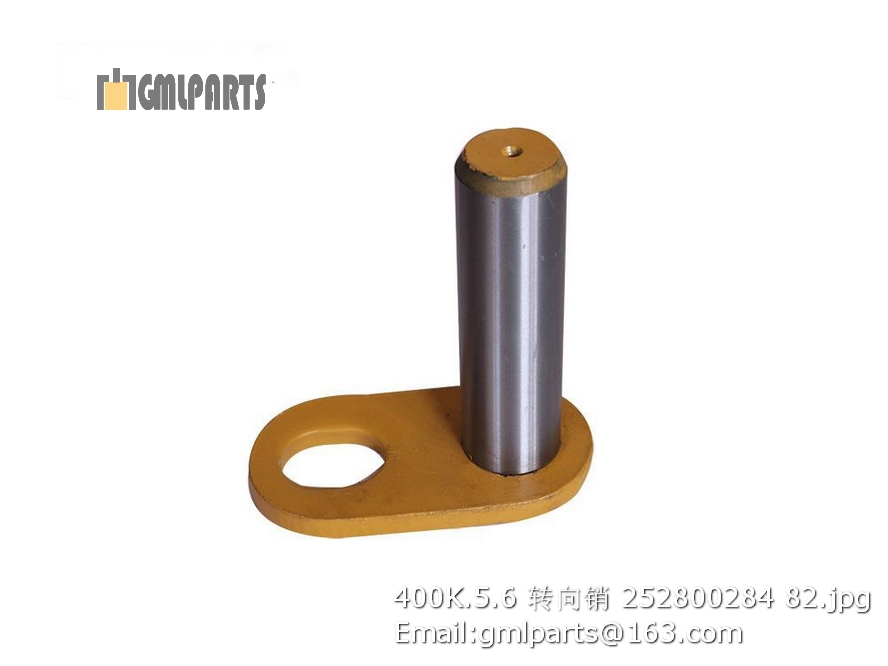

252800284 400K.5.6 Shaft Pin

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 ▲803004341-101210-01 防尘圈FC 100╳100╳7 FC Oil Seal 1 Q/DYJJ13006
2 ▲803004341-101210-02 Y形圈100X120X16 Y Seal Ring 1 GB10708.1
3 ▲803004341-101210-03 轴用组合封CKS1000 （O形圈106X5.3） Seal Ring 1
4 ▲803004341-101210-04 O形圈170X5.3 O-Ring 1 GB/T3452.1
5 ▲803004341-101210-05 杆用支承环G100X44.5X2.5 Snap 1
6 ▲803004341-101210-06 O形圈100X3.55 O-Ring 1 GB/T3452.1
7 ▲803004341-101210-07 孔用支承环S180X14.8X2.5 Supporting Ring 1
8 ▲803004341-101210-08 孔用组合封CKW1800 Seal Ring 2
9 ▲803004341-101210-09 O形密封圈 75X5.7 O-ring 1 GB1235-76
10 803045612 关节轴承GE80ES Joint Bearing 1 GB/T9163-2001
11 803073126 钢套Φ100×Φ80×60/2 Bush 1 XGYG01-137-9（张家口）
860104208 翻斗缸密封件 Tilt Cylinder Seal 1
860120304 50G/500K/500F转斗缸及800K动臂缸密封件(统型)(备件) Boom Cylinder Seal 1
