Description

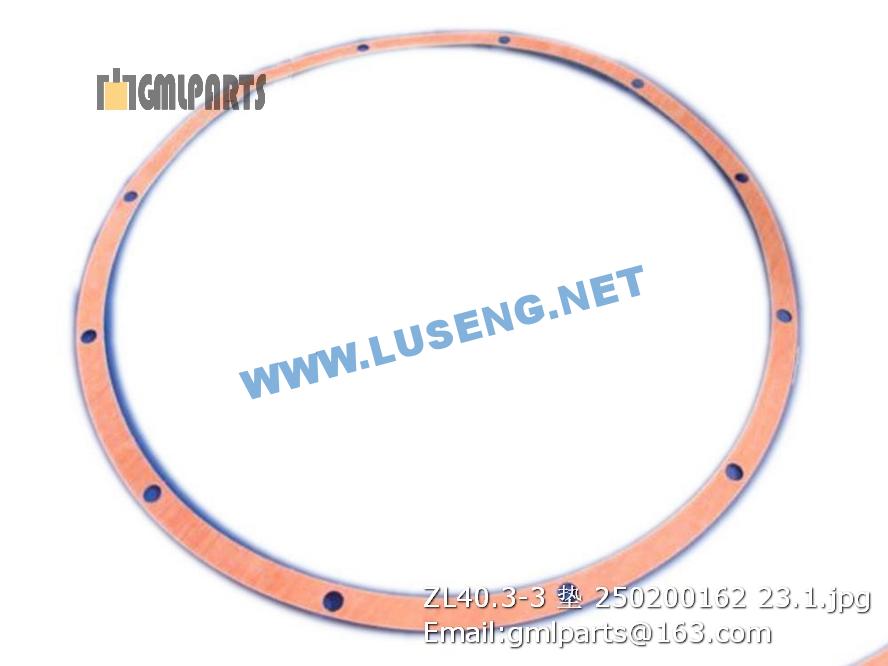

250200162 ZL40.3-3 GASKET XCMG

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 ▲230901721-0301 驾驶室焊接总成 Welding assembly of the cab 1
2 860118298 拉线总成 Guy assembly 2
3 805100280 螺钉M6×16 Screw 6
4 805300030 垫圈 6 Washer 6 7 GB/T93-1987
5 805300029 垫圈 6 Washer 6 7 GB/T97.1-2002
6 ▲230500680-6-4-2 锁支架 Lock support 2
7 ▲230500680-6-4-3 右限位板 Right restraint plane 1
8 805000018 螺栓 M8×20) Elbow 4
9 ▲230500680-6-4-4 注塑螺母帽M8 Injection screw cap 20
10 805201502 螺母 M8 12
11 ▲230500680-6-4-5 限位活动板 Restraint moveable plane 2
12 ▲230500680-6-4-6 平垫 Flat plate 10
13 805000089 螺栓 M8X35 Bolt 4 GB/T 5783-2000
14 860118299 右门焊接总成 The right door 1
15 860118300 门锁总成 Latch assembly 1
16 805300069 垫圈 8 Washer 8 8
17 805300010 垫圈 8 Washer 8
18 805000618 螺栓 M8×90 8 GB/5782-2000
19 ▲230500680-6-4-7 收录机支架 Radio recorder support 1
20 805100138 螺钉M6×25 Bolt 1
21 ▲230500680-6-4-8 左限位板 Left restraint plane 1
22 801100340 油杯M6×1 grease cup 4
23 227000170 轴 Shaft 4
24 227000171 套 Bushing 8
25 227000174 垫 Plate 4
26 805200080 螺母M10 Nut 4
27 860118301 左门焊接总成 The left door 1
28 860118302 门密封条 Door seal strips; 2
1 860118303 衣帽钩 Garment hook 2
2 805100409 螺钉M4X10 Bolt 6 GB/T818-2000
3 ▲230500680-6-5-1 救生锤 Lifesaving hammer 1
4 860118304 气弹簧 Gas spring 2
5 805300010 垫圈 8 Washer 8
6 805000018 螺栓 M8×20) Elbow 4
7 860118305 倒车镜支架 Wing mirror support 2
8 860118306 倒车镜 Wing mirror 2
9 805100280 螺钉M6×16 Screw 2
10 ▲230500680-6-5-2 MFZ/ABC2灭火器 Fire extinguisher 1
