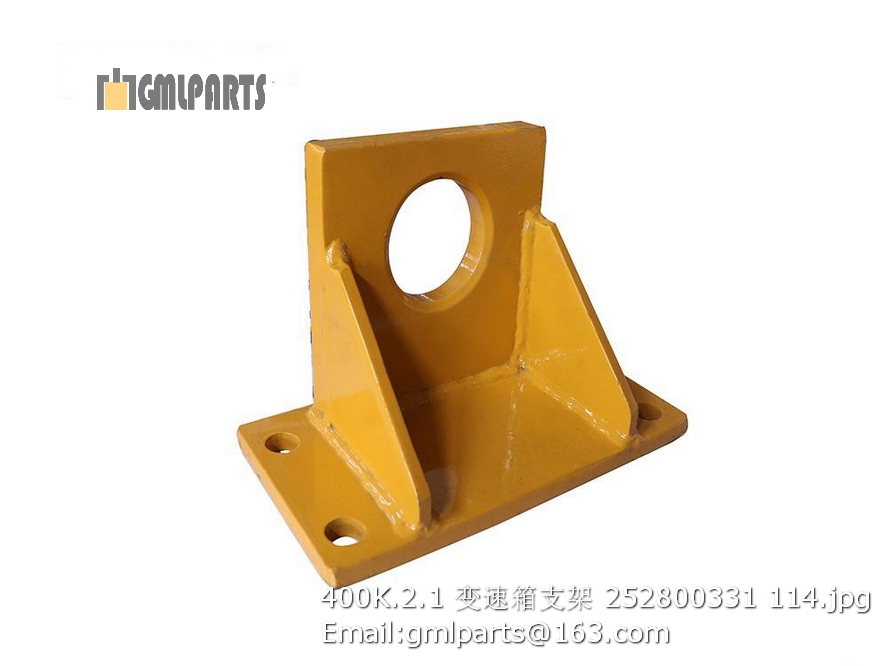

252800331 400K.2.1 Bracket of gearbox

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 803004039 液控多路阀 Valve 1
2 805002295 接头 Joint 5
3 805002251 螺柱M12X180 Bolt 3 GB/T901-1988
4 805204006 螺母 M12(达克罗) Nut 3 GB/T6177.1-2000

1 803004039-101516-01 阀体 Spool 1 D32-4
2 860111176 安全阀 Relief Valve 1
3 803004039-101516-02 螺塞 Plug 2 D32-3
4 803004039-101516-03 O形圈20X2.4 O—Ring 2 GB1235-76
5 803004039-101516-04 螺栓M12X30 Bolt 2 GB30-76
6 803004039-101516-05 垫圈12 Washer 2 GB93-87
7 803004039-101516-06 盖板 Cover 1 D32-11
8 803004039-101516-07 O形圈45X3.1 O—Ring 1 GB1235-76
9 803004039-101516-08 O形圈60X3.1 O—Ring 2 GB1235-76
10 803004039-101516-09 阀杆接头 Joint 2 D32-21
11 803004039-101516-10 弹簧 Spring 2 D32-8
12 803004039-101516-11 弹簧 Spring 2 D32-7
13 803004039-101516-12 内六角螺钉M10X45 Bolt 4 GB70-85
14 803004039-101516-13 弹簧座 Spring Seat 4 D32-6
15 803004039-101516-14 垫圈12 Washer 2 GB97.1-85
16 803004039-101516-15 螺栓M12X20 Bolt 2 GB30-76
17 803004039-101516-16 内六角螺钉M10X100 Bolt 4 GB70-85
18 803004039-101516-17 垫圈10 Washer 8 GB93-87
19 803004039-101516-18 端盖 Port End Cover 2 D32-5
20 860118159 过载阀（低压） Relief Valve 1
21 803004039-101516-19 补油阀 Valve 1 D32-15
22 803004039-101516-20 弹簧 Spring 1 D32-14
23 803004039-101516-21 O形圈50X3.1 O—Ring 3 GB1235-76
24 803004039-101516-22 补油阀盖 Port End Cover 1 D32-13
25 860111187 过载阀（高压） Relief Valve 1
26 803004039-101516-23 单向阀 Valve 3 D32-17
27 803004039-101516-24 弹簧 Spring 3 D32-16
28 803004039-101516-25 O形圈44X3.5 O—Ring 3 GB1235-76
29 803004039-101516-26 阀盖 Port End Cover 3 D32-19
30 803004039-101516-27 动臂阀杆 Lift Valve Staff 1 D32-2
31 803004039-101516-28 转斗阀杆 Tilt Valve Staff 1 D32-12
32 803004039-101516-29 端盖 Port End Cover 2 D32-1
