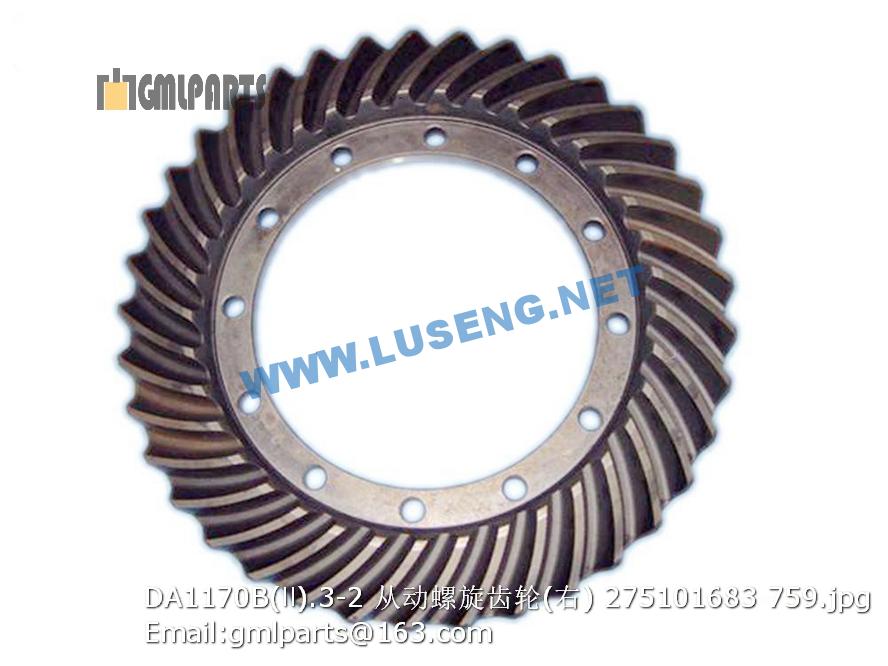

275101683 DA1170B(Ⅱ).3-2 Gear
序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 803198215 管夹 Pipe clip 1 ZCSNA1-428
2 803130746 接头 Joint 1 LZ28L
3 803130752 接头 Joint 1 YZ28L
4 803130747 接头 Joint 1
5 803131469 胶管 Rubber hose 1 M481CACF22212-5000-PG
6 402202582 管夹 Pipe clip 4
7 402200881 钢管 Steel tube 1
8 803303907 接头 Joint 2 IE18LG1/2ED
9 803131981 二通球阀 Two-way ball valve 2 KH1/2X
10 402100669 接头 Joint 2 WZ30.09.03.01-17
11 402100964 堵头 Joint 2 WZ30.09.03.01-18
12 819941710 破碎锤（进口） Broken hammer 1
13 402200882 钢管 Steel tube 1
14 803130641 胶管 Rubber hose 1 F381CACA181810-7300-PG
15 803131471 胶管 Rubber hose 2 M381C91C202012-600
16 803131474 接头 Joint 2 IE20SG3/4ED
17 803190720 接头 Joint 1 IE18LG3/4ED
18 805000656 螺栓M8×60 10.9(达克罗) Bolt 2 GB/T16674.1-2004
19 805300010 垫圈 8 Washer 2
20 803043406 破碎锤控制阀 803043406 1 VPR/3/EP34/VMP+VE/LPD
21 803130790 胶管 Rubber hose 1 M481CACF101005-1170
22 803130742 接头 1 LZ10L
23 401002034 接头 1 IE10LG1/4ED
1 803130746 接头 Joint 2 LZ28L
2 803165791 接头 Joint 2 I28LM33×2ED
3 803300991 胶管 Rubber hose 2 M481CACF282816-1150
4 805300017 垫圈10 Washer 24 GB/T97.1-2002
5 805300014 垫圈 10 Washer 24 GB/T93-1987
6 803130022 O型圈 32.92×3.53 8
7 803300989 胶管 Rubber hose 1 M481CACF282816-2850
8 801902712 喉箍 B33-57 Hose 4
9 402200228 吸油软管 Oil suction hose 1
10 402201433 吸油钢管总成 Oil suction steel tube assembly 1
11 805004736 螺栓M10*35 Bolt 4 GB/T5783-2000
12 801100662 O形圈 12×1.9 O-ring 1 GB/T1235-1976
13 803043501 齿轮泵 803043501 1 1123031157
14 805300013 垫圈16 Washer 4 GB/T 97.1-2002
15 805300011 垫圈 16 Washer 4 GB/T 93-1987
16 805000660 螺栓 M16×40 10.9 805000660 4 GB/T5783-2000
17 803131776 法兰夹 Flange block 1 FJQ-16
18 803131112 胶管 Rubber hose 1 M381CA1C222012-800
19 803130801 弯头 1
20 803130803 接头 Joint 2
22 803130791 胶管 Rubber hose 1 M481CACF101005-1280
23 803130822 堵头 Plug 1
24 402200883 接头 Joint 2 XT870.3.1.1一1
25 803043431 装载多路阀 Load multi-way valve 1 SDS180/2/BD(XG-210)
26 402200945 接头 Joint 3 XT870.3.3一3
27 803130765 胶管 Rubber hose 2 M381C91C202012-910
28 803043472 挖掘多路阀 Excavation multi-way valve 1 SDS186/6/AC(SV)R2E-12VDC
29 805000727 螺栓M10X25 Bolt 12 GB/T5783-2000
