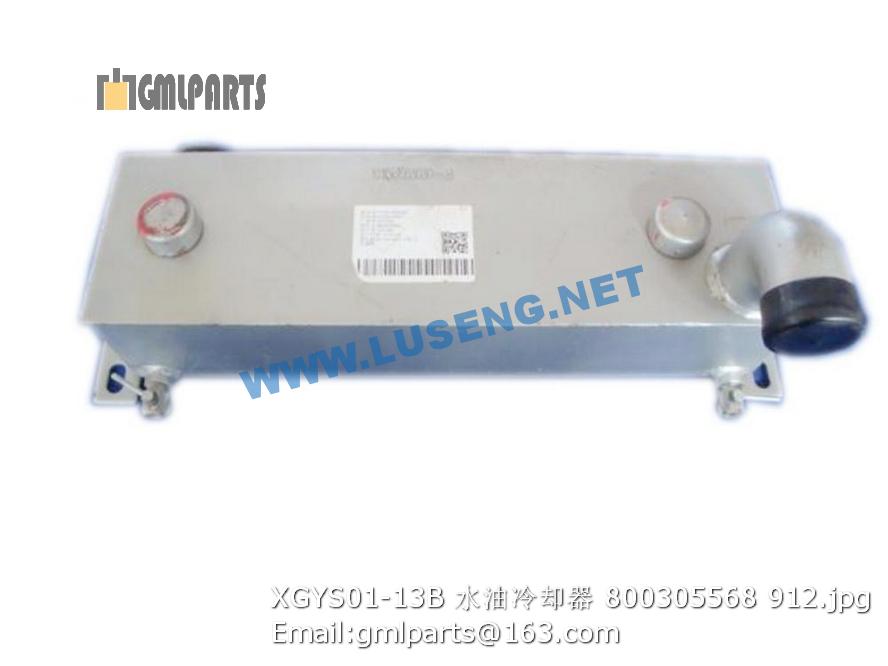

800305568 XGYS01-13B T/C Radiator

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 ▲228702659-000101 机油滤芯 Oil filter core 1 DEUTZ BF6M1013EC
2 ▲228700219-000104 燃油粗滤滤芯 Pre-fuel filter core 2
3 ▲228702659-000102 燃油粗滤芯 Fine fuel filter core 1 DEUTZ BF6M1013EC
5 803164592 液压油滤清器 Hydraulic oil filter elememt 1
6 860112734-01 主滤芯 Air cleaner core, main 1 AH19227
7 860112734-02 安全滤芯 Air cleaner core,safety 1 AH19227
8 860112734 空滤器滤芯 Air cleaner core 1 AH19227
1 228702660 车架装配 Frame Assembly 1
2 228702661 振动轮(光轮) Drum 1
3 228700153 传动系统 Transition System 1
4 228702242 动力系统 Engine System 1 Ⅶ
5 228702870 仪表箱及操纵系统 Instrument Panel And Control System 1 配DEUTZ发动机
6 228702663 驾驶室装配 Cab assembling 1
7 228702234 电气系统 Electric system 1 Ⅶ
7 228702867 电气系统 Electric System 1 配DEUTZ发动机
8 228702868 液压系统 Hydraulic System 1 配DEUTZ发动机
9 228702746 发动机罩 Engine hood 1
10 228700434 刮泥板 Scraper 1
11 228702830 标记安装 Plate And Decals 1
12 228702245 空调系统 Air-Conditioner System 1 Ⅶ
1 228600280 可调刮齿 Scraper 18
2 228600281 固定板 Board 18
3 805301377 垫圈 16(达克罗) Wahser 52
4 805000026 螺栓 M16×45 Bolt 36 GB/T 5783-2000
5 228702768 前梁 Front girder 1 XS202XII
5 228702664 前梁 Front girder 1 XS202XI
6 805000051 螺栓 M16×40 Bolt 16 GB/T5783-2000
7 228700704 刮泥板Ⅱ Scraper 2
8 228700703 刮泥板Ⅰ Scraper 2
9 805002127 螺栓M24×2×120 Bolt 8 GB/T5785-2000
10 805300021 垫圈24 Washer 8 GB/T97.1-2002
11 228702761 调整垫 Shim 1
12 228702762 调整垫 Shim 1
13 805000008 螺栓 M6×12 Bolt 8 GB/T5783-2000
14 805300030 垫圈 6 Washer 6 8 GB/T93-1987
15 228700369 板 Board 2
16 228702665 压轮框架 Frame 1 XS202XI
16 228702769 压轮框架 Frame 1 XS202XII
17 805000616 螺栓 M8×12 Bolt 1 GB/T5783-2000
18 228700367 防尘盖 Prevent dust cover 1
19 805000048 螺栓M12X35 Bolt 12 GB/T5783-2000
20 805300018 垫圈12 washer 12 12 GB/T93-1987
21 801100336 黄油嘴M10X1 Grease Nipple 4 JB/T7940.1-1995
22 228700370 盖 Cover 2
23 228700371 垫 Washer 6
24 800511347 轴承 GAC85S/K Bearing 0 GB/T304-2002
25 228700373 V型圈 V-ring 0
26 228700391 转向铰接 Steering hitch 1
27 228700375 V型圈 V-ring 1
28 228700374 调整垫 Shim 2
29 228700372 盖 Cover 1
30 805101805 螺钉M12×16 Bolt 3 GB/T77-2000
31 805000560 螺栓M24×70 Bolt 12 GB/T5782-2000
32 228700275 连接板 Plank 1
33 228700273 销 Pin 2
1 805300017 垫圈10 Washer 22 GB/T97.1-2002
2 805300014 垫圈 10 Washer 22 GB/T93-1987
3 805000727 螺栓M10X25 Bolt 6 GB/T5783-2000
4 228900625 电瓶箱 Battery Box 1
5 228702771 牵引车架 Rear Frame Assembly 1 XS202XII
5 228702775 牵引车架 Rear Frame Assembly 1 XS202XI
6 226803050 梯子 LADDER 1
7 805000068 螺栓 M10×16 Bolt 6 GB/T5783-2000
8 228700697 板 PLATE 1
9 801968749 橡胶条 Rubber 1
10 228702423 封板 PLATE 1
11 805300069 垫圈 8 Washer 8 4
12 805300010 垫圈 8 Washer 4
13 805000017 螺栓 M8×25 bolt 4 GB/T5783-2000
14 805200080 螺母M10 Nut 6
15 805000713 螺栓 M10×45 Bolt 6 GB/T5783-2000
16 805300020 垫圈12 Washer 6 GB/T97.1-2002
17 805300018 垫圈12 washer 12 6 GB/T93-1987
18 805000045 螺栓M12X40 Bolt 6 GB/T 5783-2000
19 228702759 左支架焊接 left Bracket 1
20 228702756 右支架焊接 RIGHT Bracket 1
21 805000029 螺栓 M10×40 Bolt M10×40 4 GB/T5783-2000
22 228700556 油缸支座 hydro-cylinder supporter 2
23 228700690 垫片 Washer 2
24 803176572 燃油加油滤清器 Filter 2 每1000小时或半年更换，以先到为准change every 1000 hours or half a year(whichever comes first)
25 228702368 油箱盖 CAP 2
26 228700210 垫 Washer 2
27 228702653 燃油箱焊接 Fuel tank 1
28 228700266 磁性螺栓 MAGNETISM BOLT 2
29 805301379 垫圈 20(达克罗) WASHER 12 DIN6796
30 805000507 螺栓M20×80 Bolt 6 GB/T5783-2000
31 805000106 螺栓M20×60 BOLT M20×60 6 GB/T5783-2000
32 228702649 液压油箱焊接 Hydraulic oil tank 1
33 228702431 护套 protecting bush 1
