Description

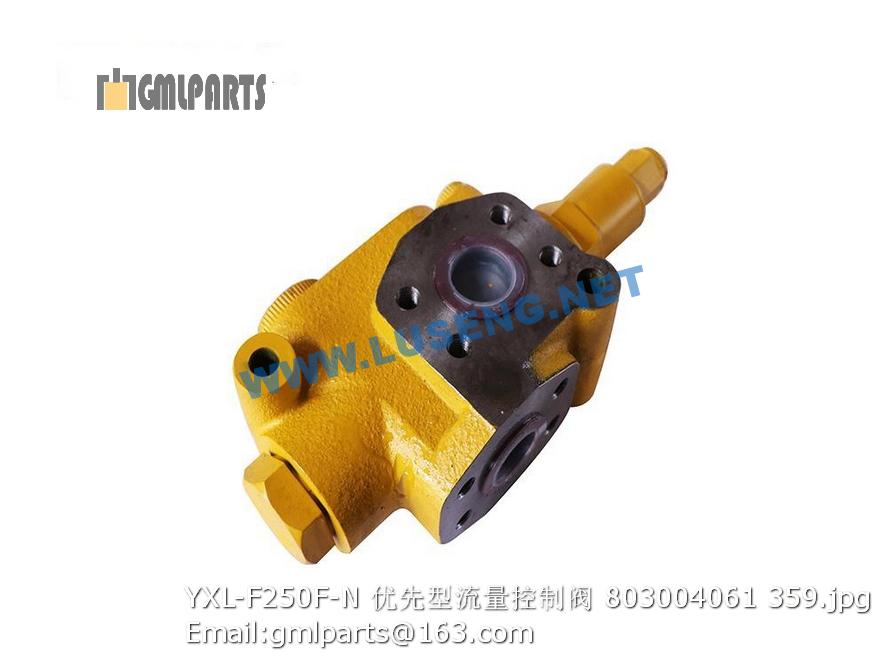

803004061 YXL-F250F-N Priority valve

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 ▲228900473-000101 机油滤芯 Oil filter core 1 DEUTZ BF6M1013ECP
2 ▲228700219-000104 燃油粗滤滤芯 Pre-fuel filter core 1
3 ▲228900473-000102 燃油精滤滤芯 Fine fuel filter core 1 DEUTZ BF6M1013ECP
5 803164592 液压油滤清器 Hydraulic oil filter elememt 2
6 860112734-01 主滤芯 Air cleaner core, main 1 AH19227
7 860112734-02 安全滤芯 Air cleaner core,safety 1 AH19227
8 860112734 空滤器滤芯 Air cleaner core 1 AH19227
1 228900603 车架装配 FRAME ASSEMBLY 1
2 228900676 振动轮装配 1
3 228900489 传动系统 Transition system 1
4 228900374 动力系统(BF6M1013EC) Engine System 1
5 228900523 仪表箱及操纵系统 Instrument Panel And Control System 1
6 228700533 驾驶室装配 Cab assembling 1
7 228702234 电气系统 Electric system 1 Ⅶ
8 228900371 液压系统（Ⅱ） Hy System 1
9 228900369 机罩总成 Engine Hood 1
10 228700434 刮泥板 Scraper 1
11 228900606 标记安装 plate and decals 1
12 228901051 空调系统 Air-Conditioer System 1
13 228900554 随机工具 ATTACHED TOOLS 1
1 228900550 前梁 Front girder 1
2 805301377 垫圈 16(达克罗) Wahser 16
3 805000051 螺栓 M16×40 Bolt 16 GB/T5783-2000
4 228700704 刮泥板Ⅱ Scraper 2
5 228700703 刮泥板Ⅰ Scraper 2
6 228900149 调整垫 Shim 2
7 228900150 调整垫 Shim 2
8 805300021 垫圈24 Washer 12 GB/T97.1-2002
9 80502127 螺栓M24×2×120 BOLT M24×2×70 12
10 228900728 压轮框架 Frame 1
11 805300030 垫圈 6 Washer 6 8 GB/T93-1987
12 805000008 螺栓 M6×12 Bolt 8 GB/T5783-2000
13 228900300 板 PLATE 2
14 228700273 销 Pin 2
15 801100336 黄油嘴M10X1 Grease Nipple 4 JB/T7940.1-1995
16 228700275 连接板 Plank 1
17 805000616 螺栓 M8×12 Bolt 1 GB/T5783-2000
18 228700367 防尘盖 Prevent dust cover 1
19 805000048 螺栓M12X35 Bolt 12 GB/T5783-2000
20 805300018 垫圈12 washer 12 12 GB/T93-1987
21 228700370 盖 Cover 2
22 228700371 垫 Washer 6
23 800511347 轴承 GAC85S/K Bearing 4 GB/T304-2002
24 228700373 V型圈 V-ring 2
25 228700391 转向铰接 Steering hitch 1
26 228700375 V型圈 V-ring 1
27 228700374 调整垫 Shim 2
28 805000560 螺栓M24×70 Bolt 12 GB/T5782-2000
29 228700372 盖 Cover 1
30 805101805 螺钉M12×16 Bolt 3 GB/T77-2000
31 805300023 垫圈 20 Washer 20 12 GB/T93-1987
