Description

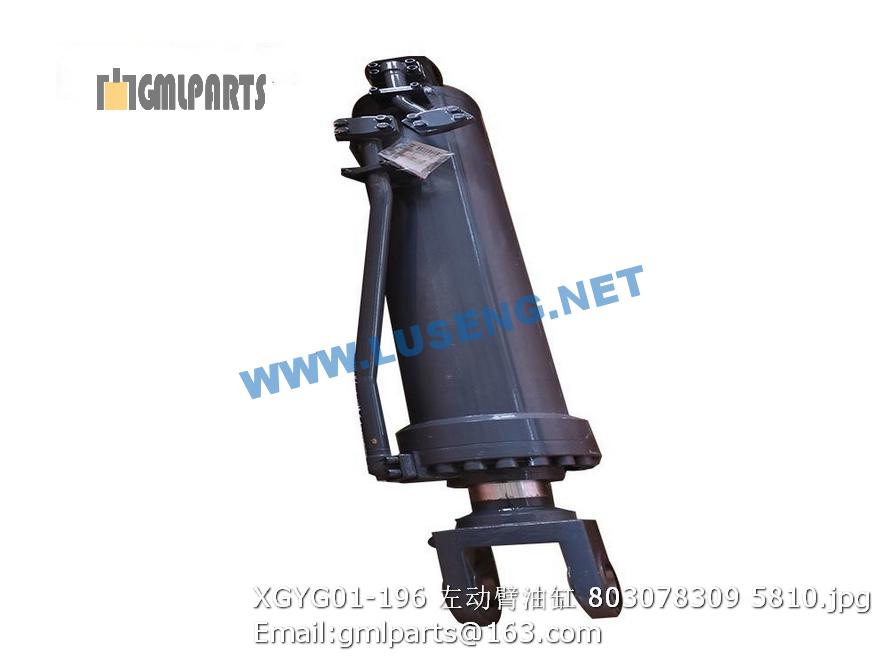

803078309 XGYG01-196 XCMG LEFT LIFT CYLINDER

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 ▲228800433-0481 尼龙锁紧螺母 Nut 1 GB889-80
2 ▲228800433-0482 垫片 Washer 1 PR75·23A·1-1
3 ▲228800433-0483 法兰齿轮 Gear 1 J6·3A-I-1
4 ▲228800433-0484 太阳齿轮轴 Spindle 1 J6·3A-7
5 ▲228800433-0485 连接体 Binding Mechanism 1 J6·3A-8
6 ▲228800433-0486 油封 FB65×90×10B Oil Seal 1 GB9877.1-88
7 ▲228800433-0487 轴承 209 Bearing 2 GB276-84
8 ▲228800433-0488 轴承调整垫片 Adjusting Washer 1 ZL15·2·5·1-4
9 ▲228800433-0489 隔套 Sleeve 1 J6·3A-5
10 ▲228800433-0490 螺栓 M10×30 Bolt 9 GB5783-86
11 ▲228800433-0491 垫圈 10 Washer 9 GB93-87
12 ▲228800433-0492 轴承座 Bearing Cage 1 J6·3A-6
13 ▲228800433-0493 O型密封圈 φ178×3.55 O-Ring 1 GB3452.1-82
14 ▲228800433-0494 钢球 φ5 Steel ball 3 GB308-84
15 ▲228800433-0495 行星轴 Planetary Pin 3 J6·3A-9
16 ▲228800433-0496 行星轮挡圈 Circlip 6 ZL15·2·2-3
17 ▲228800433-0497 滚针 3×30 Roll 87 GB309-84
18 ▲228800433-0498 行星轮 Planet Gear 3 J6·3C-6
19 ▲228800433-0499 行星架 Spider 1 J6·3C-4
20 ▲228800433-0500 O型密封圈 φ178×3.55 O-Ring 1 ZL10·2-2A
21 ▲228800433-0501 挡圈 Circlip 2 PR75·23-7
22 ▲228800433-0502 齿圈 Ring Gear 1 J6·3C-3
23 ▲228800433-0503 圆螺母 Nut 1 J6·3 –9
24 ▲228800433-0504 垫圈 8 Washer 1 GB93-87
25 ▲228800433-0505 内六角螺钉 M8×16 Bolt 1 GB70-85
26 ▲228800433-0506 支撑盘 Surpporting Device 1 J6·3C –1
27 ▲228800433-0507 垫圈 Washer 1 J6·3-10
28 ▲228800433-0508 螺栓 M14×65 Bolt 8 GB1228-84
29 ▲228800433-0509 垫圈 14 Washer 8 GB93-87
30 ▲228800433-0510 箱体 Box 1 J6·3C-2
31 ▲228800433-0511 垫圈 14 Washer 8 GB1230-84
32 ▲228800433-0512 连接螺栓 M14×1.5×200 Bolt 8 J6·3A-2
33 ▲228800433-0513 销 A12×32 Pin 1 GB119-86
34 ▲228800433-0514 组合垫圈 8 Compound Seal Washer 1 JB982-77
35 ▲228800433-0515 螺栓 M8×20 Bolt 1 GB5783-86
36 ▲228800433-0516 密封垫 Washer 2 PC40·1-4
37 ▲228800433-0517 垫盘 Washer 1 J6·3C-7
38 ▲228800433-0518 组合垫圈 20 Compound Seal Washer 2 JB982-77
39 ▲228800433-0519 螺塞 M20×1.5 Plug 2 ZL15·2-10
1 ▲228800433-0446 圆锥滚子轴承 27310 Bearing 1 GB298-94
2 ▲228800433-0447 调整垫片 Adjusting Washer 1 PC40·1-22
3 ▲228800433-0448 隔套 Sleeve 1 PC40·1-8
4 ▲228800433-0449 密封垫 Washer 1 PC40·1-4
5 ▲228800433-0450 轴承套 Bearing Cage 1 PC40·1-7
6 ▲228800433-0451 调整垫片 Adjusting Washer 1 PC40·1-5
7 ▲228800433-0452 圆锥滚子轴承 27311 Bearing 1 GB298-94
8 ▲228800433-0453 主动螺旋伞齿轮 Helix Gear 1 PR75·23A·1-4
9 ▲228800433-0454 圆柱滚子轴承 92606 Bearing 1 GB283-97
10 ▲228800433-0455 挡圈 30 Circlip 1 GB894.1-86
11 ▲228800433-0456 托架 Bracket 1 PC40·1-9B
12 ▲228800433-0457 垫片 22 Washer 4 GB1230-84
13 ▲228800433-0458 托架螺栓 M22×2×100 Bolt 4 PC40·1-23
14 ▲228800433-0459 组合垫圈 27 Nut 1 JB982-77
15 ▲228800433-0460 堵头 Bolt 1 PQ20·6C·1-1
16 ▲228800433-0461 调整螺母 Adjusting Nut 2 PC40·1-12
17 ▲228800433-0462 锁紧片 Lock Plate 2 ZL30·06·1-17
18 ▲228800433-0463 轴承盖 Cover 2 PC40·1-16
19 ▲228800433-0464 锁片 Lock Plate 2 ZL30·06·1-15
20 ▲228800433-0465 螺栓 M8×20 Bolt 4 GB5783-2000
21 ▲228800433-0466 圆锥滚子轴承 7515 Bearing 4 GB297-94
22 ▲228800433-0467 差速器右壳 Diff.Case 1 PR75·23A·1-14
23 ▲228800433-0468 差速器壳螺栓 Bolt 8 PC40·1-17
24 ▲228800433-0469 垫片 14 Washer 8 GB1230-84
25 ▲228800433-0470 定位销 A6×8 Pin 2 GB119-86
26 ▲228800433-0471 差速器左壳 Diff.Case 1 PC40·1-13
27 ▲228800433-0472 半轴齿轮垫片 Washer 2 PC40·1-15A
28 ▲228800433-0473 半轴齿轮 Side Gear 2 PC40·1-14
29 ▲228800433-0474 球面垫圈 Spherical Washer 4 PR75·23A·1-8
30 ▲228800433-0475 差速器行星齿轮 Side Pinion 4 PC40·1-11
31 ▲228800433-0476 十字轴 Differential Cross 1 PC40·1-18A
32 ▲228800433-0477 螺栓 M16×57 Bolt 12 PR75·23A-15
33 ▲228800433-0478 大螺旋伞齿轮 Helix Gear 1 PR75·23A·1-18
34 ▲228800433-0479 垫片 16 Washer 12 GB1230-84
35 ▲228800433-0480 螺母 M16 Nut 12 GB1229-1991
