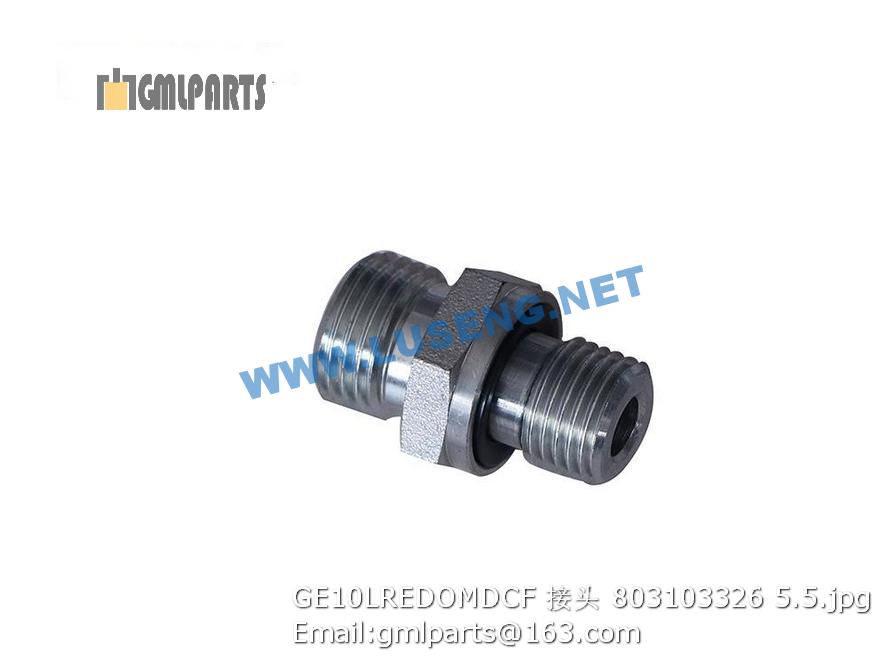

803103326 GE10LREDOMDCF JOINT XCMG
序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 ▲225600309-0401 上盖 upper cover 1
2 ▲225600309-0402 圆柱销 cylindrical pin 2
3 ▲225600309-0403 堵盖总成 Cover assembly 5
4 ▲225600309-0404 变速叉-第三、四速 transmission fork-third and fourth speed 1
5 ▲225600309-0405 变速叉轴-第一二速 change shaft-first and second speed 1
6 ▲225600309-0406 变速叉轴-第三速 Shift shaft-third speed 1
7 ▲225600309-0407 变速叉-第一二速 transmission fork-first and second speed 1
8 ▲225600309-0408 变速叉-倒一二速 transmission fork-first and second reversing speed 1
9 ▲225600309-0409 变速叉轴-倒一二速 change shaft-reversing first-and-second speed 1
10 ▲225600309-0410 弹簧-变速叉轴自锁用 Spring-for Change shaft self-latch 3
11 ▲225600309-0411 钢球-变速叉轴自锁用 locking ball-change shaft self-latch 3
12 ▲225600309-0412 六角头螺塞（螺栓） hexagonal nut 1
13 ▲225600309-0413 互锁块-变速叉轴自锁用 self-latch block- change shaft self-latch 2
14 ▲225600309-0414 互锁锁-变速叉轴自锁用 Self-latch- change shaft self-latch 1
15 ▲225600309-0415 变速导块-倒一二速 shifting slider-first and second speed reversing 1
16 ▲225600309-0416 变速导块-第三速 shifting slider-third speed 1
17 ▲225600309-0417 弹簧销-锁变速叉及导块用 spring pin-lock the transmission fork and the shifting slider 3
1 ▲225600309-0501 顶盖-变速器 roof panel-gearbox 1
2 ▲225600309-0502 止动螺钉 retaining bolt 1
3 ▲225600309-0503 堵盖总成 Cover assembly 1
4 ▲225600309-0504 换档拨头-顶盖 shifting block-roof panel 1
5 ▲225600309-0505 止柱 locking column 1
6 ▲225600309-0506 大螺塞 big plug screw 2
7 ▲225600309-0507 大弹簧 big spring 1
8 ▲225600309-0508 钢球-止柱自锁用 locking ball-locking column self-latch 2
9 ▲225600309-0509 小弹簧-三档 small spring-three gear 1
10 ▲225600309-0510 小螺塞 small plug screw 2
11 ▲225600309-0511 选档臂 selector lever 1
12 ▲225600309-0512 小弹簧-倒一二档 small spring-booster and reverse 2
13 ▲225600309-0513 止柱 locking column 1
14 ▲225600309-0514 通气塞 air plug 1
15 ▲225600309-0515 十字头螺钉-紧固挡片用 crosshead bolt-fasten the splash block 1
16 ▲225600309-0516 挡片-通气孔 splash block-venthole 1
17 ▲225600309-0517 轴用弹性挡圈 gear elastic shielding ring 1
18 ▲225600309-0518 垫圈 washer 2
19 ▲225600309-0519 O形圈 O-ring 1
20 ▲225600309-0520 选档轴及拨杆总成 selector lever and control lever assembly 1
21 ▲225600309-0521 换档轴及换档臂总成 shifting gear and shifting arm assembly 1
22 ▲225600309-0522 O形圈 O-ring 1
23 ▲225600309-0523 空档信号开关 Signal Switch for neutral gear 1
24 ▲225600309-0524 弹簧 spring 1
25 ▲225600309-0525 钢球 Steel ball 1
