Description

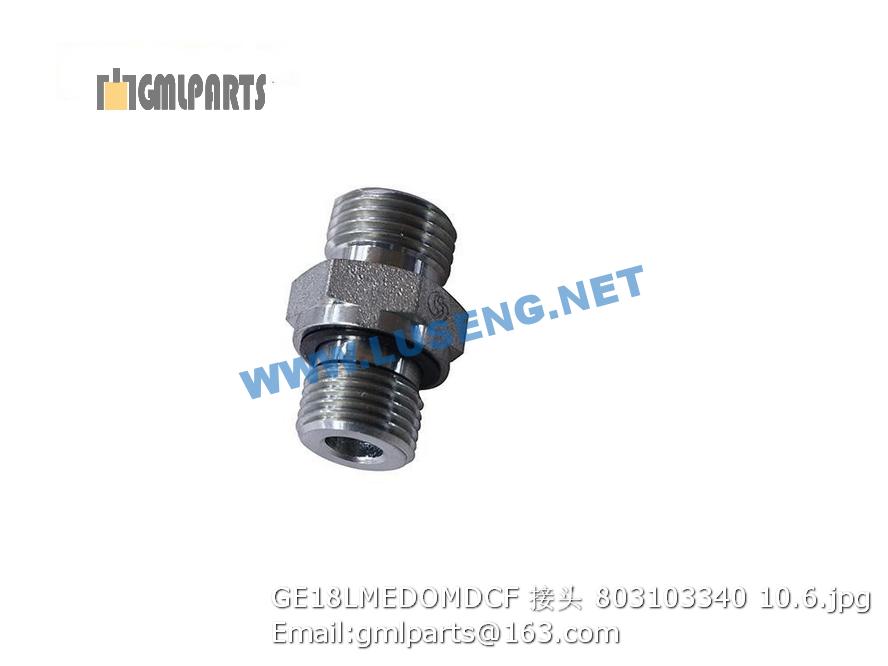

803103340 GE18LMEDOMDCF XCMG JOINT

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 801100336 黄油嘴M10X1 Grease Nipple 4 JB/T7940.1-1995
3 226801732 胶管总成5-A11-600 Pipe 2
4 225600894 接头 Joint 2
5 225600853 后车架 1
6 805300014 垫圈 10 Washer 6 GB/T93-1987
7 805000727 螺栓M10X25 Bolt 6 GB/T5783-2000
8 225600611 储气筒箱 Air tank 1
9 805300112 垫圈 20 Washer 20 20 GB/T97.1-2002
10 805001983 螺栓 M20×60 6
11 226800433 磁芯 magnetic core 1
12 225600566 侧门焊接 Side-door jointing 1
13 225600520 电瓶箱焊接 Battery tank jointing 1
14 225600342 底板 Bottom plate 1
15 805000379 螺栓 M20×70 Bolt 8 GB/T5783-2000
16 228700266 磁性螺栓 MAGNETISM BOLT 2
17 225600525 油箱焊接 Oil tank jointing 1
18 226800436 垫 Washer 1
19 225600674 油箱盖 Oil tank cover 1
20 805300010 垫圈 8 Washer 26
21 805000018 螺栓 M8×20) Elbow 20
22 803176572 燃油加油滤清器 Filter 1 每1000小时或半年更换，以先到为准change every 1000 hours or half a year(whichever comes first)
23 805000616 螺栓 M8×12 Bolt 6 GB/T5783-2000
24 225600320 密封垫 Pressurize 1
25 805000235 螺栓 M20×30 Bolt 6 GB/T 5783-2000
26 225600318 油箱焊接 Oil tank jointing 1
27 225600319 盖板 Cover plate 1
28 800101519 空气滤清器 Air filter 1
29 803164536 液位计 OIL LEVEL AND TEMPERATURE METER 1
