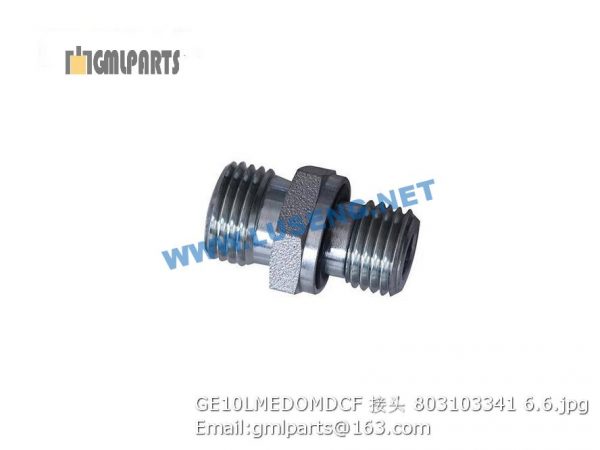

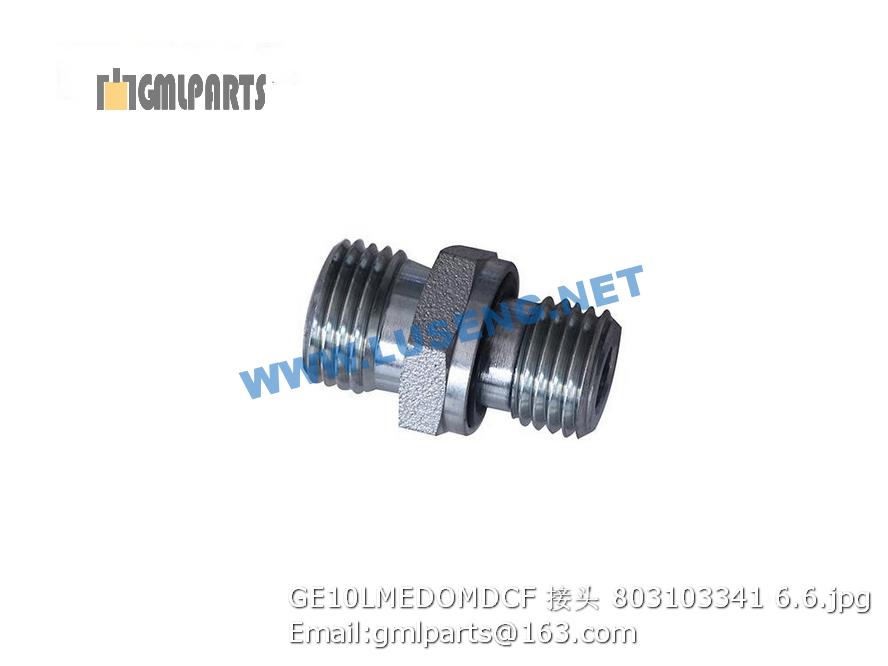

803103341 GE10LMEDOMDCF JOINT XCMG ZL50GV
序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 ▲225600309-011701 中间轴传动齿轮CAGF5-90T1 countershaft driving gear 1
2 ▲225600309-011702 中间轴传动齿轮 countershaft driving gear 1
3 ▲225600309-011703 中间轴三档齿轮 countershaft three speed gear 1
4 ▲225600309-011704 中间轴齿轮 countershaft gear 1
5 ▲225600309-011705 圆柱滚子轴承 cylindrical roller bearing 1
6 ▲225600309-011706 轴用档圈 gear shielding ring 1
7 ▲225600309-011707 锁片-中间轴组件总成 retain lock-countershaft components assembly 1
8 ▲225600309-011708 锁紧螺母-中间轴组件总成 locknut- countershaft components assembly 1
1 ▲225600309-011801 惰轮轴 idler shaft 1
2 ▲225600309-011802 垫圈-倒惰齿轮滚针轴承 Washer-reversing idler needle bearing 1
3 ▲225600309-011803 隔套-倒惰齿轮滚针轴承 spacer tube-reversing idler needle bearing 1
4 ▲225600309-011804 倒车惰轮 reversing idler 1
5 ▲225600309-011805 滚针轴承-倒车惰轮 needle bearing- reversing idler 2
6 ▲225600309-011806 O形圈 O-shaped packing 1
7 ▲225600309-011807 锁片-倒档轴 retain lock-for reversing gear 1
8 ▲225600309-011808 螺栓-紧固锁片用 bolt-to fasten the retain lock 1
9 ▲225600309-011809 弹簧垫圈 spring washer 1
1 ▲225600309-012101 主动齿轮-传动箱 driving gear-driving gearbox 1
1 ▲225600309-012102 轴承-主动齿轮 bearing-driving gear 1
1 ▲225600309-012103 轴用弹性挡圈 elastic shielding ring for gears 1
