Description

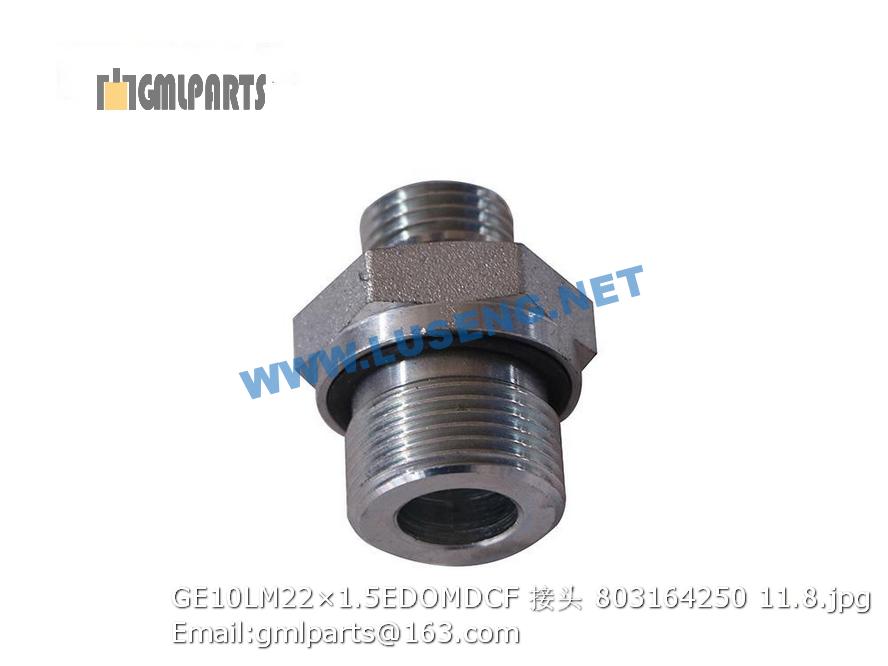

803164250 GE10LM22×1.5EDOMDCF JOINT

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 ▲225600309-0101 二速齿轮 Second Speed Gear 1
2 ▲225600309-0102 第一二速同步器总成 First-and-Second Synchroshifter Assembly 1
3 ▲225600309-0103 变速叉-第一二速 First-and-Second Speed Transmission Fork 1
4 ▲225600309-0104 换档拨头-顶盖 Shifting Block–Roof Panel 1
5 ▲225600309-0105 倒一速齿轮 First Speed Reversing Gear 1
6 ▲225600309-0106 变速叉-倒一二速 Transmission Fork– First-and-Second Speed Reverse 1
7 ▲225600309-0107 一速齿轮 First Speed Gear 1
8 ▲225600309-0108 变速叉轴 Shift york shaft 1
9 ▲225600309-0109 变速叉-第三四速 Transmission Fork—Third-and-fourth Speed 1
10 ▲225600309-0110 第三四速同步器总成 Third-and-fourth Speed Synchroshifter Assembly 1
11 ▲225600309-0111 第一轴总成 Primary Shaft 1
12 ▲225600309-0112 三速齿轮 Three Speed Gear 1
13 ▲225600309-0113 中间轴 Countershaft 1
14 ▲225600309-0114 轴承NJ310E Bearing 1
15 ▲225600309-0115 中间轴传动齿轮 Countershaft Driving Gear 1
16 ▲225600309-0116 中间轴三速齿轮 Countershaft Three Speed Gear 1
17 ▲225600309-0117 中间轴总成 Countershaft Assembly 1
18 ▲225600309-0118 倒车轴总成 Reversing Shaft Assembly 1
19 ▲225600309-0119 倒速同步器总成 First and Second Speed Reversing Synchroshifter Assembly 1
20 ▲225600309-0120 倒二速齿轮 Second Speed Reversing Gear 1
21 ▲225600309-0121 主动齿轮总成 Driving Gear Assembly 1
22 ▲225600309-0122 第二轴总成 Main Shaft 1
23 ▲225600309-0123 油封总成-前壳 Oil Seal Assembly–Front Case 1
24 ▲225600309-0124 轴承192315K Bearing 1
25 ▲225600309-0125 惰轮轴总成 Idler Shaft Assembly 1
26 ▲225600309-0126 轴承NUP311ENR Bearing 1
27 ▲225600309-0127 输出轴总成 Output Shaft Assembly 1
1 ▲225600309-011101 第一轴 CAGF5-90T1 primary shaft 1
2 ▲225600309-011102 卡环-固定第一轴轴承 check ring-to fix the primary shaft 1
3 ▲225600309-011103 轴用挡圈shaft Collar 1
4 ▲225600309-011104 圆柱滚子轴承 Cylindrical roller bearing 1
5 ▲225600309-011105 隔环-固定圆柱滚子用 Spacer ring- to fix the cylindrical roller 2
6 ▲225600309-011106 卡环-固定圆柱滚子用 Clamp ring 1
7 ▲225600309-011107 圆柱滚子 cylindrical roller 19
8 ▲225600309-011108 圆柱滚子 cylindrical roller 19
9 ▲225600309-011109 圆柱滚子 cylindrical roller 19
