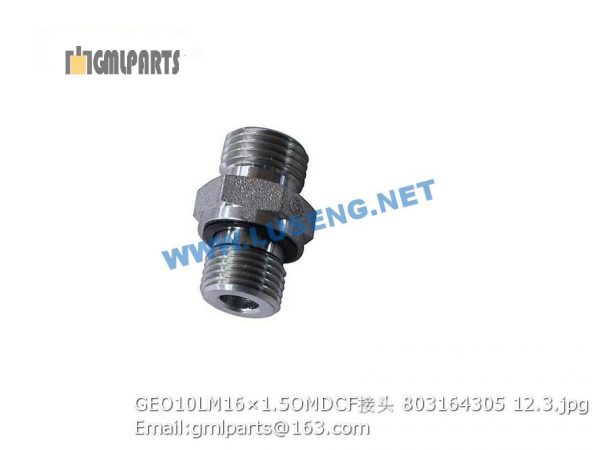

803164305 GEO10LM16X1.5OMDCF JOINT XCMG
序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 ▲227000157-040601 钢珠3/8″ Screw 3 GB/T308-2000
2 ▲227000157-040602 行星轮轴 Planetary Pin 3 79001545BD
3 ▲227000157-040603 行星轮 Planet Gear 3 79001547ADY
4 ▲227000157-040604 太阳轮 Sun Gear 1 79001524ADY
5 ▲227000157-040605 隔套 Sleeve 1 77000021
6 ▲227000157-040606 垫圈85 Washer 1 GB858-88
7 ▲227000157-040607 行星轮垫片 Washer 6 75600456B
8 ▲227000157-040608 螺母M85*2 Nut 2 75501646
9 ▲227000157-040609 锥套 Sleeve 1 76101041
10 ▲227000157-040610 滚针6×30 Roll 63 75600330F
11 ▲227000157-040611 油封座 Oil Seal Cage 1 79500813A
12 ▲227000157-040612 挡油板 Ring 1 79500823
13 ▲227000157-040613 油封BA150*180*15 Oil Seal 1 GB/T9877.1-88
14 ▲227000157-040614 油封BA150*180*15 Oil Seal 1 GB/T9877.1-88
15 ▲227000157-040615 轮毂 Hub 1 83020502
16 ▲227000157-040616 轴承32024 Bearing 1 GB/T297-94
17 ▲227000157-040617 轴承32026 Bearing 1 GB/T297-94
18 ▲227000157-040618 垫圈18 Washer 16 GB93-87
19 ▲227000157-040619 制动盘螺栓 Bolt 16 75502011
20 ▲227000157-040620 齿圈 Ring Gear 1 77500938BD
21 ▲227000157-040621 组合密封垫24 Compound Seal 1 JB982-77
22 ▲227000157-040622 螺塞M24*1.5 Plug 1 75500 195A
23 ▲227000157-040623 组合密封垫12 Compound Seal 1 JB982-77
24 ▲227000157-040624 螺塞M24*1.25*9 Plug 1 75500842
25 ▲227000157-040625 行星轮架 Spider 1 CY1450.2.1-1
26 ▲227000157-040626 调整支柱 Adjust Pin 1 77000133
27 ▲227000157-040627 端盖 Cover 1 79001544B
28 ▲227000157-040628 隔套 Sleeve 1 77000021
29 ▲227000157-040629 限位块 Block 1 73520042
1 ▲226800286-040601 制动盘 Brake Disc 1
2 ▲226800286-040602 放气嘴保护罩 Cap 4
3 ▲226800286-040603 销轴 Pin 8
4 ▲226800286-040604 放气嘴 Bleeder Valve 4
5 ▲226800286-040605 O型圈75×3.1 O-Ring 4
6 ▲226800286-040606 夹钳体 Caliper 2
7 ▲226800286-040607 螺栓M20*60 Bolt 12
8 ▲226800286-040608 垫圈 Washer 12
9 ▲226800286-040609 螺母M10 Nut 8
10 ▲226800286-040610 螺栓M10*35 Bolt 8
11 ▲226800286-040611 螺栓M20*55 Bolt 6
12 ▲226800286-040612 垫圈18 Washer 16
13 ▲226800286-040613 钢球 Steel ball 4
14 ▲226800286-040614 垫圈10 Washer 16
15 ▲226800286-040615 螺栓M18*40 Bolt 16
16 ▲226800286-040616 圆柱销 Column pin 8
17 ▲226800286-040617 螺栓M10*35 Bolt 16
18 ▲226800286-040618 孔塞 Plug 2
19 ▲226800286-040619 摩擦片 Friction pad 4
20 ▲226800286-040620 摩擦垫块底板 Backing plate 4
21 ▲226800286-040621 矩形密封圈 Seal 8
22 ▲226800286-040622 活塞 Piston 8
23 ▲226800286-040623 防尘圈 Dust proof ring 8
24 ▲226800286-040624 进油分泵盖 Cover 2
25 ▲226800286-040625 封油分泵盖 Cover 2
