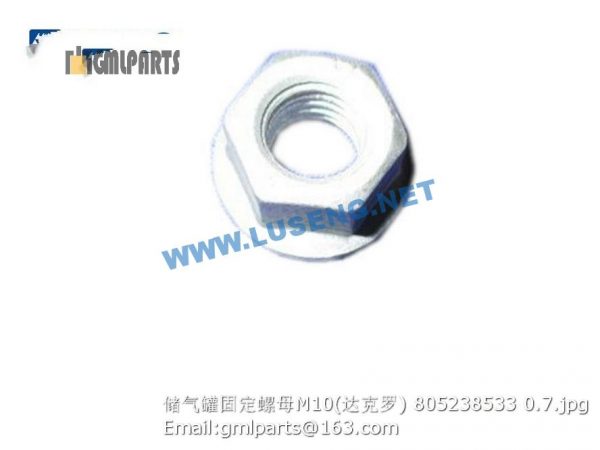

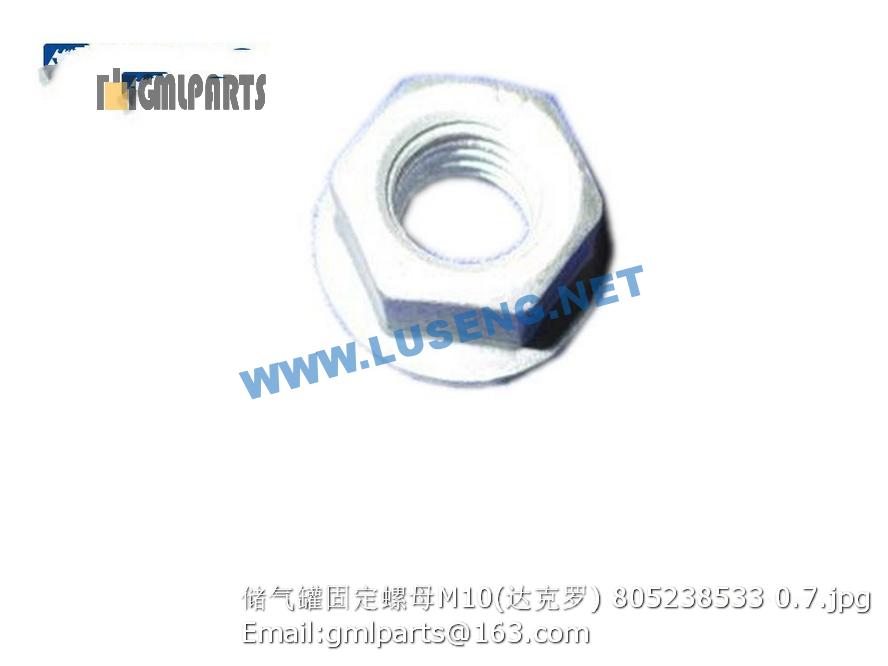

805238533 NUT XCMG M10

,805238533 NUT XCMG M10

Description

805238533 NUT XCMG M10

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 805000017 螺栓 M8×25 bolt 5 GB/T5783-2000
2 805300010 垫圈 8 Washer 9
3 805200045 螺母 8 Nut 4 GB/T 6170-2000
4 402203594-001 冷凝器总成 Condenser assembly 1
5 402203594-002 压缩机至冷凝器管 Tube from compressor to condenser 1
6 402203594-003 冷凝器至储液罐管 Tube from condenser to fluid reservoir 1
7 402203594-004 储液罐 Fluid reservoir 1
8 402203594-005 储液罐至蒸发器 Hose from fluid reservoir to evaporator 1
9 402203594-006 蒸发器至压缩机管 Tube from evaporator to compressor 1
10 402203594-007 压缩机 Compressor 1
11 402600396 接头I Joint I 1
12 803131770 带截止阀接头(NPT3/8) 803131770 2 CA151
13 402600397 接头II Joint II 1
14 402203594-008 暖风进水管 Water inlet hose of fan heater 1
15 402203594-009 温控开关 Temperature switch 1
16 402203594-010 冷暖蒸发器 Condenser 1
17 805100372 螺钉 M6×20 Bolt 1 GB/T818-2000
18 805000525 螺栓M6×20 Bolt 1 GB/T5783-2000
19 805200048 螺母 M10 Nut 4 GB/T6170-2000
20 805300014 垫圈 10 Washer 7 GB/T93-1987
21 805300017 垫圈10 Washer 9 GB/T97.1-2002
22 805000043 螺栓 M10×30 Bolt 2 GB/T 5783-2000
23 402203594-011 暖风出水管 Heater water outlet pipe 1
24 402203594-012 压缩机皮带 Compressor belt 1
25 805004674 螺栓M10x100 Bolt 2
26 402203594-013 新风开关 Air switch 1
27 402203594-014 新风执行器 Air actuator 1
