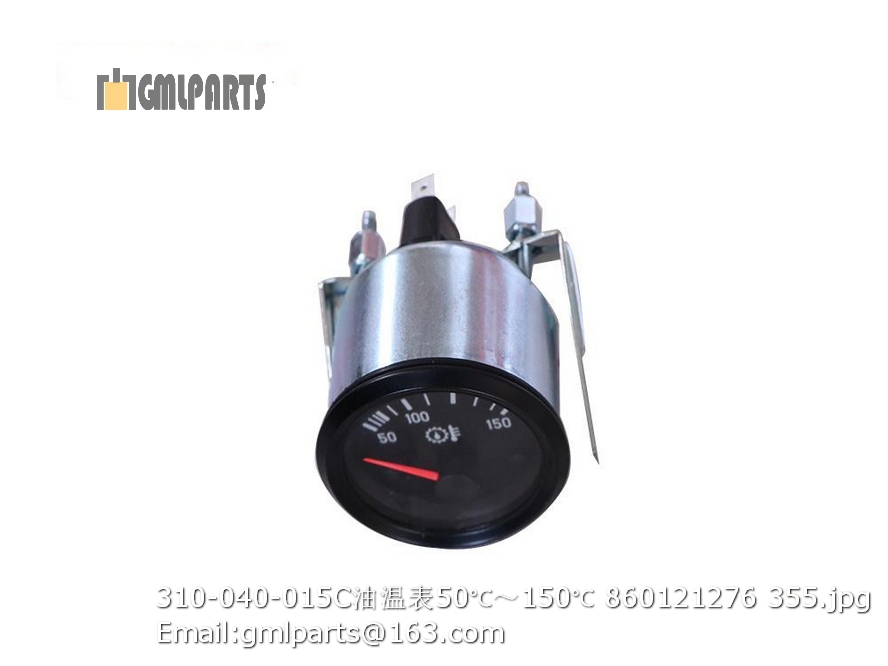

860121276 310-040-015C OIL TEMPERATURE GAUGE 50℃～150℃
序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 803004120 单手柄先导阀 Pilot Valve 1 DXS-00
2 805002295 接头 Joint 6
3 803164245 接头 Joint 3
4 803165766 接头 Connector 1 GE10LM18×1.5EDOMDA3C
5 805000727 螺栓M10X25 Bolt 4 GB/T5783-2000
6 805300014 垫圈 10 Washer 4 GB/T93-1987
7 252101425 单手柄操作标识 Marking 1
序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 ▲803004120-01 顺序阀座 Sequence Valve Seat 1
1 803004120-101521 先导阀DXS-00 Pilot Valve 1 型号 Model 全系列
2 ▲803004120-02 计量阀座 Measure Valve Seat 3
3 ▲803004120-03 O型圈18X1.8 O—Ring 3 GB/T3452.1-1992
4 ▲803004120-04 O型圈12.5X1.8 O—Ring 5 GB/T3452.1-1992
5 ▲803004120-05 弹簧 Spring 3
6 ▲803004120-06 阀芯座 Spool Seat 4
7 ▲803004120-07 计量阀芯 Measure Spool 3
8 ▲803004120-08 销φ2.5X12 Pin 4 GB879-86
9 ▲803004120-09 圆锥螺堵 Plug 4
10 ▲803004120-10 弹簧座 Spring Seat 4
11 ▲803004120-11 弹簧 Spring 4
12 ▲803004120-12 计量弹簧 Measure Spring 4
13 ▲803004120-13 弹簧座 Spring Seat 4
14 ▲803004120-14 钢丝挡圈 Steel Wire Block 8
15 ▲803004120-15 弹性圆柱销φ2X10 Pin 4 GB879-86
16 ▲803004120-16 O型圈22.4X2.8 O—Ring 4 GB/T3452.1-1992
17 ▲803004120-17 盖 Cover 4
18 ▲803004120-18 塑料塞 Plastic Stuff 4
19 ▲803004120-19 C1型密封件10X16X6 Seal 4
20 ▲803004120-20 密封圈盖 Seal Cover 4
21 805400089 弹性挡圈17 Elasticity Block 4 GB893.1-86
22 ▲803004120-21 电磁铁 Electricity Magnet 3
23 ▲803004120-22 压销 Pin 4
24 ▲803004120-23 钢球9/32” Steel Ball 4 GB308-84
25 ▲803004120-24 轴套 Bearing Sheath 1
26 ▲803004120-25 螺塞 Plug 1
27 ▲803004120-26 导向套 Lead Orientation sheath 1
28 ▲803004120-27 弹簧 Spring 1
29 ▲803004120-28 安装板 Plank 1
30 ▲803004120-29 弹簧座 Spring Seat 1
31 ▲803004120-30 顺序阀芯 Sequence Valve Spool 1
32 ▲803004120-31 O型圈20X1.8 O—Ring 2 GB/T3452.1-1992
33 ▲803004120-32 O型圈16X1.8 O—Ring 2 GB/T3452.1-1992
34 ▲803004120-33 O型圈11.8X1.8 O—Ring 1 GB/T3452.1-1992
35 ▲803004120-34 螺塞 Plug 1
36 ▲803004120-35 手柄 Manual Handle 1
37 ▲803004120-36 防尘罩 Dustproof Cover 1
38 ▲803004120-37 手柄接头 Manual Handle Joint 1
39 805200049 螺母 M12 Nut 1 GB/T6170-2000
40 GB848-85 小垫圈 20-140HV Small Washer 1 GB848-85
41 ▲803004120-38 铰座 Gemel Seat 1
42 ▲803004120-39 锁紧销 Lock Pin 1
43 ▲803004120-40 铰接头 Gemel Joint 1
44 ▲803004120-41 铰座 Gemel Seat 1
45 805200053 螺母 M6 Nut M6 4
46 ▲803004120-42 压销 Pin 4
47 GB895.1-86 挡圈8 Thrust Plate 4 GB895.1-86
48 ▲803004120-43 压销座 Pin 4
49 ▲803004120-44 压板 Plank 4
50 ▲803004120-45 螺套 Snail Cover 4
51 ▲803004120-46 固定板 Plank 1
52 ▲803004120-47 短销 Short Pin 2
53 ▲803004120-48 长销 Pin 1
54 805200058 螺母M20X1.5 Nut 1 GB/T6172.1-2000
55 805601733 弹性圆柱销6X30 Flexibility Pin 1 GB/T879.1-2000
56 ▲803004120-49 压杆1 Staff 2
57 ▲803004120-50 压杆2 Staff 2
58 ▲803004120-51 阀体 Valve Housing 1
