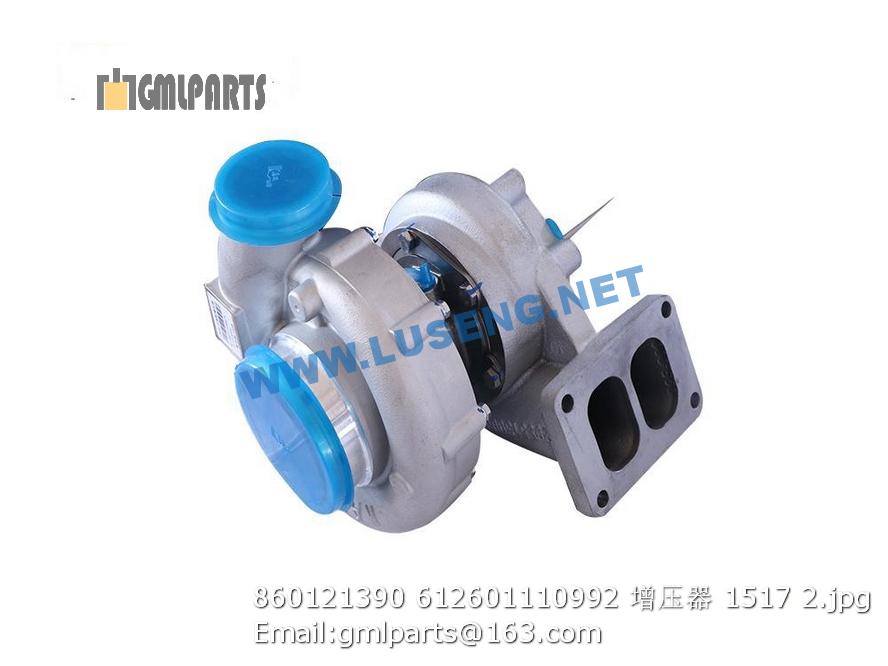

860121390 612601110992 TURBOCHARGER

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 ▲800307100-001 水散热器分总成 Water Radiator 1 XGSX01-109-1301000
2 ▲800307100-002 放水开关 Switch 1 FSKG
3 ▲800307100-003 复式加水口盖 Cover 1
4 ▲800307100-004 液压油散 Hydraulic Radiator 1 XGSX01-109-1302000
5 ▲800307100-005 变矩油散 T/C Radiator 1 XGSX01-109-1303000
6 ▲800307100-006 上挡风胶板 Plate(Top) 1 XGSX01-109-1306000
7 ▲800307100-007 导风罩分总成 Shroud& Guard Net 1 XGSX01-109-1301800
8 ▲800307100-008 侧挡风胶板 Plate(Side) 2 XGSX01-109-1307000
9 ▲800307100-009 螺栓M12X30 Bolt 8 GB5783-86
10 ▲800307100-010 螺母M12 Nut 8 GB41-86
11 ▲800307100-011 平垫12 Flat Washer 8 GB95-85
12 ▲800307100-012 弹垫12 Spring Washer 8 GB93-87
13 ▲800307100-013 螺栓 Bolt 35 GB5783-86
14 ▲800307100-014 螺母 Nut 31 GB41-86
15 ▲800307100-015 平垫 Flat Washer 35 GB95-85
16 ▲800307100-016 弹垫 Spring Washer 35 GB93-87
17 ▲800307100-017 下挡风胶板 Plate(Down) 1 XGSX01-109-1301900
18 ▲800307100-018 后导风罩 Lead Wind Guard 1 XGSX01-109-1309000
19 ▲800307100-019 左支架分总成 Left Bracket 1 XGSX01-109-1301600
20 ▲800307100-020 右支架分总成 Right Bracket 1 XGSX01-109-1301700
21 ▲800307100-021 左护网 Left Guard Net 1 XGSX01-77A-1301603
22 ▲800307100-022 右护网 Right Guard Net 1 XGSX01-77A-1301602
1 253003402 软管总成 Hose 1
2 253003403 软管总成 Hose 1
1 803004130 油门操纵阀 Accelerator 1
3 805300029 垫圈 6 Washer 6 7 GB/T97.1-2002
4 805300030 垫圈 6 Washer 6 5 GB/T93-1987
5 805200053 螺母 M6 Nut M6 2
6 252100843 支架 Bracket 1
