Description

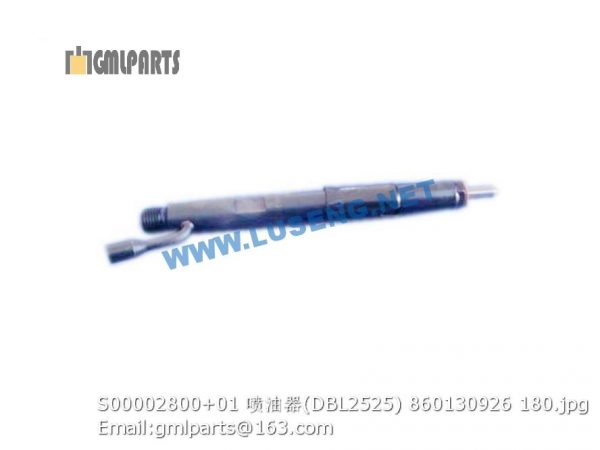

860130926 S00002800+01 INJECTOR DBL2525

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 227000326 前玻璃 Front glass 1
2 802101287 玻璃吊点固定垫（外） Washer 12
3 802101286 锁止手把圆螺母套 Bushing 12
4 802101288 玻璃吊点固定垫（内） Washer 12
5 805300117 垫圈8 Washer 12 GB/T96.1-2002
6 805300010 垫圈 8 Washer 40
7 805000018 螺栓 M8×20) Elbow 20
8 227000354 M8螺帽 Screw cap 48
9 227000336 右前玻璃 Left front glass 1
10 802101284 把手 Handle 1
11 860104258 右门活动玻璃 Moveable glass of the right door 1
12 227000329 右门固定玻璃 Fixed glass of the right door 1
13 227000327 右后玻璃 Right rear glass 1
14 805100348 螺钉 M16 Bolt 4 GB/T825-1988
15 227000338 后玻璃 Rear glass 1
16 227000328 左后玻璃 Left rear glass 1
17 227000330 左门固定玻璃 Fixed glass of the left door 1
18 860104256 左门活动玻璃 Moveable glass of the left door 1
19 227000337 左前玻璃 Left front glass 1
20 805200284 螺母M8 Nut 2 GB/T923-1988
21 860117976 轴 Shaft 1
22 860117977 活动铰链 Moveable hinge 1
23 860117975 垫圈 Washer 2
24 805000017 螺栓 M8×25 bolt 20 GB/T5783-2000
25 805201502 螺母 M8 12
26 805300069 垫圈 8 Washer 8 28
27 227000353 胶木垫 Bakelite plate 4
28 805200290 螺母M6 Nut 6 GB/T 889.1-2000
29 805300029 垫圈 6 Washer 6 23 GB/T97.1-2002
30 805101826 螺钉M6×32 Screw 6
31 802101281 NBS526定位锁 Latch 2
1 860118147 顶内饰 Inner decoration of the canopy 1
4 860118148 左门内饰 Inner decoration of the left door 1
5 227000346 锁支架盖板 Cover board of the lock support 2
6 805100140 自攻螺钉ST4.2×16 Self-tapping sponge 6
7 860117966 隔热棉 Thermal insulation sponge 1
8 860117967 隔热棉 Thermal insulation sponge 1
9 860117971 隔热棉 Thermal insulation sponge 1
10 860117970 隔热棉 Thermal insulation sponge 1
11 860117969 隔热棉 Thermal insulation sponge 1
12 860117968 隔热棉 Thermal insulation sponge 1
14 860118149 右门内饰 Inner decoration of the right door 1
15 227000323 驾驶室电气 Electrical 1
16 802101289 室内后视镜 Interior rear-view mirror 1
17 805101946 螺钉ST4.2×25 Screw 1
