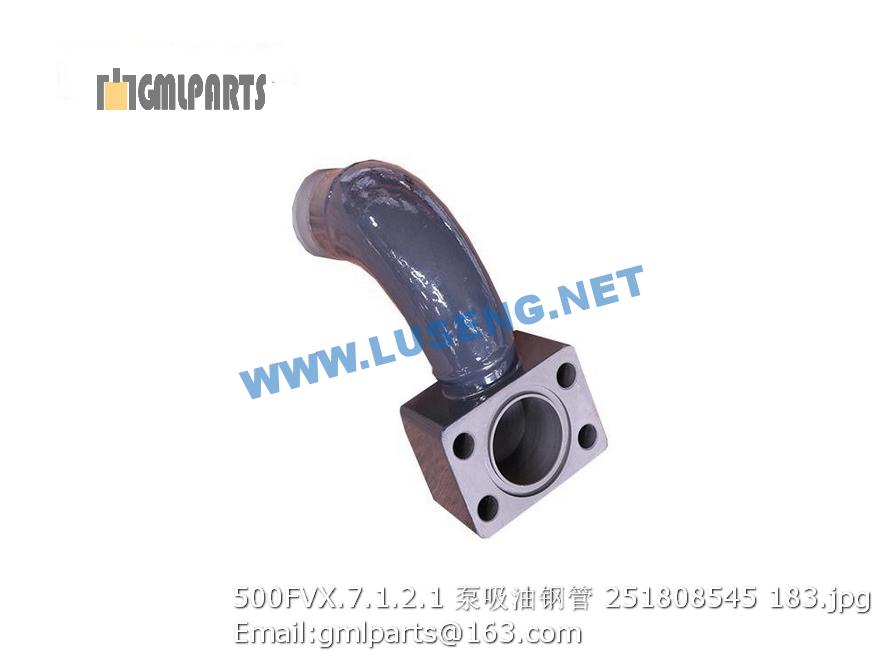

251808545 500FVX.7.1.2.1 TUBE

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 ▲500D-070401 主轴 Main shaft 1 LW500FL(II)10.2-01-01
2 ▲500D-070402 内套管 Inner sleeve pipe 1 LW500FL(II)10.2-01-02
3 ▲500D-070403 轴用挡圈20 External snap ring 1 GB/T 894.1-1986
4 ▲500D-070404 轴承 Bearing 1 GB/T 276-1994
5 ▲500D-070405 上壳体固定架 Upper housing bracket 1 LW500FL(II)10.2-01-03
6 ▲500D-070406 隔套组件 Spacing sleeve units 1 LW500FL(II)10.2-01-04
7 ▲500D-070407 下壳体固定架 Lower housing bracket 1 LW500FL(II)10.2-01-05
8 ▲500D-070408 外套管 Outer sleeve pipe 1 LW500FL(II)10.2-01-06
9 ▲500D-070409 底板 Bottom-Board 1 LW500FL(II)10.2-01-07
10 ▲500D-070410 衬套 Lining sleeve 1 LW500FL(II)10.2-01-08
11 ▲500D-070411 联接板 Connecting board 1 LW500FL(II)10.2-01-09
12 ▲500D-070412 M16X1.5螺母 Nut 1 GB/T 6173-2000
13 ▲500D-070413 垫圈16 Washer 1 GB/T 859-1987
1 ▲500D-070501 压盖 Cap 1 YOLBJ19200011
2 ▲500D-070502 壳体合件 Shell 1 YOLBJ19201000
3 ▲500D-070503 沉头螺钉M5x6 Countersunk screw 7 YBLBJ00703001
4 ▲500D-070504 小垫圈10 Small washer 1 YBLBJ00306002
5 ▲500D-070505 螺栓M8x50 Bolt 2 YBLBJ00707005
6 ▲500D-070506 挡圈 Snap ring 1 YBLBJ00101006
7 ▲500D-070507 平垫 Flat Washer 1 YOLBJ18100016
8 ▲500D-070508 螺钉M5x15 Screw 1 YBLBJ00703004
9 ▲500D-070509 外锯齿止退平垫 24 Washer 1
10 ▲500D-070510 螺母M24x1.5 Nut 1 YBLBJ00113001
11 ▲500D-070511 非金属六脚螺母 M10 Non-metal hexagon nut 1 YBLBJ00112002
12 ▲500D-070512 手杆合件 Lever 1 YOLBJ18802000
13 ▲500D-070513 丝套 Sleeve 1 YOLBJ18100010
14 ▲500D-070514 主动锥齿轮 Master taper gear 1 YOLBJ18100007
15 ▲500D-070515 销轴 Pin shaft 1 YOLBJ18800013
16 ▲500D-070516 轮轴合件 Wheel & shaft 1 YOLBJ1810300001
17 ▲500D-070517 下盖 Lower cap 1 YOLBJ18900011
18 ▲500D-070518 导管 Conduit 1 YOLBJ18900006
19 ▲500D-070519 齿条 Gear Rack 1 YOLBJ18192009
1 ▲500D-070601 拉杆M6XØ8X60XØ5.2 Pull bar 1 YOLBJ00103138
2 ▲500D-070602 连通帽M16X1.5X17 Nut 1 YBLBJ01204003
3 ▲500D-070603 长接头Ø16X45 Longer Joint 1 YBLBJ00601002
4 ▲500D-070604 丝套M12X1.25X50XØ12 Sleeve 1 YBLBJ00801002
5 ▲500D-070605 软管Ø12 Hose 1 YOLBJ02401005
6 ▲500D-070606 芯子Ø5 Core 1 YOLBJ02501004
7 ▲500D-070607 螺纹接头M16X1.5X100XØ12 Screwed Joint 1 YOLBJ00407013
8 ▲500D-070608 平垫16(Ø17XØ30Xδ3) Flat Washer 2 YBLBJ00311002
9 ▲500D-070609 螺母M16X1.5 Nut 2 YBLBJ00108004
10 ▲500D-070610 密封帽Ø10 Sealed Cap 1 YOLBJ01803006
11 ▲500D-070611 导向管Ø12X60XØ8.5 Guide Tube 1
12 ▲500D-070612 密封帽Ø8 Sealed Cap 1 YOLBJ01803005
13 ▲500D-070613 拉杆M8X100XØ5.2 Pull bar 1
14 ▲500D-070614 螺母 M8 Nut 1 YBLBJ00104006
15 ▲500D-070615 叉接头M8XØ8X8.5X20 Joint 1 YOLBJ00303005
16 ▲500D-070616 销轴Ø8X26 Pin shaft 1 YBLBJ00504002
17 ▲500D-070617 开口销3.2X20 Cotter pin 1 YBLBJ00604001
