Description

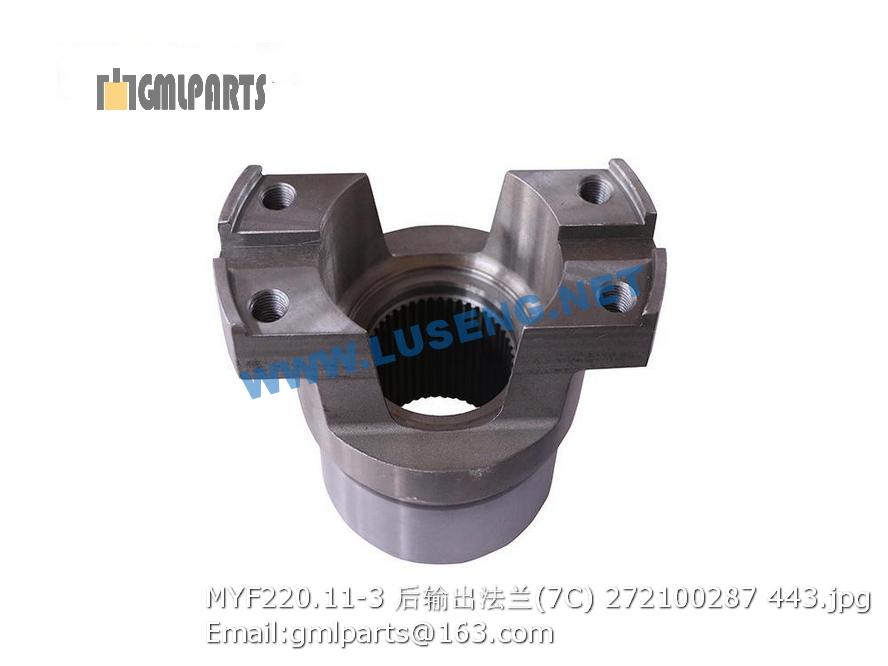

272100287 MYF220.11-3 Flange Output 7C

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 ▲226800286-040601 制动盘 Brake Disc 1
2 ▲226800286-040602 放气嘴保护罩 Cap 4
3 ▲226800286-040603 销轴 Pin 8
4 ▲226800286-040604 放气嘴 Bleeder Valve 4
5 ▲226800286-040605 O型圈75×3.1 O-Ring 4
6 ▲226800286-040606 夹钳体 Caliper 2
7 ▲226800286-040607 螺栓M20*60 Bolt 12
8 ▲226800286-040608 垫圈 Washer 12
9 ▲226800286-040609 螺母M10 Nut 8
10 ▲226800286-040610 螺栓M10*35 Bolt 8
11 ▲226800286-040611 螺栓M20*55 Bolt 6
12 ▲226800286-040612 垫圈18 Washer 16
13 ▲226800286-040613 钢球 Steel ball 4
14 ▲226800286-040614 垫圈10 Washer 16
15 ▲226800286-040615 螺栓M18*40 Bolt 16
16 ▲226800286-040616 圆柱销 Column pin 8
17 ▲226800286-040617 螺栓M10*35 Bolt 16
18 ▲226800286-040618 孔塞 Plug 2
19 ▲226800286-040619 摩擦片 Friction pad 4
20 ▲226800286-040620 摩擦垫块底板 Backing plate 4
21 ▲226800286-040621 矩形密封圈 Seal 8
22 ▲226800286-040622 活塞 Piston 8
23 ▲226800286-040623 防尘圈 Dust proof ring 8
24 ▲226800286-040624 进油分泵盖 Cover 2
25 ▲226800286-040625 封油分泵盖 Cover 2
1 ▲227000157-040301 支承轴 Spindle 2 79500812A 79500812A
2 ▲227000157-040302 桥壳 Housing 1 ZL30E3.2-1AY ZL30E3.2-1AY
3 ▲227000157-040303 制动钳支架 Bracket 2 ZL30B-1-2 ZL30B-1-2
1 ▲227000157-040401 主传动齿轮(前桥) Pinion 1 ZL40B-2.1-4A
2 ▲227000157-040402 被动齿轮(前桥) Gear 1 ZL40B-2.1-15A
3 ▲227000157-040403 螺母M14×1.5 Nut 12 GB/T6187.2-2000
4 ▲227000157-040404 螺栓M14×1.5×50 Bolt 12 75500003
5 ▲227000157-040405 小螺伞轴承NUP2306E Bearing 1 GB/T283-94
6 ▲227000157-040406 半壳轴承32215 Bearing 2 GB/T297-94
7 ▲227000157-040407 铁丝￠1.6*600 Thread of iron 2 GB/T343-94
8 ▲227000157-040408 调整螺母 Adjust Nut 2 ZL40.2.1-13
9 ▲227000157-040409 油封FB70*95*12 Oil Seal 1 GB/T9877.1
10 ▲227000157-040410 油封FB70*95*12 Oil Seal 1 GB/T9877.1
11 ▲227000157-040411 垫圈12 Washer 1 GB/T93-87
12 ▲227000157-040412 螺栓M12×55 Bolt 1 GB/T5782-2000
13 ▲227000157-040413 螺栓M14×55 Bolt 7 GB/T5782-2000
14 ▲227000157-040414 垫圈14 Washer 7 GB/T93-87
15 ▲227000157-040415 角齿螺母M33×1.5 Lock Nut 1 ZL40.2.1-1
16 ▲227000157-040416 联接法兰 Flange 1 C201A1-02.01-2
17 ▲227000157-040417 防尘罩 Deflector 1 ZL40.2.1.1-2
18 ▲227000157-040418 密封盖 Cover 1 ZL40.2.1-3
19 ▲227000157-040419 轴承座 Bearing Cage 1 ZL40.2.1-6
20 ▲227000157-040420 主减速器壳体 Carrier Case 1 82020403A
21 ▲227000157-040421 小螺伞轴承31310 Bearing 1 GB/T2797-94
22 ▲227000157-040422 调整垫片 Adjusting Washer 1 ZL40.2.1-5
23 ▲227000157-040423 锁紧片螺栓M10×1×20 Bolt 2 GB/T32.3-1988
24 ▲227000157-040424 锁紧片 Lock Plate 2 ZL40.2.1-18A
25 ▲227000157-040425 小螺伞轴承31311 Bearing 1 GB/T2797-94
26 ▲227000157-040426 轴承隔套 Adjusting Sleeves 1 ZL40.2.1-7A
27 ▲227000157-040427 轴承盖 Cover 1 75200033
28 ▲227000157-040428 螺栓M22×2.5×99 Bolt 4 75502600
29 ▲227000157-0405 差速器总成 Diff. Assembly 1 ZL40.2.1
30 ▲227000157-040429 轴挡φ30 Circlip 1 GB894.2-87
