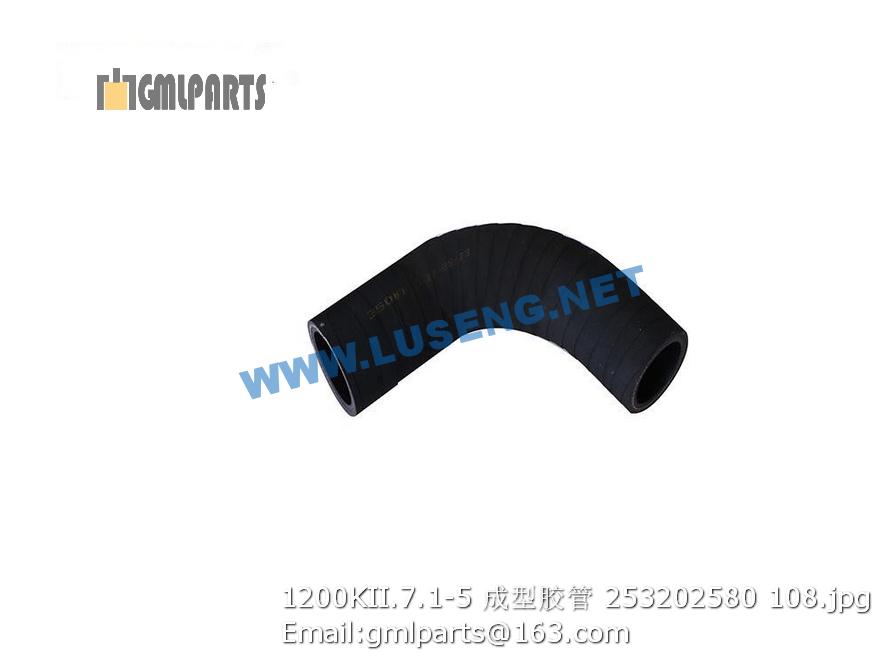

253202580 1200KII.7.1-5 HOSE

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 ▲ZL50G-013701 螺栓M12X1.25X55 10.9s Joint 4 GB/T5785-2000
2 ▲ZL50G-013702 弹簧垫圈12 Circlip 4 GB/T93-87
4 860118416 万向节总成 Gimbal 1 T160A
5 ▲ZL50G-013703 联接叉 Joint 1 Z50B.5B-1-1
6 ▲ZL50G-013704 轴管 89×4 Pipe 1 Z5GA.1.1.1-1
7 ▲ZL50G-013705 花键轴 Spline shaft 1 500K.03.2-05
8 ▲ZL50G-013706 螺母 M10(镀锌) Nut 4 GB6170-86
9 ▲ZL50G-013707 弹簧垫圈 φ10 Washer 4 GB93-87
10 ▲ZL50G-013708 螺栓M10x85 8.8s Bolt 4 GB5782-86
11 ▲ZL50G-013709 后轴承端盖 Flange 1 350K.03.2-04
12 ▲ZL50G-013710 轴承座 Flange 1 Z5G.1.2-2
13 ▲ZL50G-013711 密封圈 Seal Washer 1 ZL50.4-6
14 860111011 滚子轴承3511 Bearing 1 GB286-64
15 ▲ZL50G-013712 前轴承端盖 Flange 1 ZL40E.4-10
16 803166364 橡胶油封 60x90x12 Seal Washer 2 HG4-338-66J
17 ▲ZL50G-013713 轴套 Pipe 1 500K.03.2-06
18 860118412 法兰盘 Joint 1 500K.03.2-07
19 ▲ZL50G-013714 垫板 Flange 1 85Z01.3-6
20 ▲ZL50G-013715 锁板 Plate 1 85Z01.3-5
21 ▲ZL50G-013716 螺栓M10x30 8.8s Bolt 3 GB5783-86
1 ▲ZL50G-013801 螺栓M12X1.25X55 10.9s Bolt 8 GB/T5785-2000
2 ▲ZL50G-013802 弹簧垫圈12 Circlip 8 GB/T93-87
3 860118416 万向节总成 Gimbal 2 T160A
4 ▲ZL50G-013803 联接叉 Joint 1 Z50B.5B-1-1
5 ▲ZL50G-013804 轴管 φ89×4 Pipe 1 Z5G（CS）.1A.4-1
6 ▲ZL50G-013805 油杯 M6X1 nipple 1 JB/T7940.1-1995
7 ▲ZL50G-013806 防尘套 Pipe 1 Z50E.7C-2A
8 ▲ZL50G-013807 花键轴 Spline shaft 1 YL27.7-2A
9 ▲ZL50G-013808 联接叉 Joint 1 Z50B.5B-4-2
10 ▲ZL50G-013809 花键套 Pipe 1 YL27.7-3A
1 ▲ZL50G-013901 轮辋体 Rim Base 1 ZL50E.5.1.1
2 ▲ZL50G-013902 锁圈 Lock Ring 1 ZL50E.5.1-1
3 ▲ZL50G-013903 外轮缘 Side Ring 1 ZL50E.5.1-2
1 ▲ZL50G-014001 轮辋体 Rim Base 1 Z5G(CS).1A.6.1
2 ▲ZL50G-014002 锁圈 Lock Ring 1 ZL50E.5.1-1
3 ▲ZL50G-014003 外轮缘 Side Ring 1 ZL50E.5.1-2
1 ▲ZL50G-014101 轮辋体 Rim Base 1 Z5G(CEII).1.3.1
2 ▲ZL50G-014102 锁圈 Lock Ring 1 19.5/2.5-25A-1
3 ▲ZL50G-014103 挡圈 Side Ring 1 19.5/2.5-25A-3
4 ▲ZL50G-014104 座圈 Bead Seat Band 1 19.5/2.5-25A-4
5 ▲ZL50G-014105 止动块 Drive 1 19.5/2.5-25A-5
