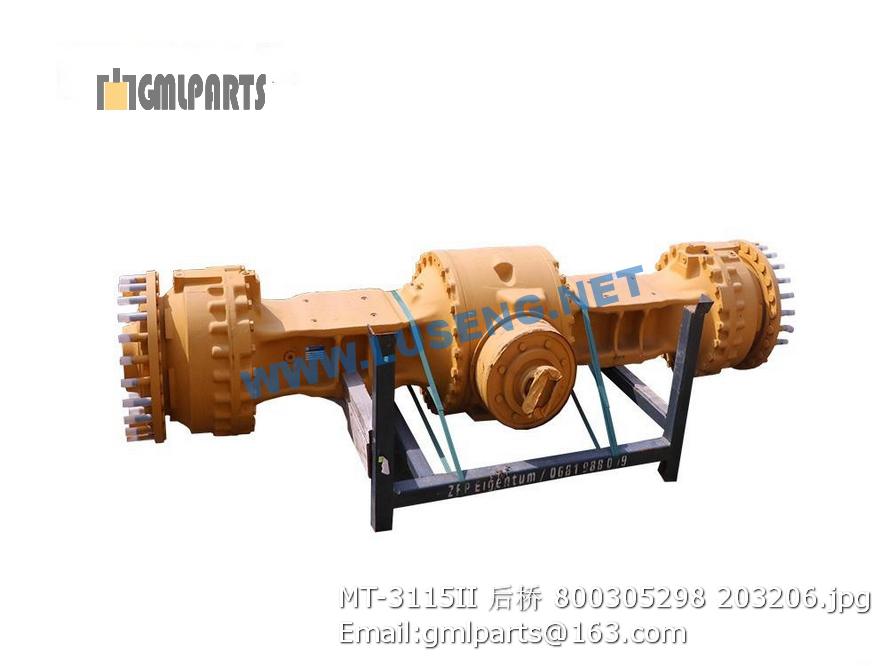

800305298 MT-3115II REAR AXLE ASSEMBLY

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 226802286 油位螺栓 Oil Lever Bolt 1
2 805300055 垫圈 30 WASHER 4 JB982-77
3 228700169 油塞 Oil Plug 4
4 859915662 油封 1
5 805301374 垫圈 12(达克罗) Bolt 96
6 230500568 减振块 Shock absorber 12 YLJ-16C
7 226803297 压轮 drum 1
8 226801837 轴承盖 Bearing plate 1
9 805000040 螺栓M16×60 Bolt 24 GB/T5783-2000
10 805301377 垫圈 16(达克罗) Wahser 16
11 226803301 左偏心块总成 Eccentricity shaft 1
12 805000528 螺栓M16×40 Bolt 24 GB/T5783-2000
13 227001992 轴承座 bearing housing 2
14 800553109 圆柱滚子轴承 NJ2324ME/C5S0 bearing 4
15 227001549 传动轴 Transmission shaft 1
16 226803304 右偏心块总成 Transmission shaft 1
17 226803296 右轴承座 dearing 2
18 226801655 框架轴承座 Frame bearing set 2
19 226801656 安装板 Mounting Plate 2
20 805000637 螺栓M16X85 Bolt 16 GB/T5782-2000
21 805200200 螺母 M16 Nut 16 GB/T889.1-2000
22 226802305 马达连接盘 Motor plate 1
23 805000573 螺栓M12×100 BOLT 7 GB/T5782-2000
24 805300018 垫圈12 washer 12 16 GB/T93-1987
25 805000404 螺栓M12X45 Bolt 8 GB/T5782-2000
26 226800504 锁片 Lock 8
27 226801658 压板 Cover 1
28 803164181 O型圈200×7 O-ring 2 GB/T3452.1-2005
29 226801835 弹簧 Spring 1 SAUER马达
31 805200098 螺母 M12 Nut 96 GB/T889.1-2000
32 226801734 组装花键套 Spline sleeve 1
33 800511355 轴承 352124 Bear 2 GB/T299-1995
34 803164194 油封 2
35 803164136 O型圈412×7 O-ring 2 GB/T3452.1-2005
36 227001554 橡胶套 Rubber sleeve 2
37 239900236 透气螺栓 Breath cap 1
38 801100339 油杯 M10×1 801100339 2 JB/T7940.2-1995
39 226801836 压板 Cover palte 1
40 805000716 螺栓M12X30 Bolt 8 GB/T5783-2000
41 805000023 垫圈20 Washer 805000023 48
43 805338246 垫圈16 washer 48 Nord-Lock
44 228700155 调整垫 Shim 4
45 805000707 螺栓M24×150 Bolt 24 GB/T5782-2000
46 805300021 垫圈24 Washer 24 GB/T97.1-2002
47 805200194 螺母 M24 Nut 24 GB/T 889.1-2000
48 226800215 减振器支座 Torque reducer supporter 4
49 805000282 螺栓M24×55 Bolt 8 GB/T5783-2000
50 805300026 垫圈16 Washer 1
51 805400068 挡圈32 Washer 1 GB/T893-1986
1 226801735 花键套 Spline sleeve 1
2 226801736 弹簧定位块 orientation block 1
3 226801737 弹簧 spring 1
