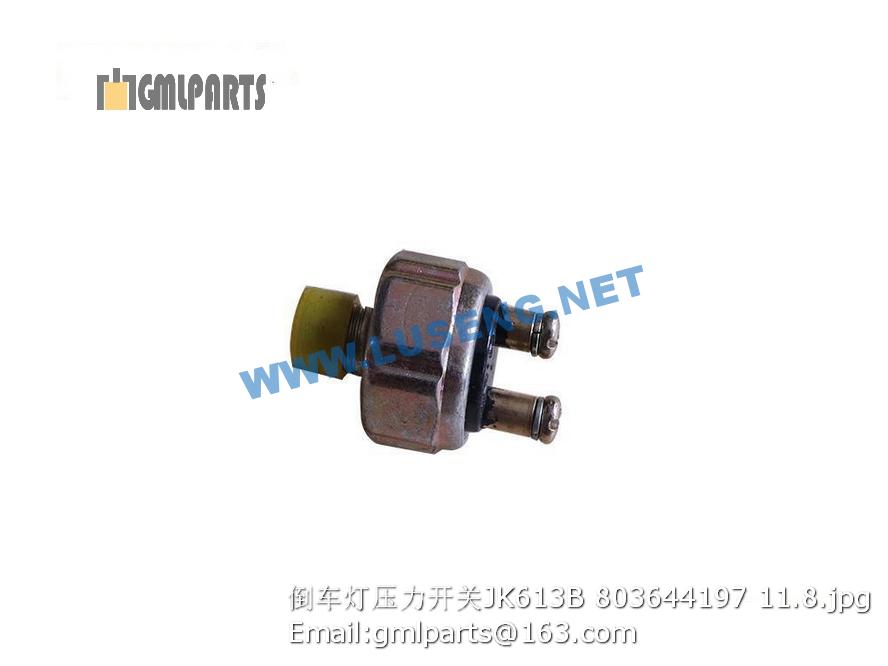

803644197 Reversing switch JK613B

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 800511306 轴承6022 Ball Bearing 1 GB／T276-94 800511306
2 272200146 导向销 Leading Pin 6 272200146
3 272200143 直接档受压盘 Direct Forward Gear Reaction Disc 1 272200143
4 250200521 二档主动片 2st Forward Driving Plate 2 250200521
5 272200144 直接档轴 Direct Forward Gear Dive Shaft 1 272200144
6 805000714 螺栓 M10×20 Blot 12 GB/T5783-2000 805000714
7 805300014 垫圈 10 Washer 12 GB/T93-1987 805300014
8 272200145 二档齿圈 2st Forward Gear Ring 1 272200145
9 250200522 二档从动片 2st Forward Friction Plate 1 250200522
10 250200484 内密封环 Inner Seal Ring 1 250200484
11 800511301 轴承6204 Ball Bearing 1 GB／T276-94 800511301
12 805400076 挡圈 65 WASHER 1 GB/T894.1-1986 805400076
13 250200349 盘形弹簧 Belleville Spring 1 250200349
14 272200147 直接档活塞 Direct Forward Piston 1 272200147
15 250200525 旋转油封 Seal Ring 1 250200525
16 250200613 销 Pin 2 250200613
17 272200148 直接档油缸 Direct Forward Cylinder 1 272200148
18 805002101 螺栓M12X1.25X100 Bolt 12 8.8级 805002101
19 250200361 止动垫片 Lock Nut Washer 6 250200361
20 272200273 直接档输出齿轮 Valve Body 1 272200273
21 800511596 滚动轴承6312 Ball Bearing 1 GB／T276-94 800511596
22 250200526 旋转油封 Seal Ringearing 1 250200526
23 250200813 调整垫片 Adjust Washer 1 250200813
1 272200177 锁紧螺母M33X1.5 Nut 2
2 272200176 垫圈 Cover 2
3 252101239 法兰 Flange 1
4 272200179 法兰 Flange 1 II
5 272200140 防尘环 Dustproof Ring 1
6 250200689 轴套 spacer 1
7 803164062 O形圈130×5.7 O-Ring 4 GB1235-76
8 272200138 油封座 Oil Seal Seat 2
9 801101745 油封CR HMS5 70X95X10 Oil Seal 2 外购SKF
10 801101722 油封B70x95x10B Oil Seal 2 GB9877.1-88
11 805400024 挡圈 130 WASHER 2
12 800500196 轴承6312 Ball Bearing 2 GB/T276-1994
13 272200265 输出轴齿轮 Output Shaft Gear 1
14 272200354 输出轴 Output Shaft 1
15 800511302 轴承6410 Ball Bearing 1 GB/T276-1994
16 250200687 O形圈 O-Ring 1
17 805000322 螺栓 M6×16 Bolt 4 GB/T5783-2000
18 272200169 挡罩 Cover 1 II
19 252101238 联结螺栓 Link Bolt 8 II
20 272200353 隔套 Spacer 1
