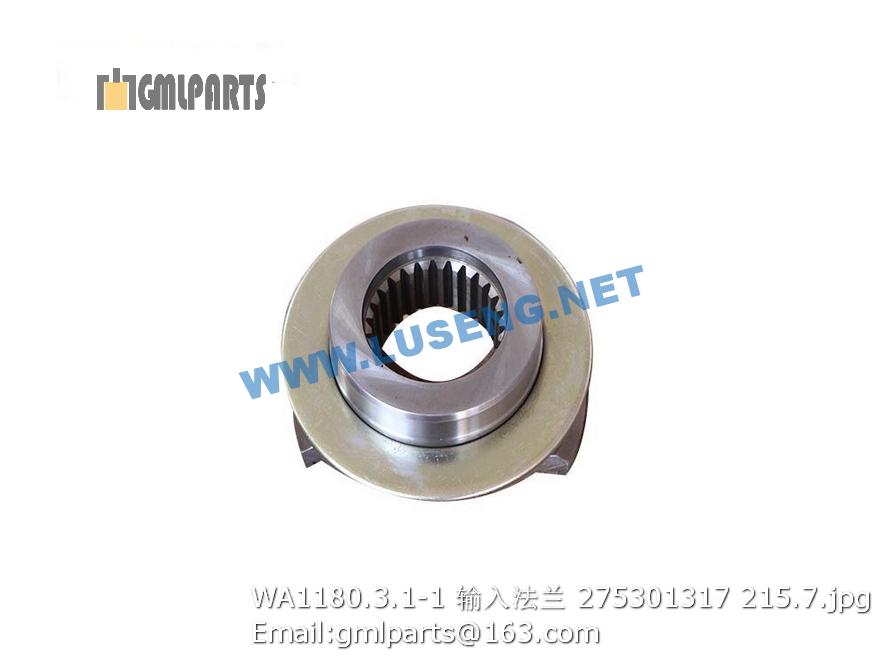

275301317 WA1180.3.1-1 input flange
序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 228300283 前梁 Front girder 1
2 228300339 压轮框架 Drum frame 1
3 228300453 右护罩 Right protection cover 1
4 228300323-01 转向铰接 Link 1
5 805000018 螺栓 M8×20) Elbow 12 GB/T5783-2000
6 805300010 垫圈 8 Washer 12 GB93
7 228300418 电瓶箱 Battery compartment 1
8 228300440 牵引车架 Tractor frame 1
9 228600143 垫 Rubber washer 1
10 228600155 油箱盖 Oil cover 1
11 800101457 空气滤清器 Air Filter 1
12 228300313 盖板 Plate 1
13 805300030 垫圈 6 Washer 6 6 GB/T93-1987
14 805000322 螺栓 M6×16 Bolt 6 GB/T5783-2000 GB/T5783-2000
15 805000137 螺栓M8X40 Bolt 6 GB/T5783-2000 GB/T5783-2000
16 228300344 梯子 Ladder 1
17 805201502 螺母 M8 6 GB/T889
18 801100336 黄油嘴M10X1 Grease Nipple 4 JB/T7940.1-1995
19 228100105 隔板 Clapboard 1
20 805000068 螺栓 M10×16 Bolt 28 GB/T5783-2000 GB/T5783-2000
21 228300340 销 Pin 2
22 228300336 安全联接 Safety Link 1
23 805603397 开口销5X40 Split Pin 2 GB/T91
25 805300114 垫圈10 Washer 18 GB/T93
26 228300455 左护罩 Right protection cover 1
27 805301379 垫圈 20(达克罗) WASHER 2 DIN6796
28 805001998 螺栓M24×95 Bolt 12 GB/T5782
29 805300021 垫圈24 Washer 4 GB/T97.1-2002 GB/T97.1
30 228600128 调整垫 Shim 4 YZ18C.0-4
31 228600129 调整垫 Shim 4 YZ18C.0-5
33 805301380 垫圈 24 WASHER 4 DIN6796
34 805000660 螺栓 M16×40 10.9 805000660 24 GB/T5783-2000 GB/T5783-2000
35 227300386 固定板 Plate 12
36 228100118 可调刮泥板 Scraper 4
37 228100117 可调刮泥板 Scraper 2
38 227300385 可调刮齿 Scraper 18 (凸块轮用)
39 805100117 螺钉M10×50 Screw 8 GB/T5783-2000
1 805000070 螺栓M8X10 Bolt 1 GB/T5783-2000
2 228300590 防尘盖 Dust-proof cover 1
3 805000048 螺栓M12X35 Bolt 12 GB/T5783-2000 GB/T5782-2000
4 805300018 垫圈12 washer 12 12 GB/T93-1987 GB/T93
5 227300120 盖 Cover 2
6 227300116 调整垫 Shim 4
7 227300117 调整垫 Shim 4
8 227300119 调整垫 Shim 4
9 801101457 黄油嘴 Grease nipple 6
10 228300440 牵引车架 Tractor frame 1
11 800511349 关节轴承 GAC65S/K1 BEARING 4 GB/T9164-2001
12 800511237 关节轴承 Bearing 2
13 228300323 转向铰接 Link 1
14 227300122 V型圈 V-ring 2
15 228300339 压轮框架 Drum frame 1
16 227300114 调整垫 Shim 8
17 227300115 调整垫 Shim 8
18 227300113 调整垫 Shim 4
19 227300112 盖 Cover 1
20 805301379 垫圈 20(达克罗) WASHER 12 DIN6796
21 805001959 螺栓 M20×80-10.9 Bolt M20×80-10.9 12 GB/T5782-2000 GB/T5783-2000
22 805101807 螺钉M12X12 Screw 3 GB/T77
