Description

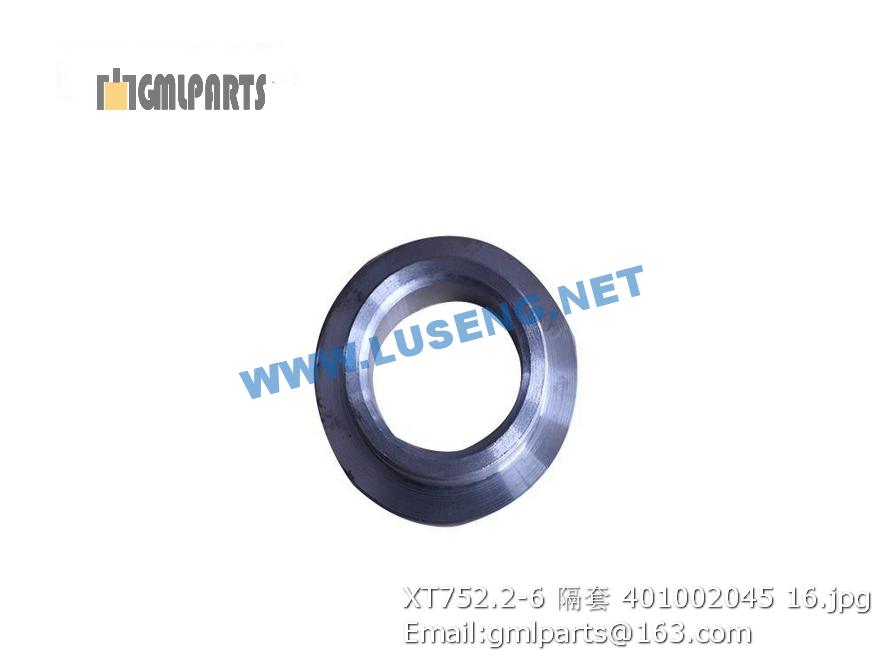

401002045 XT752.2-6 sleeve xcmg

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 228900732 消音绵 Silencer sponge 1
2 226803057 消音绵 Silencer sponge 1
3 228900733 消音绵 Silencer sponge 1
4 228900735 消音绵 Silencer sponge 1
5 226803060 消音绵 Silencer sponge 1
6 228900734 消音绵 Silencer sponge 1
7 226803064 顶侧消音绵 Top side silencer sponge 2
8 226803063 顶中消音绵 Top middle silencer sponge 2
9 226803424 消音棉 Silencer sponge 1
10 226801952 隔热棉 Bottom thermal insulation sponge 1
11 226801953 隔热棉 Bottom thermal insulation sponge 1
12 226801954 隔热棉 Bottom thermal insulation sponge 1
13 226801955 隔热棉 Bottom thermal insulation sponge 1
14 226801956 隔热棉 Bottom thermal insulation sponge 1
15 226801951 隔热棉 Bottom thermal insulation sponge 1
16 801902620 塑盖 Plastic cover 26 R820
1 805140648 吊环螺钉M16(达克罗) Screw 4
2 805046512 螺栓 M8×35（达克罗） Screw M8×25 21
3 805301384 垫圈 8(达克罗) Washer 17
4 805338265 垫圈 8(达克罗) Washer 17 GB/T96.1-2002
5 226803663 后右罩 Rear right cover 1 XS223J.8.4.3-5
6 226803661 后左罩 Rear left cover 1 XS223J.8.4.3-3
7 226803660 左右罩 Left and Right cover 2 XS223J.8.4.3-2
8 801969001 密封条L=4400 Sealing strip 1
9 253000128 缓冲头 SHOCK ABSORBER 2
10 805140907 螺钉 M8×20(达克罗) Bolt 16
11 805338259 垫圈 8(达克罗) Washer 28
12 227000339 外扶手 Exterior armrest 2
13 227000354 M8螺帽 Screw cap 16
14 227000350 平垫 Flat plate 10
15 805046477 螺母 8 Nut 12
16 805338275 5 垫圈 6(达克罗) Washer 6 17 GB/T97.1-2002
17 805046496 螺栓 M6×20(达克罗) bolt 9 GB/T5783-2000
18 228900956 前下封板 Before the next plate 1
19 819947986 2KG灭火器 Fireexting uisher 1
20 805139911 螺钉 M6×25(达克罗) Screw 12 GB/T818-2000
21 819948838 灭火器支架 Fireextinguisher support 1
22 226803659 前罩 Front cover 1
23 860117847 气弹簧 Gas spring 2
24 801540478 后视镜 Rearivew 2
25 801905394 救生锤 Hammer 1
26 226801962 消音材料总成 Cab 1
27 805338276 垫圈 8 Washer 12
28 226802496 限位活动板 Restraint moveable plane 2
