Description

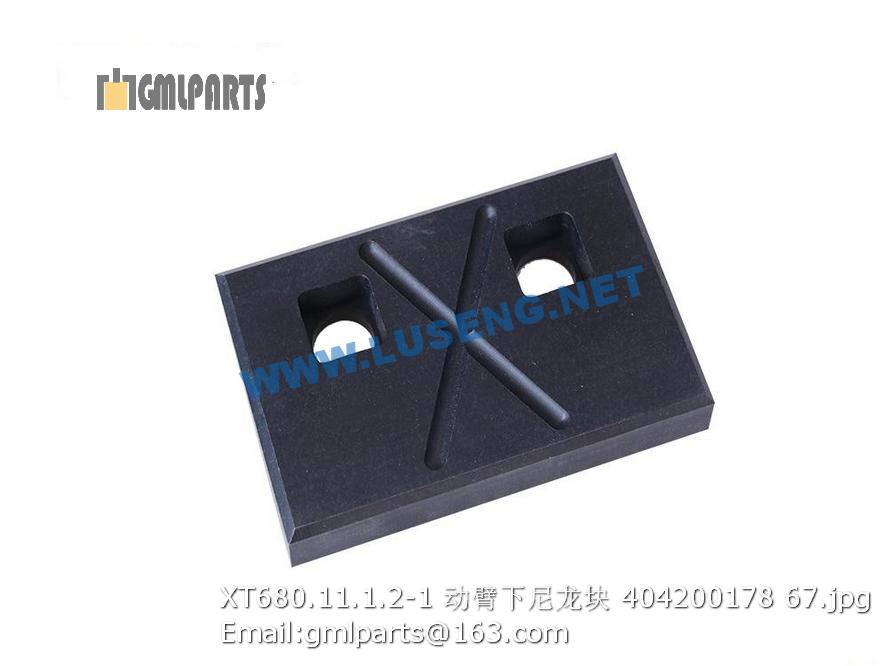

404200178 XT680.11.1.2-1 plate xcmg

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 228900732 消音绵 Silencer sponge 1
2 226803057 消音绵 Silencer sponge 1
3 228900733 消音绵 Silencer sponge 1
4 228900735 消音绵 Silencer sponge 1
5 226803060 消音绵 Silencer sponge 1
6 228900734 消音绵 Silencer sponge 1
7 226803064 顶侧消音绵 Top side silencer sponge 2
8 226803063 顶中消音绵 Top middle silencer sponge 2
9 226803424 消音棉 Silencer sponge 1
10 226801952 隔热棉 Bottom thermal insulation sponge 1
11 226801953 隔热棉 Bottom thermal insulation sponge 1
12 226801954 隔热棉 Bottom thermal insulation sponge 1
13 226801955 隔热棉 Bottom thermal insulation sponge 1
14 226801956 隔热棉 Bottom thermal insulation sponge 1
15 226801951 隔热棉 Bottom thermal insulation sponge 1
16 801902620 塑盖 Plastic cover 26 R820
1 803604706 电瓶线 Battery Wire 1
2 803604695 电瓶线 Battery wire 1
3 803604705 电瓶线 Battery wire 1
4 803604713 电瓶线 Battery wire 1
5 803677973 电瓶线 Battery wire 1
6 803645494 电瓶线 Battery wire 1
7 803604791 电瓶线 Battery wire 1
8 803604770 19 圆形电瓶正极护套-50 Circularly jacket of anode 2
9 803604771 18 圆形电瓶负极护套-50 Circularly jacket of cathode 2
10 805300014 垫圈 10 Washer 4 GB/T93-1987
11 230201618 接地螺栓 Bolt 2
12 805300017 垫圈10 Washer 2 GB/T97.1-2002
13 805200048 螺母 M10 Nut 2 GB/T6170-2000
14 803604718 电瓶线 Battery Wire 1 XGXD400C-10
15 803685358 电瓶线 Battery wire 1
1 228703257 机身线束 Frame harness 1
2 228703258 起动电源线 Startup and power wire 1
3 228703259 发动机线束 Engine harness 1
