Description

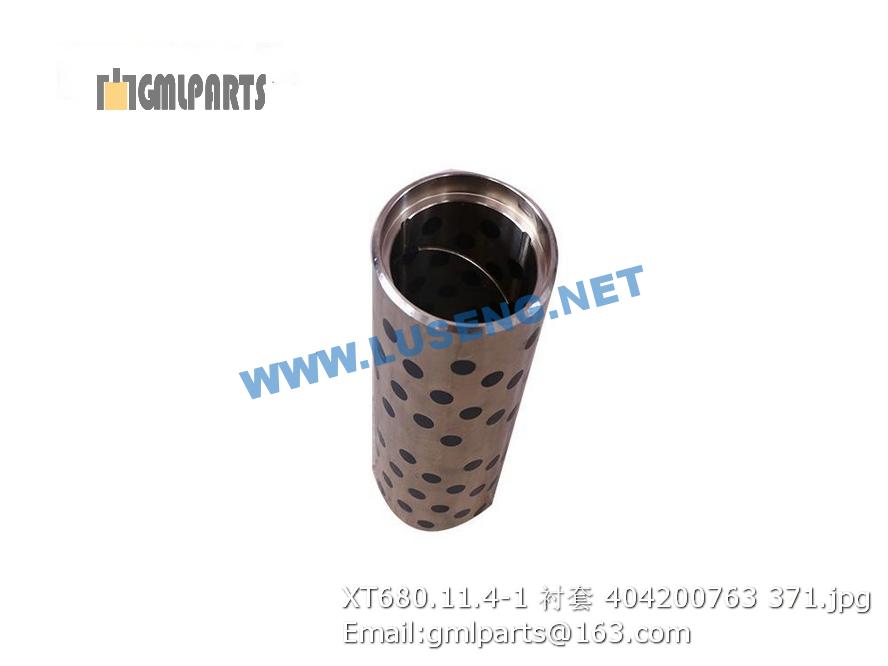

404200763 XT680.11.4-1 BUSHING XCMG

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 ▲228703215-120501 蒸发加热芯体 CORE 1 T0110108
2 ▲228703215-120502 蒸发器上盖 COVER 1 T0131301
3 ▲228703215-120503 蒸发器下壳体组件 DRAIN OF EVAPORATOR 1 T0131303
4 ▲228703215-120504 风机底板 FAN SOLEPLATE 1 T0131304
5 ▲228703215-120505 护罩 HOOD 1 T0131315
6 ▲228703215-120506 回气管组件 HOSE 1 T0180274
7 ▲228703215-120507 进液管组件 HOSE 1 T0180275
8 ▲228703215-120508 控制面板 CONTROL PANEL 1 T0400010
9 ▲228703215-120509 膨胀阀 EXPANDING VALVE 1 T0800009
10 ▲228703215-120510 蒸发风机 EVAPORATING MACHINE 1 T0820064
11 ▲228703215-120511 风口 PLACE WITH A DRAUGHT 6 T0900363
12 ▲228703215-120512 组合螺栓 BOLT 8 Z01053
13 ▲228703215-120513 组合六角螺栓 BOLT 20 Z01054
1 ▲228901910-000401 机油滤芯 Oil filter core 1
2 ▲228901910-000402 油水分离滤芯 Pre-fuel filter core 1
3 ▲228901910-000403 燃油粗滤芯 Fine fuel filter core 1
4 ▲228901910-000404 液压油滤清器 Hydraulic oil filter elememt 2
5 ▲228901910-000405 空滤主滤芯 Air cleaner core, main 1
6 ▲228901910-000406 空滤安全滤芯 Air cleaner core,safety 1
7 ▲228901910-000407 空滤器滤芯 Air cleaner core 1
1 228703337 车架装配 Frame Assembly 1
2 228703317 振动轮 Drum 1
3 228702454 传动系统 Transition System 1
4 228800403 动力系统 Engine System 1
5 228800407 仪表箱及操纵系统 Instrument Panel And Control System 1
6 228703280 驾驶室装配 Cab assembling 1
7 228703315 电气系统 Electric system 1
8 228703334 液压系统 Hydraulic System 1
9 228800412 机罩总成 Hood Assembly 1
10 228700434 刮泥板 Scraper 1
11 228703332 标记记安 Plate And Decals 1
12 228703331 空调系统 Air-comditioner System 1
13 228901885 随机工具及备件 Attached tools 1
