Description

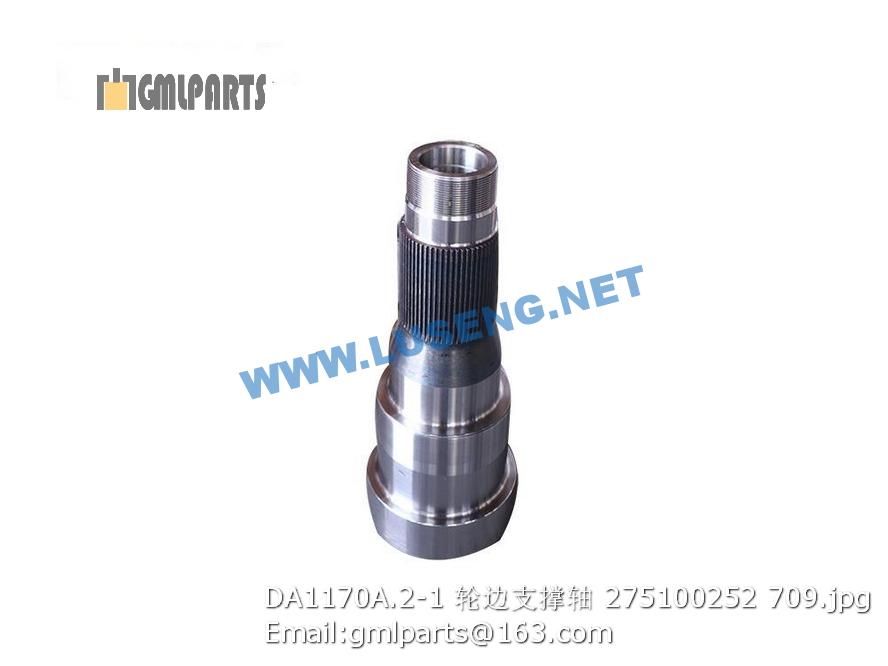

275100252 DA1170A.2-1 SUPPORTING SHAFT

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 801535301 手柄 WJ11-12-01 801535301 1
2 805200155 螺母M12×1.5 Nut 2
3 402400239 操纵杆 Control lever 1
4 805200053 螺母 M6 Nut M6 12
5 805300030 垫圈 6 Washer 6 12 GB/T93-1987
6 805302747 垫圈6 Washer 12 GB/T95-2002
7 402400291 支架 Connecting plate 1
8 402400294 支架 Bracket 1
9 805000525 螺栓M6×20 Bolt 12 GB/T5783-2000
10 805200067 螺母M14 Nut 1
11 402200919 右铰接叉 Right joint fork 1
12 402200922 销轴 402200922 6 XT870.3.1.4-14
13 800546441 轴承 SI10T/K 800546441 2
14 805200048 螺母 M10 Nut 4 GB/T6170-2000
15 402201613 连杆 Connecting rod 1 XT870H.3.2.1-2
16 805600316 销 3.2×28 805600316 2 GB/T91-2000
17 402200926 叉接头 402200926 2 XT870.3.1.4-2
18 402200923 销轴 402200923 2 XT870.3.1.4-15
19 805000045 螺栓M12X40 Bolt 2 GB/T 5783-2000
20 805300018 垫圈12 washer 12 2 GB/T93-1987
21 805302746 垫圈12 Washer 2
22 402201307 板 402201307 1 XT870.3.4.1-6
23 402200952 固定板 Fixing plate 1 XT870.3.4.1-5
24 805200065 螺母 M10 805200065 4 GB/T6172.1-2000
25 805400036 挡圈 35 Clip ring for hole 1
26 800512649 轴承 Joint bearing 1
27 805400039 挡圈 20 Clip ring for shaft 1
28 805634887 圆锥销3×30 Bevel pin 1 GB/T117-2000
29 402200924 滑块 Slider 1
30 402201612 连杆 Connecting rod 1 XT870H.3.2.1-1
31 805302843 垫圈10 Washer 4 GB/T95-2002
32 402400304 调整垫 Adjusting gasket 6
1 803164599 接头 Joint 2
3 803130785 胶管 Rubber hose 2 M381CACF181810-700
4 805302746 垫圈12 Washer 4
5 805300018 垫圈12 washer 12 4 GB/T93-1987
6 805000715 螺栓 M12×25 Bolt 4 GB/T 5783-2000
7 803303910 接头 Joint 2 IE18LM22x1.5ED
8 803174475 接头 Joint 4 I15LM22×1.5ED
9 803130768 胶管 Rubber hose 2 M381CACA151508-630
10 803130799 堵头 Hexagon socket oil plug 8
11 402203162 左钢管组 Oil block group 1
12 402203163 右钢管组 Oil block group 1
13 803130800 堵头 Taper plug 2
14 803304240 胶管 Rubber hose 2
15 803304181 胶管 Rubber hose 2 M381CACA151508-605-PG
16 402200225 左提升油缸 Left enhance cylinder 1 XT870.3.4.2.4
17 402200224 右提升油缸 Right enhance cylinder 1 XT870.3.4.2.1
