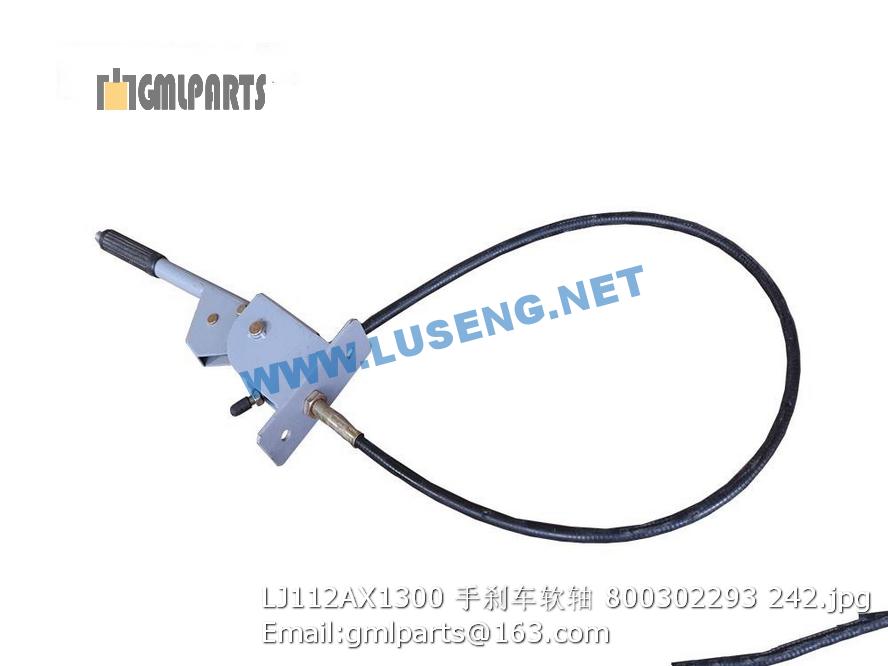

800302293 LJ112AX1300 Soft Shaft

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 800302402 动力箱 Gear box 1
2 805300058 垫圈 22 Washer 22 9 GB/T93-1987
3 805002180 螺栓 M22X55 Bolt 1 GB/T21-1976
4 805200067 螺母M14 Nut 8
5 805300033 垫圈 14 WASHER 10 GB/T93-1987
6 805000079 螺栓M14×45 Bolt 8 GB/T5783-2000
7 800302397 万向节传动轴 Universal shaft 1
8 226300413 手制动装置 Hand-brake system 1
9 800302459 链条 32B-1×62 Chain 32B-1×62 2 DIN8187
10 226300267 链轮 Chain wheel 2 桥附件
11 800302414 桥 Axle 1
12 805001960 螺栓 M22×280-10.9 Bolt 8 GB/T5782-2000
13 226300268 套筒 Sleeve 1
14 805001957 螺栓 M20×205 10.9 Bolt M22×205 10.9 8 GB/T5782-2000
15 805301388 垫圈 20 Washer 20 8 GB/T849-1988
16 805101789 螺钉 M20×70 10.9 Screw M20 × 70 10.9 8
17 805300023 垫圈 20 Washer 20 12 GB/T93-1987
18 226300600 销 Pin 4
19 800302327 链条 10B-1X72 Chain 2
20 226300599 板 Plate 2
21 226300602 支座 Support seat 2
22 805000281 螺栓M20×40 Bolt 4 GB/T5783-2000
23 805300084 螺栓M20×50 Bolt 1
24 801902782 减振器 Shock absorber 1
25 805000083 螺栓M14×30 Bolt 2 GB/T5783-2000
26 226300624 支架 Bracket 1
27 805002174 螺栓 M10×30 Bolt 12 GB/T21-1976
28 805300014 垫圈 10 Washer 16 GB/T93-1987
29 805000029 螺栓 M10×40 Bolt M10×40 4 GB/T5783-2000
30 800302399 变矩器 Torque Converter Assembly 1
1 805000017 螺栓 M8×25 bolt 98 GB/T5783-2000 GB/T 5783-2000
2 805300010 垫圈 8 Washer 112 GB/T 93-1987
3 802101251 后视镜 Rearivew 2
4 226500576 机身焊接 Body welding 1
5 805000170 螺栓M14 x 40 Bolt 20 GB/T5783-2000 GB/T 5783-2000
6 805300033 垫圈 14 WASHER 20 GB/T93-1987 GB/T 93-1987
7 226300162 左扶手Ⅰ Handrail I (Left) 1
8 805000045 螺栓M12X40 Bolt 8 GB/T 5783-2000 GB/T 5783-2000
9 805300018 垫圈12 washer 12 8 GB/T93-1987 GB/T 93-1987
10 226500291 孔门 Hole cover 1
11 226300163 左扶手Ⅱ Handrail Ⅱ( Left) 1
12 226500200 后扶手 Rear Handrail 1
13 226500202 后盖板支撑梁 Support of rear cover plate 3
14 226500464 前盖板 Front cover plate 1
15 226500554 脚蹬 Pedal 9
16 226300536 柴油箱盖板 Diesel tank cover 1
17 226300537 密封垫 Sealing packing 1
18 803164217 回油滤清器 Filter Assy 1 XGKL2-10×0.63
19 805300020 垫圈12 Washer 8 GB/T97.1-2002 GB/T 97.1-2002
20 226500381 左盖板 Left cover plate 1
21 226500383 右盖板 Right cover plate 1
22 805000727 螺栓M10X25 Bolt 38 GB/T5783-2000 GB/T 5783-2000
23 805300014 垫圈 10 Washer 38 GB/T93-1987 GB/T 93-1987
24 805300017 垫圈10 Washer 38 GB/T97.1-2002 GB/T 97.1-2002
25 226500384 配重Ⅰ Accessorial weight Ⅰ 12 XP262(12个)/XP302(6个)
26 226500385 配重Ⅱ Accessorial weight Ⅱ 4 XP262/302
27 226600135 配重Ⅲ Accessorial weight Ⅲ 6 XP302
28 226500227 挡块 Pad 8
29 226500228 支座 Support seat 8
30 225700302 提环 Handle 6
31 805300029 垫圈 6 Washer 6 12 GB/T97.1-2002 GB/T 97.1-2002
32 805601541 销 1.6×20 Pin 12 GB/T 91-2000
33 803107798 螺塞 M33X2 Plug 1 JB/T 1000-1977
34 805300016 组合垫圈33 Combination washer 1 JB/T982-1977 JB/T 982-1977
35 805601677 销轴 B50X130 Pin shaft 1 GB/T 882-1986
36 805600229 开口销8X70 Split pin 1 GB/T91-2000 GB/T 91-2000
37 226500570 空滤器孔门 ir filter hole cover 1
38 226500213 后盖板Ⅰ Rear cover plate Ⅰ 1
39 226300156 右扶手Ⅱ Handrail Ⅱ (Right) 1
40 226500217 后梁 Rear Support 2
41 805300069 垫圈 8 Washer 8 45 GB/T 97.1-2002
42 805200045 螺母 8 Nut 18 GB/T 6170-2000 GB/T 6170-2000
43 226500229 盖板 Cover plate 1
44 226500221 液压油箱 Oil tank 1
45 226300386 小盖板 Cover plate 2
46 226300376 支撑Ⅳ Support Ⅳ 2
47 226300374 支撑Ⅲ Support Ⅲ 1
48 226500359 右中盖板 Cover plate(middle right) 1
49 226301987 右操纵盖板 Right steering cover plate 1
50 226500394 支板 Support plate 1
51 226500386 右配重箱盖板 Cover of right counter weight case 1
52 226300154 右扶手Ⅰ Handrail Ⅰ (Right) 1
53 225700311 销紧器 Pin Lock 4
54 226500485 支撑Ⅰ Support Ⅰ 1
55 226500144 右前盖板 Cover plate(front right) 1
56 226500230 前盖板 Front Cover plate 1
57 226600137 左配重 Left counter weight 1 XP302
57 226500409 左配重 Left counter weight 1 XP262
58 226600136 右配重 Right counter weight 1 XP302
58 226500395 右配重 Right counter weight 1 XP262
59 226301977 左操纵盖板 Left steering cover plate 1
60 226500360 左中盖板 Cover plate(middle left) 1
61 226500396 左配重箱盖板 Cover of left counter weight case 1
62 226300635 地板 board 1
64 226500232 盖板 Cover plate 1
65 226500166 后盖板Ⅱ Rear cover plate Ⅱ 1
66 226500175 后盖板Ⅲ Rear cover plate Ⅲ 1
67 226502301 左后盖板 Cover plate(left rear) 1
68 226502302 中后盖板 Cover plate(middle rear) 1
69 226500231 支撑座 Frame 3
70 226502303 右后盖板 Cover plate(right rear) 1
71 805100232 螺钉 M8X25 Bolt 14 GB/T 68-2000
72 226300647 支撑Ⅱ Support Ⅱ 1
73 226000118 吸座 Magnet seat 2
74 227300183 磁体 Magnet 2
75 805101893 螺钉 M6X20 Bolt 4 GB/T 819.2-1997
76 839901542 天窗把手 handle 2 D0-5884
77 839901515 锁 Lock 3
78 226500537 盖板 Cover plate 1
79 226500715 右盖板装配 2
80 226500719 左盖板装配 1
