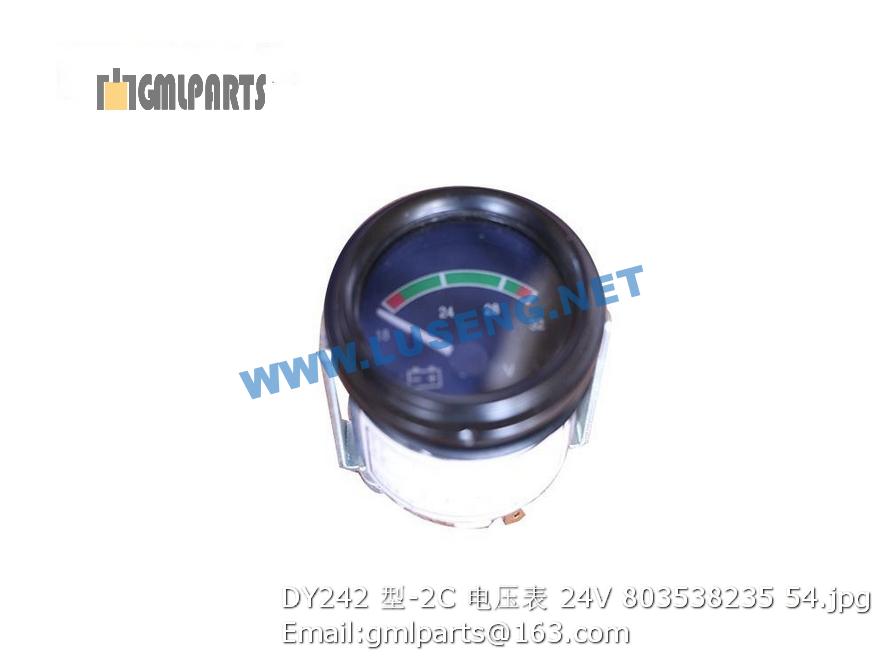

803538235 DY242 -2C Voltage gauge 24V

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 ▲800302345-0101 变矩器 Converter 1 4166035
2 ▲800302345-0102 箱体 Box 1 4644101
3 ▲800302345-0103 输入 Enter 1 4644102
4 ▲800302345-0104 输出 Export 1 4644103
5 ▲800302345-0105 操纵阀 Contvol vale 1 4644106
6 ▲800302345-0106 压力阀 Pressure valve 1 4644120
7 ▲800302345-0107 吸油管 Suction pipe 1 4644121
8 ▲800302345-0108 传感器 Sensor 1 4644125
9 ▲800302345-0109 发动机联接 Engine connection 1 4644130
10 ▲800302345-0110 加油管 Filler pipe 1 4644131
11 ▲800302345-0111 地面泵 Ground pump 1 4644137
12 ▲800302345-0112 滤油器 Filter 1 4644138
13 ▲800302345-0113 KV+K1离合器 KV+K1 Clutch 1 4644151
14 ▲800302345-0114 KR+K2离合器 KR+K2 Clutch 1 4644152
15 ▲800302345-0115 K3离合器 K3 Clutch 1 4644153
16 ▲800302345-0116 取力器 Power take off 1 4644155
1 ▲800302345-010101 闭锁离合器体 The lockup clutch body 1
2 ▲800302345-010102 六角头螺栓 M8×32 Hexagon head bolt M8×32 36
3 ▲800302345-010103 垫圈 8.4 Washer 8.4 36
4 ▲800302345-010104 纸垫 δ=0,4 Pad of paper δ=0,4 1
5 ▲800302345-010105 闭锁活塞 Latch Piston 1
6 ▲800302345-010106 活塞行程0,4–0,6mm Piston stroke 0,4–0,6mm 1
7 ▲800302345-010107 密封圈 320×332×2,5 Seal 320×332×2,5 1
8 ▲800302345-010108 密封圈 140×149×2,0 Seal 140×149×2,0 1
9 ▲800302345-010109 内磨擦片 S=3,0 (30 齿) The friction plates S=3,0 (30 Tooth) 2
10 ▲800302345-010110 内磨擦片芯板 The friction plates Xinban 2
11 ▲800302345-010111 外磨擦片 S=3,5 (12 齿) The friction plates S=3,5 (12 Tooth) 2
12 ▲800302345-010112 滚拄 10×32 Roller 10×32 12
13 ▲800302345-010113 承压板 Bearing plate 1
14 ▲800302345-010114 螺栓 M8×25 DIN933 10,9 Bolt M8×25 DIN933 10,9 12
15 ▲800302345-010115 碟形弹簧 WTB. 325×304×6,5 Disc spring WTB. 325×304×6,5 1
16 ▲800302345-010116 涡轮法兰 Turbo flange 1
17 ▲800302345-010117 螺栓 M8×18 DIN933 8,8 Bolt M8×18 DIN933 8,8 16
18 ▲800302345-010118 垫圈 8.4 DIN125 200HV Washer 8.4 DIN125 200HV 16
19 ▲800302345-010119 厌氧胶NR Anaerobic NR 16
20 ▲800302345-010120 R-圈 50×2,5 R-ring 50×2,5 1
21 ▲800302345-010121 球轴承 16010 C3 Ball Bearing 16010 C3 1
22 ▲800302345-010122 垫片 60×75×1 Gasket 60×75×1 2
23 ▲800302345-010123 调整垫片 Adjusting washer 1
24 ▲800302345-010124 箱体垫圈GS81112 Cabinet Washer GS81112 2
25 ▲800302345-010125 轴用垫圈WS81112 Shaft washer WS81112 2
26 ▲800302345-010126 滚柱推力轴承AXK6085 Roller thrust bearing AXK6085 1
27 ▲800302345-010127 滚柱推力轴承KF81112 Roller thrust bearing KF81112 1
28 ▲800302345-010128 弹性挡圈 SB112 FA.ORBIS Circlip SB112 FA.ORBIS 1
29 ▲800302345-010129 泵轮座 Pump wheel seat 1
30 ▲800302345-010130 纸垫 δ=0,4 Pad of paperδ=0,4 1
31 ▲800302345-010131 螺栓 M8×18 DIN933 8,8 Bolt M8×18 DIN933 8,8 12
32 ▲800302345-010132 垫圈 8.4 Washer 8.4 12
33 ▲800302345-010133 O型圈 36,2×3 O-ring 36,2×3 1
34 ▲800302345-010134 泵轮ZFW350-16/3.0.0 Pump wheel ZFW350-16/3.0.0 1
35 ▲800302345-010135 涡轮(30T)ZFW350-16/0.1.0 Turbine(30T)ZFW350-16/0.1.0 1
36 ▲800302345-010136 导轮ZFW350-16/0.0.12 Guide wheel ZFW350-16/0.0.12 1
37 ▲800302345-010137 导轮自由轮外环 Freewheel outer guide wheel 1
38 ▲800302345-010138 滚柱 9×14-2 Roller 9×14-2 28
39 ▲800302345-010139 弹簧套 Spring set 28
40 ▲800302345-010140 弹簧 0,32×2,73×14,1 Spring 0,32×2,73×14,1 28
41 ▲800302345-010141 滚柱 LBR 4×4/4241 Roller LBR 4×4/4241 28
42 ▲800302345-010142 垫片 S=1,5 Gasket S=1,5 2
43 ▲800302345-010143 球轴承 16012 60×95×11 Ball Bearing 16012 60×95×11 2
44 ▲800302345-010144 导轮自由轮内环 Freewheel inner guide wheel 1
