Description

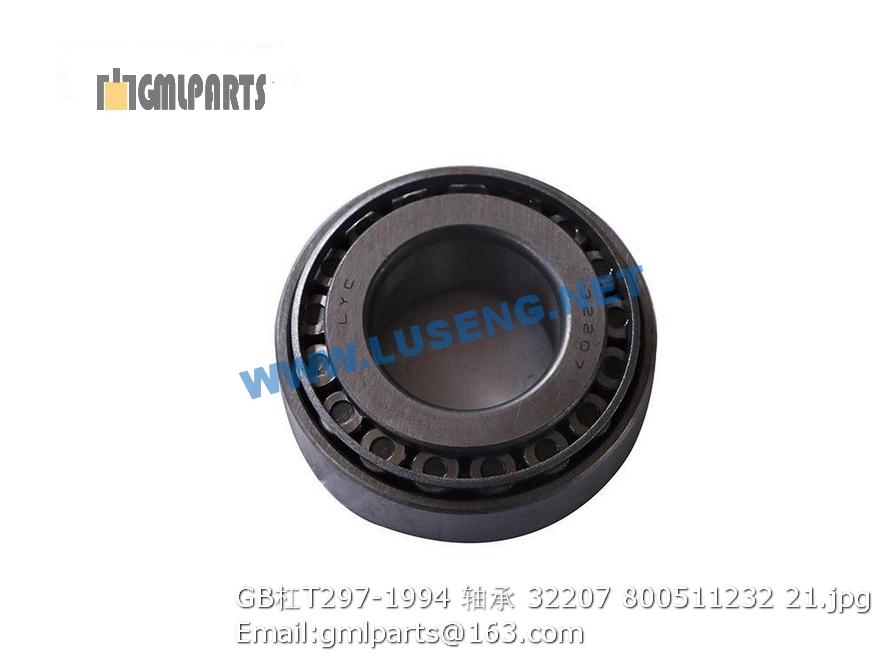

800511232 GB/T297-1994 BEARING 32207

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 231201582 前轮体 Front Drum 1
2 805300010 垫圈 8 Washer 10
3 805100118 螺钉M8×40 Bolt 6 GB/T70.1-2008
4 800511313 轴承6008-2RS Bearing 1 GB/T276-1994
5 805400016 挡圈 40 Anti-extrusion Ring 1 GB/T894.1-1986
6 231200113 圆垫 Washer 1
7 805400011 挡圈28 Ring 1 GB/T893.1-1986
8 805000033 螺栓M8×16 Bolt 1 GB/T5783-2000
9 231200114 小齿轮 Gear 1
10 805400027 弹性挡圈 50 805400027 2 GB/T894.1-2000
11 231200115 隔垫 Washer 2
12 805000690 螺栓M8×25 BOLT 3
13 805400009 挡圈 90 Circlip 90 1 GB/T893.1-1986
14 231200116 闷盖 Cap 1
15 805300018 垫圈12 washer 12 6 GB/T93-1987
16 805000024 螺栓M12×50 Bolt 6 GB/T5782-2000
17 231200117 大齿轮 Gear 1
18 805000433 螺栓M8×35 Screw 4 GB/T5782-86
19 231201662 右支架焊接 Right Holder weldding 1
20 231200119 齿轮罩壳 Gear Bonnet 1
21 805100505 螺钉 Screw 6 GB/T70.1-2008
22 231200168 半粗羊毛毡圈 170 Seal ring 1
23 231201701 右半轴 right shaft 1
24 231200239 左半轴 Left Shaft 1
25 805000679 螺栓M10X35-10.9-Zn.D Bolt 6
26 805300014 垫圈 10 Washer 12 GB/T93-1987
27 800511314 轴承6210-2RS Bearing 2 GB/T276-1994
28 231201658 左支架焊接 Left Holder weldding 1
29 805002071 螺栓M12X12 Bolt 1 GB/T5783-2000
30 805338246 垫圈16 washer 12 Nord-Lock
31 805000612 螺栓 M16×45 Bolt 12
32 231201669 调整垫 Modulation Washer 4
33 801100336 黄油嘴M10X1 Grease Nipple 1 JB/T7940.1-1995
1 231201583 后轮体 Brack Dram 1
2 805300010 垫圈 8 Washer 10
3 805100118 螺钉M8×40 Bolt 6 GB/T70.1-2008
4 800511313 轴承6008-2RS Bearing 1 GB/T276-1994
5 805400016 挡圈 40 Anti-extrusion Ring 1 GB/T894.1-1986
6 231200113 圆垫 Washer 1
7 805400011 挡圈28 Ring 1 GB/T893.1-1986
8 805000033 螺栓M8×16 Bolt 1 GB/T5783-2000
9 231200114 小齿轮 Gear 1
10 805400027 弹性挡圈 50 805400027 2 GB/T894.1-2000
11 231200115 隔垫 Washer 2
12 805000690 螺栓M8×25 BOLT 3
13 805400009 挡圈 90 Circlip 90 1 GB/T893.1-1986
14 231200116 闷盖 Cap 1
15 805300018 垫圈12 washer 12 6 GB/T93-1987
16 805000024 螺栓M12×50 Bolt 6 GB/T5782-2000
17 231200117 大齿轮 Gear 1
18 805000433 螺栓M8×35 Screw 4 GB/T5782-86
19 231201667 右支架焊接 right holder weldding 1
20 231200119 齿轮罩壳 Gear Bonnet 1
21 805100505 螺钉 Screw 6 GB/T70.1-2008
22 231200168 半粗羊毛毡圈 170 Seal ring 1
23 231201701 右半轴 right shaft 1
24 231200239 左半轴 Left Shaft 1
25 805000679 螺栓M10X35-10.9-Zn.D Bolt 6
26 805300014 垫圈 10 Washer 12 GB/T93-1987
27 800511314 轴承6210-2RS Bearing 2 GB/T276-1994
28 231201665 左支架焊接 left holder weldding 1
29 231201675 销轴 pin shaft 1
30 805002071 螺栓M12X12 Bolt 1 GB/T5783-2000
31 231200123 压簧 Spring 1
32 231200124 销套 Sleeve 1
33 805601739 销5X32 Pin 1 GB/T879.1-2000
34 805338246 垫圈16 washer 16 Nord-Lock
35 805000612 螺栓 M16×45 Bolt 12
36 231200125 手把 Handle 1
37 231201670 调整垫 modulation washer 4
38 805601573 销16X55 pin shater 4
39 801100336 黄油嘴M10X1 Grease Nipple 1 JB/T7940.1-1995
