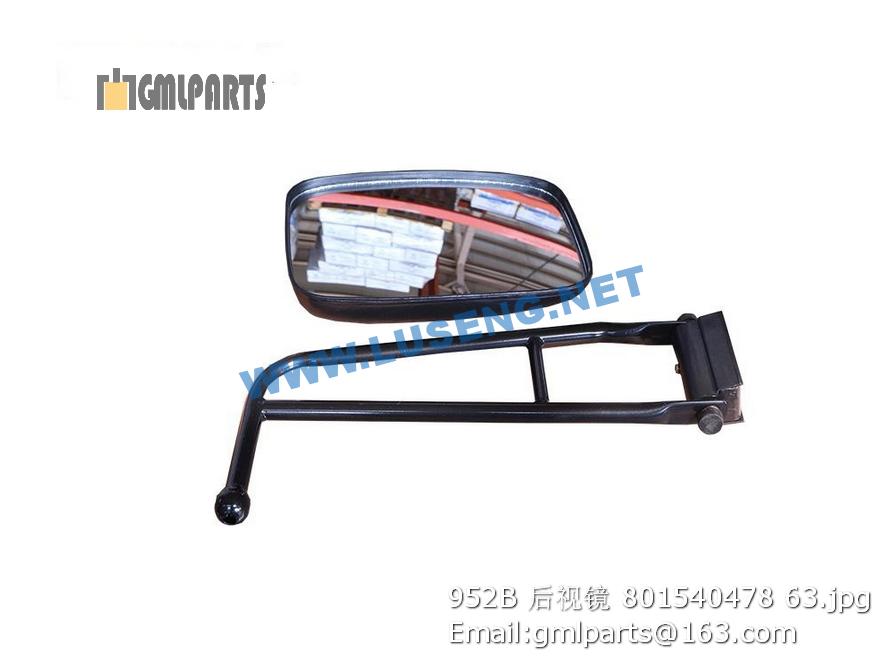

801540478 952B BACKLOOK MIRROR XCMG PARTS
序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 ▲ZL50G(CE)-060501 靠海绵 Backrest sponge 1 K03
2 ▲ZL50G(CE)-060502 座垫海绵 Seat sponge 1 Z03
3 ▲ZL50G(CE)-060503 左操作调角器 Left angle adjuster 1 丰田166角调
4 ▲ZL50G(CE)-060504 角器塑料卡罩 Cover 1 丰田166卡罩
5 ▲ZL50G(CE)-060505 带垫螺栓 Bolt with washer 3
6 ▲ZL50G(CE)-060506 橡胶套 Rubber wrap 1 FS11-08-03
7 ▲ZL50G(CE)-060507 上框焊接总成 Up frame 1 FS11-0100
8 ▲ZL50G(CE)-060508 中框焊接总成 Middle frame 1 FS11-0200
9 ▲ZL50G(CE)-060509 底框焊接总成 Base frame 1 FS11-0300
10 ▲ZL50G(CE)-060510 大底板 Big plate 1 FS16G-80000
11 ▲ZL50G(CE)-060511 升降总成 Lift framework 1 FS11-0400
12 ▲ZL50G(CE)-060512 滑轨总成 Guide track 1 FS16G-70000
13 ▲ZL50G(CE)-060513 外撑杆焊接总成 Outer support 1
14 ▲ZL50G(CE)-060514 内撑杆焊接总成 Inner support 1
15 ▲ZL50G(CE)-060515 齿板 Teeth board 2 HBSA0007E0
16 ▲ZL50G(CE)-060516 手柄 Handle 1 FS11-07-12
17 ▲ZL50G(CE)-060517 齿头 2 HBSA0008E0
18 ▲ZL50G(CE)-060518 滑头 2 HBSA0009E0
19 ▲ZL50G(CE)-060519 手柄扭簧 Handle spring 2 HBSA0010E0
20 ▲ZL50G(CE)-060520 扭簧 Spring 3 FS-06-10
21 ▲ZL50G(CE)-060521 扭簧 Spring 1 FS-06-09
22 ▲ZL50G(CE)-060522 φ12X28短销 Short pin 4 HBSA0011E0
23 ▲ZL50G(CE)-060523 台阶螺栓 Bolt 4 HBSA0012E0
24 ▲ZL50G(CE)-060524 调节组件 Adjuster assembly 1
25 ▲ZL50G(CE)-060525 反向调节手轮 Reverse adjuster 1 FS16
26 ▲ZL50G(CE)-060526 升降塑手柄 Lift handle 2 HBSA0016A2
27 ▲ZL50G(CE)-060527 F扣 F lock 28 HBJB0024A0
28 ▲ZL50G(CE)-060528 阻尼簧 Damp spring 1 FS16-06-08
29 ▲ZL50G(CE)-060529 滑块 Slip block 4 FS11-08-06
30 ▲ZL50G(CE)-060530 轴销2 Pin 2 FS11-07-08
31 ▲ZL50G(CE)-060531 调节螺杆 Adjust screw 1 FS11-06-02
32 ▲ZL50G(CE)-060532 拉簧杆 Spring pole 2 HBJA0402B0
33 ▲ZL50G(CE)-060533 11圈拉簧 Spring 2 FJ05-36
34 ▲ZL50G(CE)-060534 长台阶螺栓 Bolt 2 FJ02-05-05
35 ▲ZL50G(CE)-060535 φ10×39长销 Long pin 1 FS11-07-11
36 ▲ZL50G(CE)-060536 平面轴承 Bearing 1 8102型
37 ▲ZL50G(CE)-060537 M10螺母（无牙） Nut 4
38 ▲ZL50G(CE)-060538 M8X25内六角螺栓 Bolt 4
39 ▲ZL50G(CE)-060539 M8X16内六角螺栓 Bolt 4
40 ▲ZL50G(CE)-060540 M8防松螺母 Lock nut 4
41 ▲ZL50G(CE)-060541 T02头枕 Pillow 1
42 ▲ZL50G(CE)-060542 扶手支架组件 Armrest bracket 1 FF03F-00
43 ▲ZL50G(CE)-060543 扶手 Armrest 2 FF03
44 ▲ZL50G(CE)-060544 二点式安全带 Safety belt 1 HBSA0016A2
1 252604424 左后侧围下护板 Left Rear Panel 1
2 252604423 左侧碰锁盖板 Lock Cover 1
3 252901214 左后立柱护板 Left Rear Pillar 1
4 252901205 衣帽钩 Clothes Hook 2
5 252604426 左门护板总成 Left Door Panel 1
6 ▲252900987006 十字槽盘头螺钉 Screws 4 Q2140612
7 ▲252900987007 左门扣手盖板 Door Lock Cover 1
8 ▲252900987008 门护板装饰帽 Fastener Cap 4
9 252901212 左前立柱护板 Left Front Pillar 1
10 252604409 左前侧护板 Left Front Panel 1
11 252604407 顶棚 Ceiling 1
12 ▲252900987012 组合开关支架 Switch Bracket 1
13 ▲252900987013 顶棚后检修盖板 Ceiling Back Cover 1
14 ▲252900987014 喇叭罩 Speaker Cover 2
15 252901206 内视镜 Rearview mirror 1
16 ▲252900987016 顶棚前检修盖板 Ceiling Front Cover 1
17 252901208 顶灯 Head Lamp 1
18 ▲252900987018 十字槽盘头自攻螺钉 Tapping Screws 2 Q2715525
19 ▲252900987019 螺母 Nut 4 Q340B04
20 252901207 遮阳板 Sun Visors 1
21 ▲252900987021 十字槽盘头螺钉 Screws 6 Q2540520
22 ▲252900987022 十字槽盘头自攻螺钉 Tapping Screws 97 Q2714219
23 ▲252900987023 大装饰帽 Fastener Cap 30
24 ▲252900987024 大半圆头自攻螺钉 Tapping Screws 10 Q2735516
25 ▲252900987025 小装饰帽 Fastener Cap 31
26 252901213 右前立柱护板 Right Front Pillar 1
27 252604414 前围护板总成 Front Panel 1
28 252604410 右前侧护板 Right Front Panel 1
29 252901203 下门槛护板 Doorsill Panel 2
30 252901211 右门护板总成 Right Door Panel 1
31 ▲252900987031 右门扣手盖板 Door Lock Cover 1
32 252604425 右后侧护板 Right Rear Panel 1
33 ▲252900987033 侧维修盖板 Side Repair Cover 2
34 ▲252900987034 右侧碰锁盖板 Lock Cover 1
35 252901215 右后立柱护板 Right Rear Pillar 1
36 252604415 空调罩总成 Rear Wall 1
37 252901218 后横梁总成 Rear beam 1
