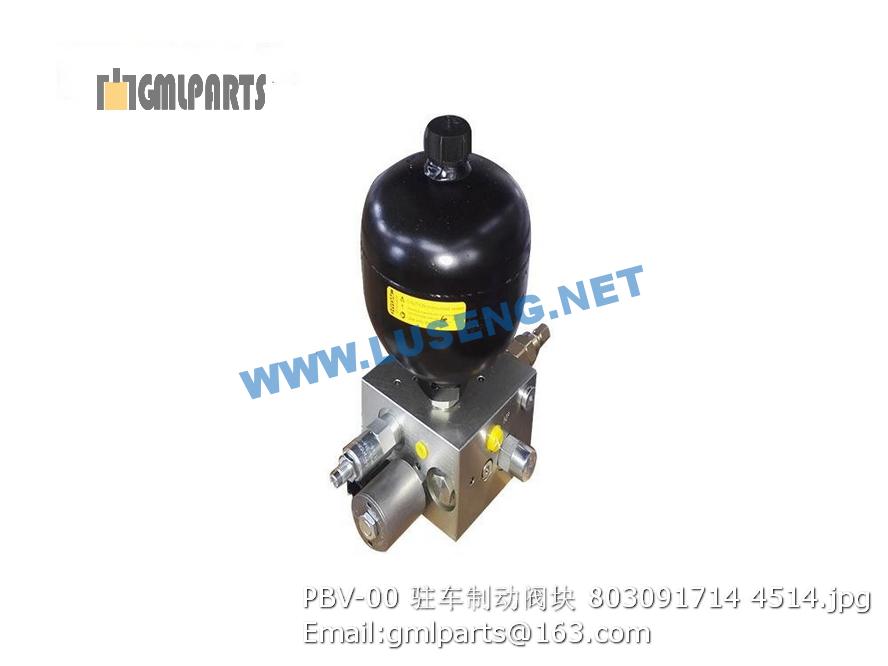

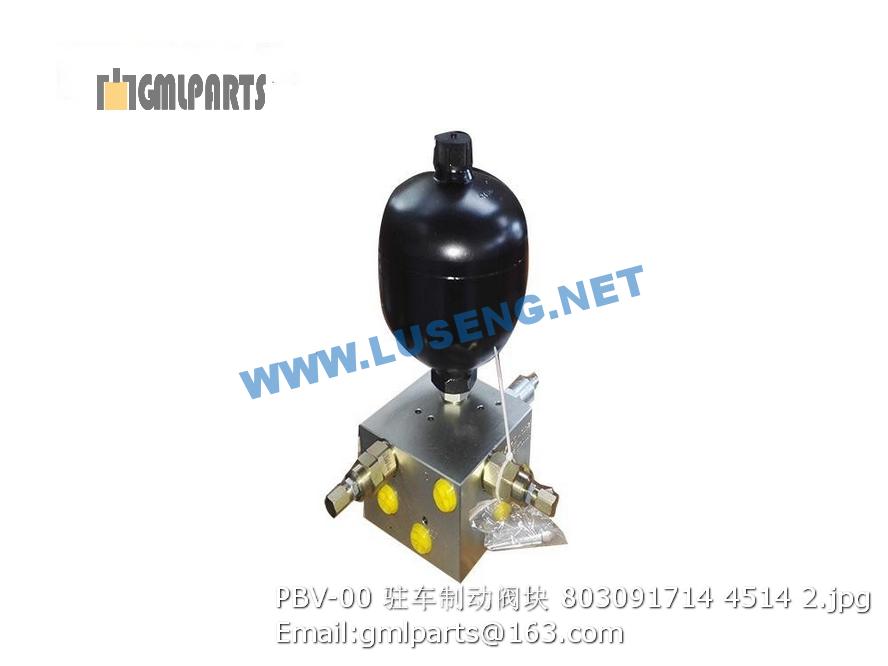

803091714 PBV-00 valve block xcmg

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 805000714 螺栓 M10×20 Blot 12 GB/T5783-2000
2 805300014 垫圈 10 Washer 24 GB/T93-1987
3 805300017 垫圈10 Washer 24 GB/T97.1-2002
4 226800232 左护板 Left-Board 1
5 226800229 发动机罩 Engine hood 1
6 226803280 铰链 Hinge 2
7 805000062 螺栓 M10×35 Bolt 12 GB/T 5783-2000
8 226800230 带孔安装销 Hole-pin 1
9 805600016 开口销4×40 Split-pin 2 GB/T 91-2000
10 ▲803004190-100110 减振垫 KLJZD-XG-003 2
11 803604727 发动机罩支撑系统 Engine cover support system 1
12 226800231 带孔安装销 Hole-pin 1
13 226800233 右护板 Right-board 1
14 228700313 小盖板 Cover board 1
15 805000394 螺栓M8×18 Bolt M8×18 2 GB/T5783-2000
16 805300010 垫圈 8 Washer 2
1 226801845 危险标记 Danger warning 1
2 819906087 油门控制 ACCELEROGRAPH CONTROL 1
3 228700143 电源总开关标示 INDICATION OF SWITCH 1 XS202J.17-3
4 239900241 注润滑脂处标志 Grease filling sign 1 F1011
5 227001495 铭牌 Name plate 1
5 227001567 铭牌 Name plate 1 XS262JPD
6 228700145 起吊标志 Lifting Sign 2
7 239900218 起吊处标记 HOOK decal 4 F1012
8 227001571 XS262J右标记 Right decal “XS262J’ 1 XS262JPD
8 227001395 XS262J右标记 Right decal “XS262J” 1
9 239900221 碰撞区危险标记 WARNING SIGN 2 A1002
10 226802649 刹车油量示警 Alarm for brake oil level 1
11 228600226 XCMG右标记 XCMG RIGHT LOGO 1
12 239900224 燃油加油标记 DECAL OF FUEL REFILLING 1 F1005
13 228600227 徐工集团大标记 XCMG MAIN LOGO 1
14 226800336 轮胎气压标记 Indication of tyre pressure 2 XS202J.17-3
15 228600228 XCMG左标记 XCMG LEFT LOGO 1
16 227001396 XS262J左标记 Left decal “XS262J” 1
16 227001572 XS262J左标记 Left decal “XS262J” 1 XS262JPD
17 228600230 徐工集团小标记 XCMG SMALL LOGO 1
18 227001573 XS262J小标记 decal “XS262J” 1 XS262JPD
18 227001397 XS262J小标记 decal “XS262J” 1
